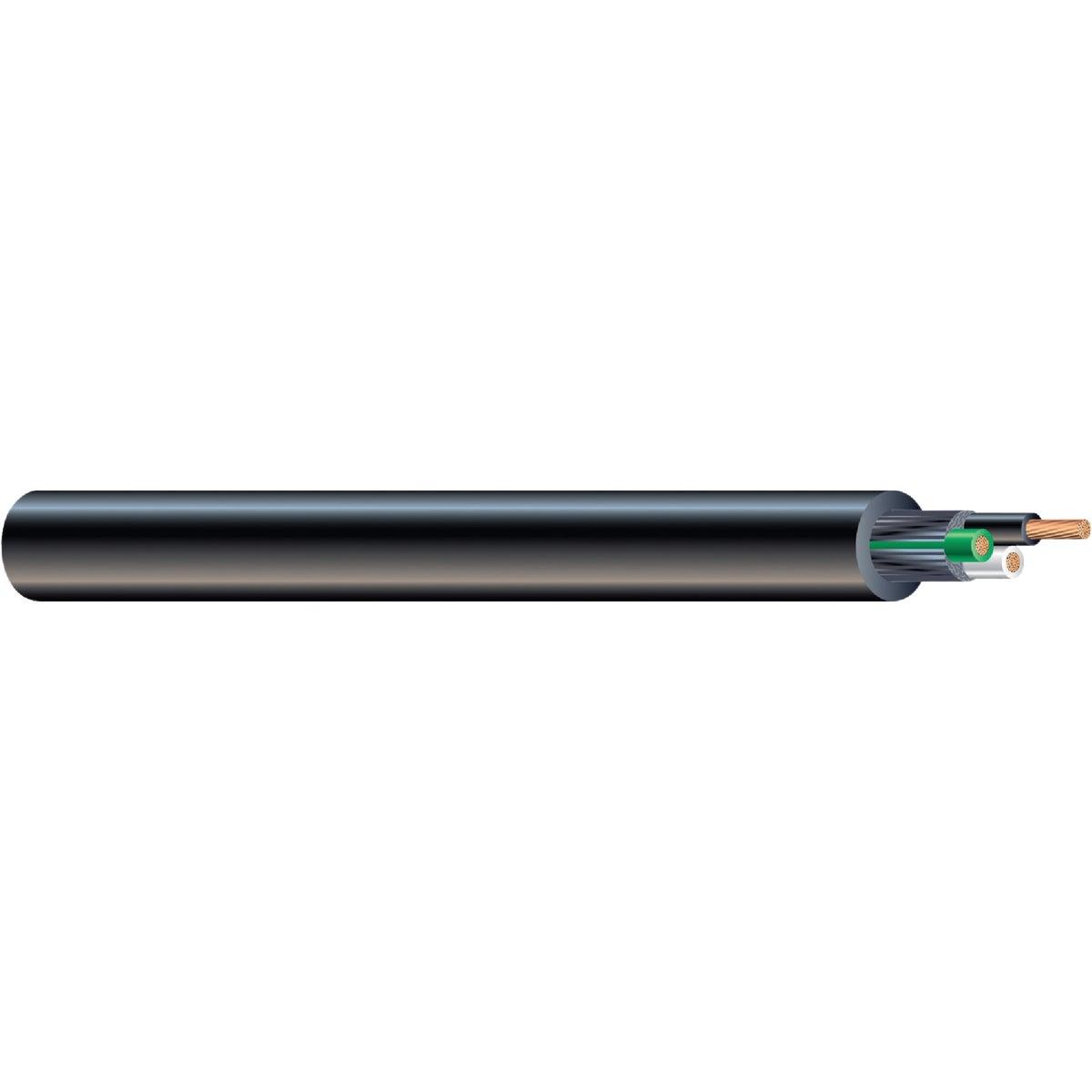

Southwire® Royal® 55809943 SOOW Flexible Cord, Spool Packaging, 600 V, (3) 14 AWG Copper Conductor, 100 ft L
Southwire Type SOOW Flexible Cords are permitted for use as specified by Article 400 and related articles of the National Electrical Code. Southwire Type SOOW Flexible Cords are designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications. RoHS compliant, UL listed and CSA certified for indoor and outdoor use.
-
BrandSouthwire®
-
UPC032886860683
-
Manufacturer Part Number55809943
-
CountryUSA
-
Temperature Rating-40 to 90 deg C
-
TypeSOOW Flexible
-
Conductor Size14 AWG
-
Conductor TypeCopper
-
Voltage Rating600 V
-
Amperage Rating18 A
-
Number of Conductors3
-
Insulation MaterialEPDM Rubber
-
Jacket ColorBlack
-
Jacket MaterialCPE
-
Strands41
-
Outside Diameter530 mil
-
Length100 ft
- Brand received (Cerrowire or Southwire) varies by zip code
- Southwire's Type SOOW Flexible Cords are manufactured using bare flexible stranded Class K copper conductors, with a heat, moisture and oil resistant EPDM rubber insulation
| Cross-Reference Number |
|---|
| 501905 |
-
Alternative Part Number16733796
-
UNSPSC26121517
-
IDEA Index ID16733796
-
Standards/ApprovalsASTM B174|CSA C22.2 No. 49|CSA FT2|Federal and Military Specification JC-580B|MSHA Standard|NEC 400|NEC 501.140 Class I Division 2|RoHS 2 European Directive 2011/65/EU|UL 62
-
Warranty1 Year
-
Specification Sheet
