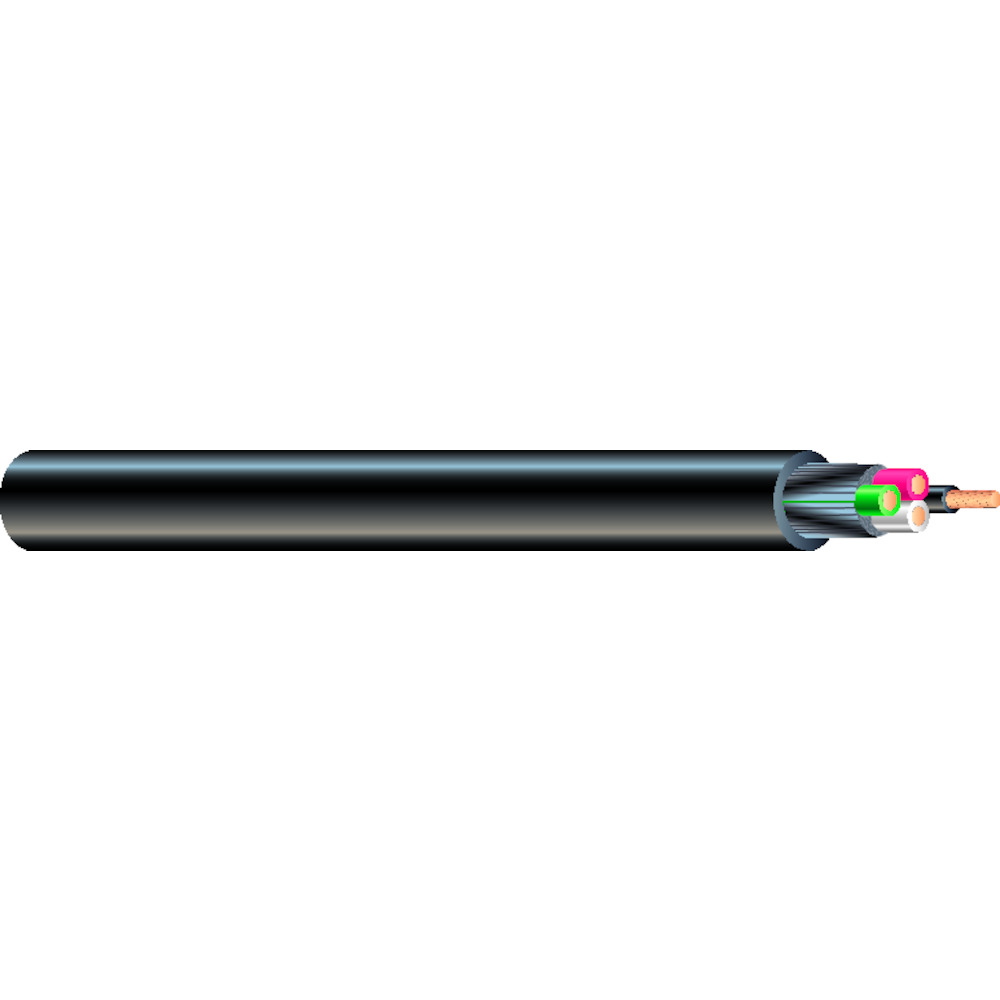

Southwire® Seoprene® 55046403 Type SEOOW Flexible Cord, 600 V AC, (4) 16 AWG Bare Stranded Copper Conductor, 250 ft L
Southwire® Seoprene® 55046403 Type SEOOW Flexible Cord, 600 VAC, (4) 16 AWG Bare Stranded Copper Conductor, 250 ft L
-
BrandSouthwire®
-
UPC032886039669
-
Manufacturer Part Number55046403
-
CountryUSA
-
Temperature Rating-50 to 105 deg C
-
TypeType SEOOW Flexible
-
Conductor Size16 AWG
-
Conductor TypeBare Stranded Copper
-
Voltage Rating600 V AC
-
Amperage Rating10 A
-
Number of Conductors4
-
Insulation MaterialTPE
-
Jacket ColorBlack/Green/Red/White
-
Jacket MaterialTPE
-
Strands26
-
Outside Diameter0.415 in
-
Length250 ft
- Insulation - Heat moisture and oil resistant TPE
- Filler - Non-wicking polypropylene fillers with a tissue-paper separator wrapped around the assembly
- THWN- Wet locations not to exceed 75 deg C or dry locations not to exceed 90 deg C or locations not to exceed 75 deg C when exposed to oil
- Stationary package design reduces pulling effort
- payoffs with striped neutrals for greater efficiency and less handling
- SIMpull NoLube jacket further reduces pulling tension
-
Alternative Part Number8871167
-
UNSPSC26121636
-
IDEA Index ID8871167
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 62|CSA Certified|MSHA Approved
-
Warranty1 Year
-
Specification Sheet
