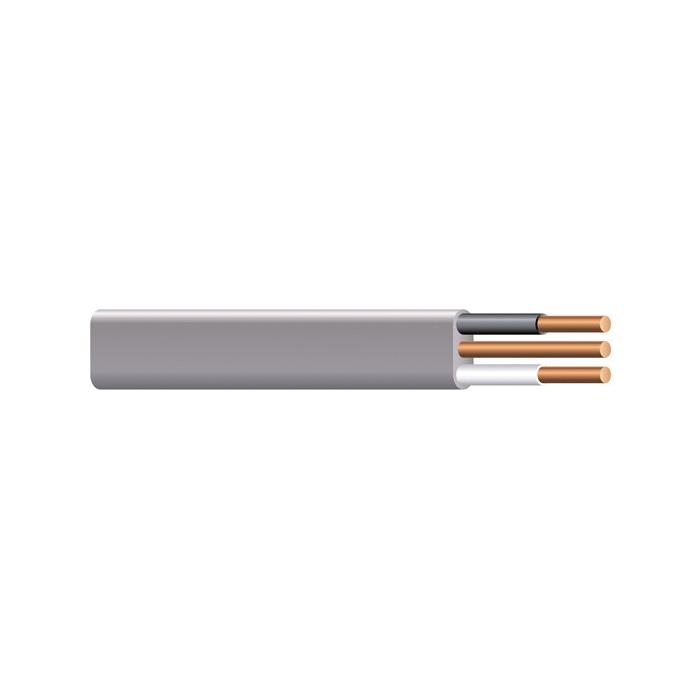

Southwire® 13056755 Type UF-B Underground Feeder Cable With Grounding Wire, 600 V AC, (2) 10 AWG Copper Conductor, 250 ft L
Southwire® copper UF-B cable is generally used as feeder to outside post lamps, pumps, and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90C (with ampacity limited to that for 60C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 volts.
-
BrandSouthwire®
-
UPC032886166105
-
Manufacturer Part Number13056755
-
CountryUSA
-
Temperature Rating90 deg C
-
TypeType UF-B
-
Conductor Size10 AWG
-
Conductor TypeCopper
-
Voltage Rating600 V AC
-
Amperage Rating30 A
-
Number of Conductors2
-
Insulation MaterialPVC
-
Jacket ColorGray
-
Jacket MaterialPVC
-
Strands1
-
Outside Diameter518 x 215 mil
-
Length250 ft
- Southwire® type uf-b cable is generally used as feeder to outside post lamps, pumps and other loads or apparatus fed from a distribution point in an existing building as specified in the national electrical code
- UF-B cable may be used underground, including direct burial
- UF-B can be used in applications permitted for NMC in section 334.10(B) of the national electrical Code, voltage rating for UF-B cable is 600 volts
- Southwire® type uf-b cable is manufactured as a 2 or 3-conductor cable, with or without a ground wire
- Copper conductors are annealed (soft) copper, solid or compressed stranded
- Phase conductors are polyvinyl chloride (PVC insulated, nylon jacketed, color coded for identification purposes)
- Jacketed with sunlight, moisture and fungus-resistant gray PVC
- Cable shall be UL listed type UF-B, suitable for operation at 600 volts or less in all installations as specified in the national electrical code
- Conductors shall be annealed copper manufactured by Southwire® company or approved equal
-
Alternative Part Number8876256
-
UNSPSC26121517
-
IDEA Index ID8876256
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83|UL 493|Federal Specification A-A-59544
-
Warranty1 Year
-
Specification Sheet
