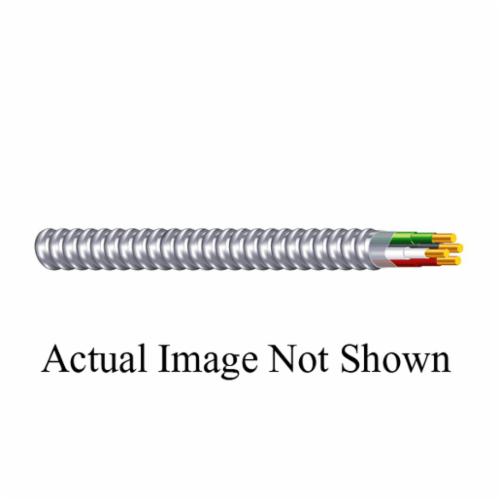

Southwire® Armorlite® 68584201 Type MC/THHN Building Wire, Coil Packaging, 600 V AC, (3) 10 AWG Solid Copper Conductor, 250 ft L, Black/Green/Red/White
Southwire Armorlite Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.
-
BrandSouthwire®
-
UPC032886346163
-
Manufacturer Part Number68584201
-
CountryUSA
-
Temperature Rating75/90 deg C
-
TypeType MC/THHN
-
Conductor Size10 AWG
-
Conductor TypeSolid Copper
-
Voltage Rating600 V AC
-
Amperage Rating30 A
-
Number of Conductors3
-
Insulation MaterialPVC
-
Jacket ColorBlack/Green/Red/White
-
Jacket MaterialAluminum
-
Strands1
-
Outside Diameter0.57985 in
-
Length250 ft
- Concealed or exposed installations
- Installation in cable tray and approved raceways
- Cabled together and a binder tape bearing the print legend is wrapped around the assembly
- Aluminum interlocking armor is applied over the assembly
- Reduces installation costs up to 50 Percent over pipe and wire
- Lightweight aluminum armor as much as 45 Percent lighter than steel mc cable
- Cable reverse wound on reel for ease of pulling and installation
- Anti-short bushings are not required for use with mc cable per the NEC and UL
-
Alternative Part Number8879620
-
UNSPSC26121517
-
IDEA Index ID8879620
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83/1569/1685|Federal Specification A-A59544|FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test|NEC®, Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
