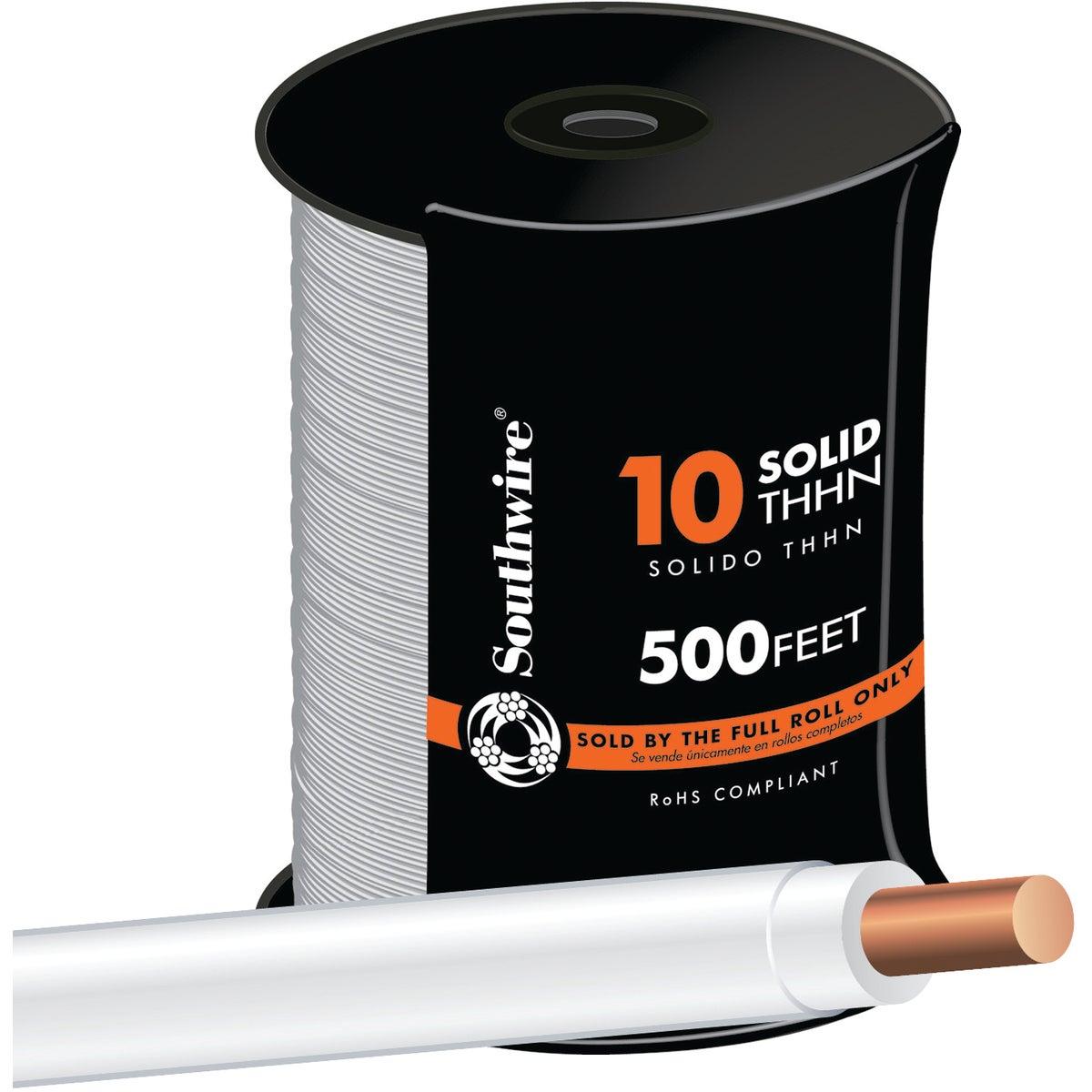

Southwire® SIMpull THHN® 11596457 Type THHN/THWN/AWM Building Wire, Spool Packaging, 600 V, (1) 10 AWG Solid Copper Conductor, 500 ft L, White
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
-
BrandSouthwire®
-
UPC032886845611
-
Manufacturer Part Number11596457
-
CountryUSA
-
Temperature Rating90 deg C
-
TypeType THHN/THWN/AWM
-
Conductor Size10 AWG
-
Conductor TypeSolid Copper
-
Voltage Rating600 V
-
Amperage Rating30 A
-
Number of Conductors1
-
Insulation Material20 mil PVC/Thermoplastic
-
Jacket ColorWhite
-
Jacket Material4 mil Nylon
-
Strands1
-
Outside Diameter149 mil
-
Length500 ft
- Combination unilay stranding

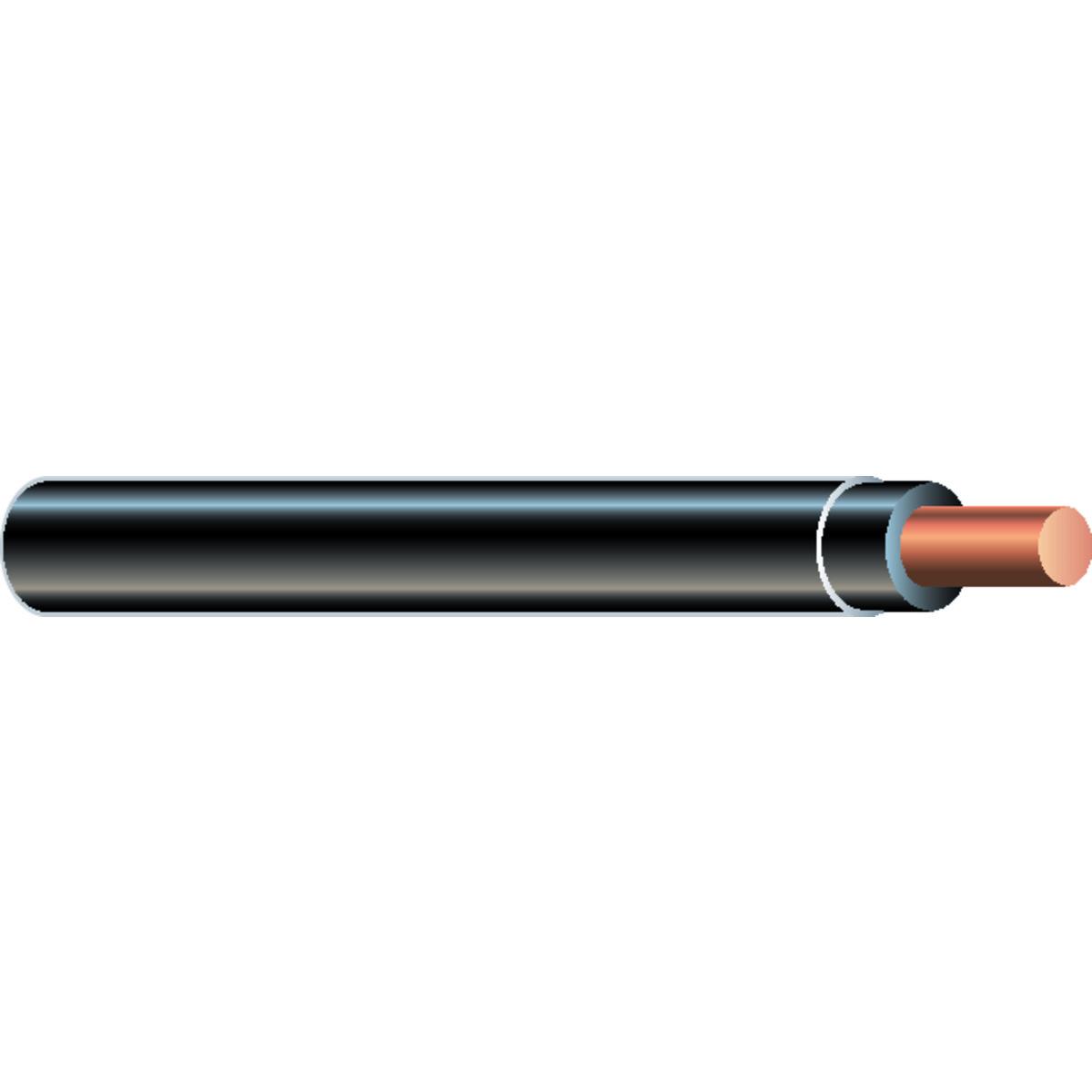

- The wire is covered with a tough heat and moisture-resistant PVC insulation with an overall nylon jacket
- THWN wet locations not to exceed 75 deg C or dry location not to exceed 90 deg C or location not to exceed 75 deg C when exposed to oil
- SIMpull® technology only in SIMpull® barrel or CoilPAK® configuration
- THWN wet locations not to exceed 75 deg C or dry location not to exceed 90 deg C or location not to exceed 75 deg C when exposed to oil
- SIMpull® technology only in SIMpull® barrel or CoilPAK® configuration
-
Alternative Part Number16733621
-
UNSPSC26121517
-
IDEA Index ID16733621
-
Standards/ApprovalsASTM B3|CSA C22.2 No. 75|cULus Listed|Federal Specification A-A-59544|FT1 Certified|National Electrical Code NFPA 70|NOM-ANCE Certified|REACH Compliant|RoHS Compliant|UL 83/758|VW-1 Standard
-
Warranty1 Year
-
Specification Sheet
