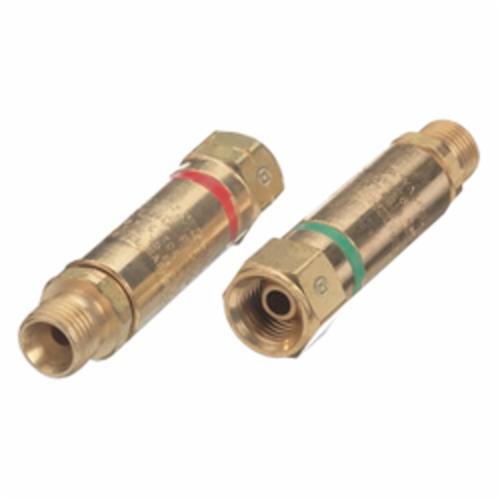

Western Enterprises® FA-30 Torch Style Flashback Arrestor Set, Cylinder Gas Oxygen/Fuel Gas, Brass
Welders rely on Westerns advanced flashback arrestors to help prevent serious incidents caused by reverse gas flows or flashbacks. Westerns flashback arrestors are designed to stop flashbacks by preventing ignition of mixed gases and to protect equipment such as hoses, regulators and cylinders.
-
BrandWestern Enterprises®
-
UPC698944012267
-
Manufacturer Part NumberFA-30
-
CountryUSA
-
MaterialBrass
-
ColorGreen/Red
-
TypeTorch Style
-
Cylinder GasOxygen/Fuel Gas
- 316 stainless steel flame trap
- Maximum operating pressures are 15 psi for acetylene, 22 psi for other fuel gases and 125 psi for oxygen
- Designed to stop flashbacks by preventing ignition of mixed gases and to protect equipment such as hoses, regulators and cylinders
- Color-coded for gas service to provide added safety
- Internal check valves designed to prevent reverse flow and accidental mixing of oxygen and fuel gases
- Rated capacity of 40 SCFH with a 5 psig pressure drop
- Torch and regulator models provide downstream and upstream protection
- 10 in maximum cutting capacity
- Reusable manual resetting not required
- Complete installation, testing and operating instructions included
- Safe-Mate models feature quick connect design for quick and easy installation and disconnection
- 9/16-18 Connection Thread
- 1/4 in Inlet and Outlet Connection
-
Alternative Part NumberFA30
-
UNSPSC23271717
-
Standards/ApprovalsUL Listed|PROP65
