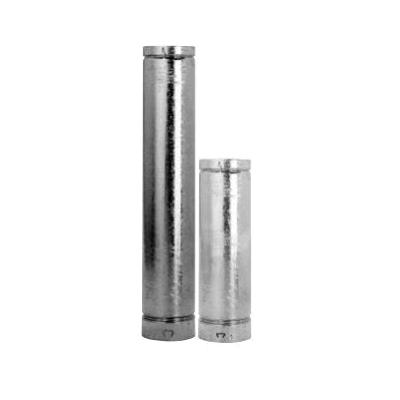

Selkirk® by Duravent LockTab® 106060 RV Series Type B Small Diameter Double Wall Round Gas Vent Pipe, Steel, 6 in Dia x 5 ft L, Galvanized, Domestic
Our non-positional lock system on the Selkirk® by Duravent RV Gas Vent is the best lock system on the market today. The incorporation of the LockTab® feature simply improves our lock system by adding flexibility and meeting market needs.
-
BrandSelkirk® by Duravent
-
UPC053713126499
-
Manufacturer Part Number106060
-
CountryUSA
-
FinishGalvanized
-
Thickness0.012 in
-
MaterialSteel
-
TypeType B Small Diameter Double Wall Round
-
SeriesRV Series
-
Diameter6 in
-
Domestic/ImportDomestic
-
Length5 ft
- The locktab is located on the female end of the gas vent
- Assemble the gas vent sections
- The locktab is then depressed with a thumb or blunt object such as a screwdriver into the lock channel of the male end
- To disengage the locktab, pry it up by using a screwdriver or knife blade
- The RV line of Selkirk round vent pipe and fittings is designed for use on approved gas appliances in residential and light commercial and industrial applications
- Round vents for large appliances will be found in the QC section which follows
- The Outside Diameter of RV is approximately 1/2 in larger
- Outer material is 28 ga galvanized steel and inner liner is aluminum
- Easy to assemble and can be combined to obtain the required installation height
- Sectional overlap of 1.5 in and hence net assembled length is 1.5 in less than listed lengths
- Inner liner of aluminum alloy 1100, 3003, 3104, 3105 or 5010
- Outer wall of UL recognized G90 galvanized steel
| Cross-Reference Number |
|---|
| 441267 |
-
Alternative Part Number6RV-5
-
UNSPSC40101506
-
Standards/ApprovalsNFPA 211/54|UL 441|ULC S605
-
WarrantyLimited Lifetime
-
