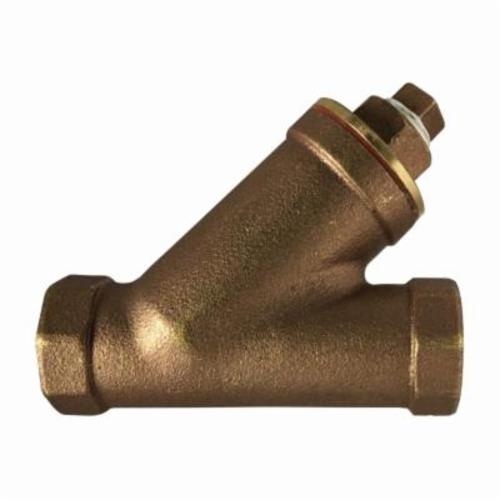

Midland Industries 940-525 Y-Line Strainer, 1 in Nominal, 4.09 in OAL, FNPT Connection, PTFE Softgoods, Import
Midland Industries 940-525 Y-Line Strainer, 1 in Nominal, 4.09 in OAL, FNPT Connection, PTFE Softgoods, Import
-
BrandMidland Industries
-
Manufacturer Part Number940-525
-
CountryUSA
-
Connection TypeFNPT
-
Nominal Size1 in
-
Softgoods MaterialPTFE
-
Domestic/ImportImport
-
Blow-Off Size1/2 in NPT
-
Body MaterialForged Brass
-
Overall Height2.66 in
-
Overall Length4.09 in
- Screwed cap is threaded and gasketed
- Tapped drain plug opening in cap
- Self-cleaning can be accomplished by opening the valve or plug connected to the blow-off outlet
- Not lead free
- Brass bonnet and end cap, stainless steel strainer, PTFE spring seal
-
UNSPSC40142505
-
Package Description1/PK
-
Standards/ApprovalsANSI B1.20.1
