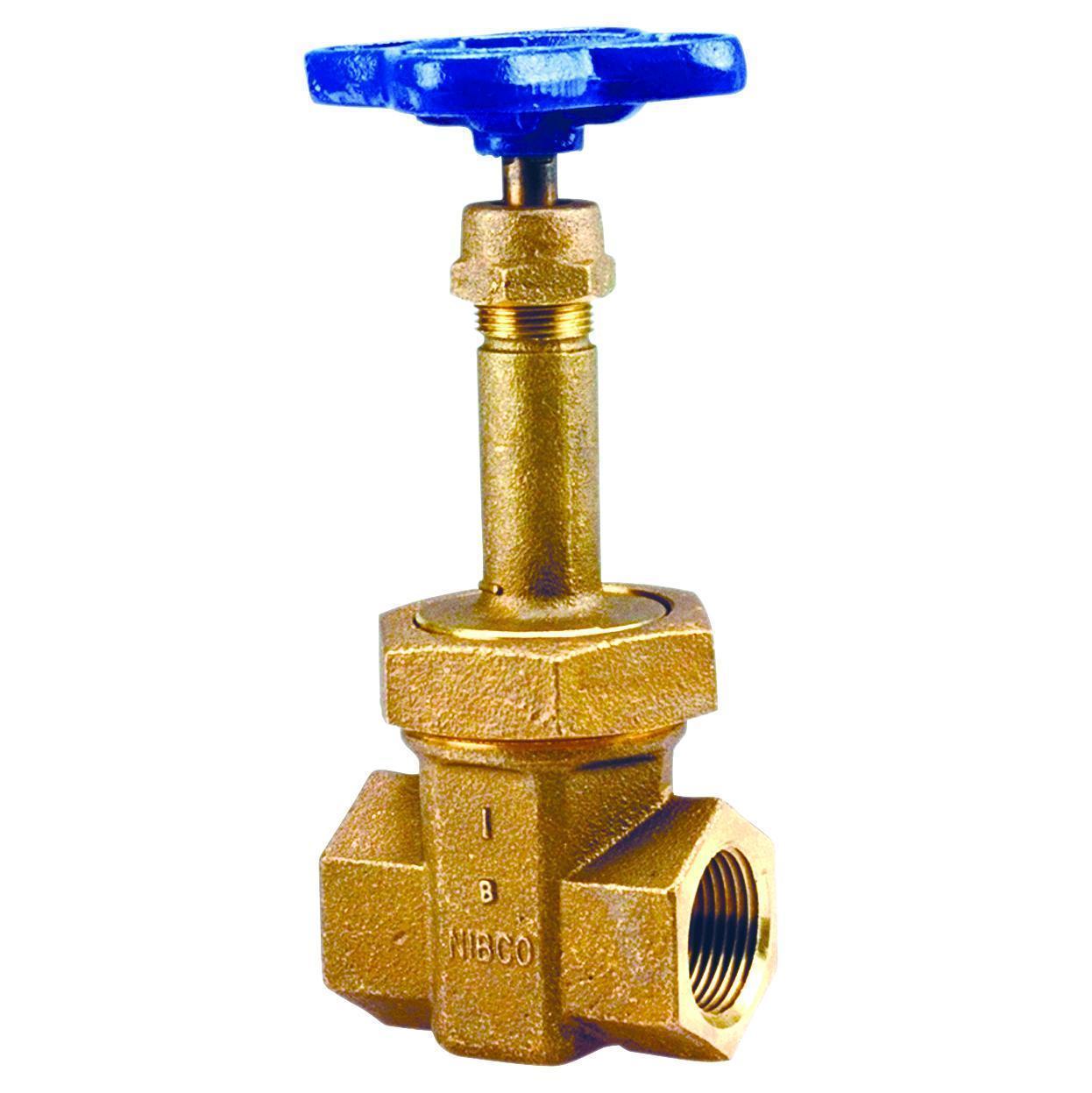

NIBCO® NL2H00C T-174-A Block Pattern Gate Valve, 1-1/2 in Nominal, Threaded End Style, 300 lb, Bronze Body, Handwheel Actuator, Domestic
The NIBCO® bronze gate valve may be used in commercial and industrial applications, HVAC, specifically for medium to high pressure steam, and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO 5-year 125% limited warranty.
-
BrandNIBCO®
-
UPC039923620248
-
Manufacturer Part NumberNL2H00C
-
CountryUSA
-
Pressure Class300 lb
-
Pressure Rating600 psi
-
Top to Inlet Center10-1/4 in
-
MediaWater
-
Trim MaterialSilicon Bronze
-
TypeBlock Pattern
-
Actuator TypeHandwheel
-
Nominal Size1-1/2 in
-
SeriesT-174-A
-
Inlet to Outlet Length3.38 in
-
Softgoods MaterialAramid Fiber
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleThreaded
- 300 psi/20.7 bar saturated steam to 421F/216C
- 600 psi/41.4 bar non-shock cold working pressure
- Rising stem
- Alloy solid wedge
- Class 300 threaded end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Dezincification resistant
- Female threaded ends allow for ease of installation
- The copper nickel alloy solid wedge, integral seats and bi-directional service make the gate valve a good choice for higher pressures, temperature and corrosive services
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | NT174AJ |
-
UNSPSC40141613
-
Package DescriptionEACH
-
Standards/ApprovalsMSS SP-80|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty5 years Limited
-
SDS
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
