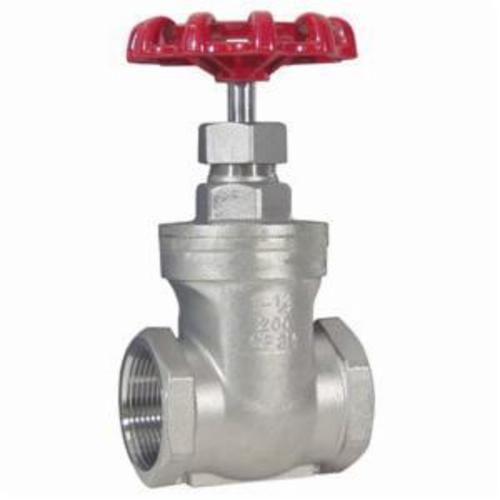

Dixon® SSGV100 Gate Valve, 1 in, FNPT, 316 Stainless Steel Body, Handwheel Actuator
Dixon® SSGV100 Gate Valve, 1 in, FNPT, 316 Stainless Steel Body, Iron Handwheel Actuator
-
BrandDixon®
-
UPC697464444862
-
Manufacturer Part NumberSSGV100
-
CountryUSA
-
Pressure Rating200 psi
-
MediaNon-Shock Cold Water, Oil and Gas
-
Actuator TypeHandwheel
-
Nominal Size1 in
-
Body Material316 Stainless Steel
-
End StyleFNPT
- For fully open or fully closed service
- For minimum fluid entrapment in the line
- For relatively infrequent operation
- 100% factory tested
- Adjustable packing nut
- Solid wedge disc
- Integral seat
- Threaded Bonnet
- Non-Rising stem
- Iron Handwheel
-
UNSPSC40141613
-
Package Description1/BX
-
