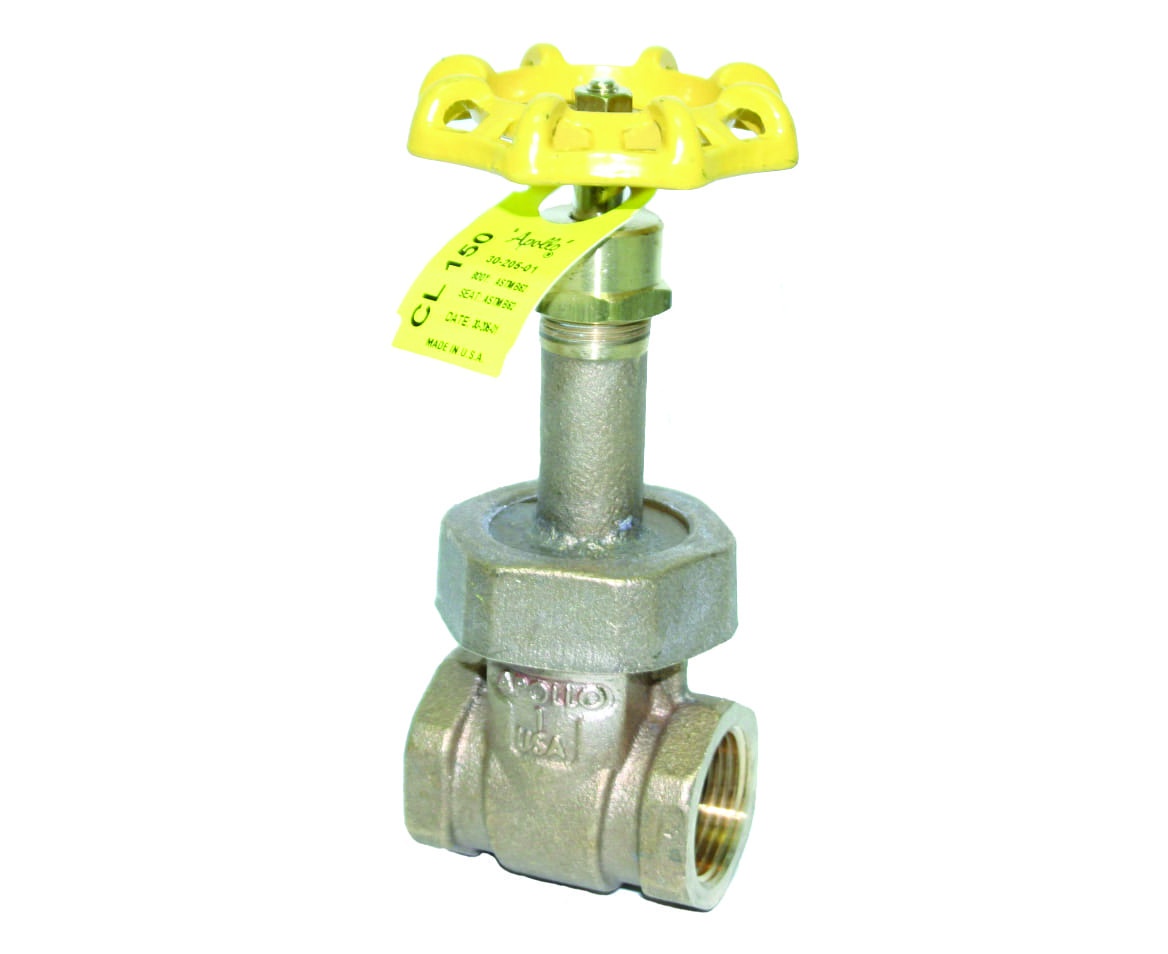

Apollo™ 3020501 107T Rising Stem Gate Valve, 1 in Nominal, NPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic
The Apollo™ Model 107T (30 Series) Gate Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
-
BrandApollo™
-
UPC670750607394
-
Manufacturer Part Number3020501
-
CountryUSA
-
Temperature Rating-20 to 406 deg F
-
Port TypeFull
-
Pressure Class150 lb
-
Pressure Rating300 psi CWP
-
Flow Rate72.3 gpm
-
Top to Inlet Center6.71 in Open
-
Trim MaterialBrass/Bronze
-
TypeRising Stem
-
Actuator TypeHandwheel
-
Nominal Size1 in
-
Series107T
-
Dimensions2.45 in L
-
Softgoods MaterialGrafoil
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleNPT
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Dezincification resistant
- 100% factory tested
- Union bonnet
- Malleable iron rugged hand wheel
- Brass stem/bronze disc wedge
- Grafoil packing
-
Alternative Part Number107T1
-
UNSPSC40141613
-
Package Description1/BX
-
Standards/ApprovalsARRA Compliant|ASME B1.20.1|ASTM B62 Body/Disc Wedge|ASTM B21 UNS C46400 Stem|CRN 0C14667.5|MSS SP-80|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Warranty Information
-
Specification Sheet
-
Owners/User Manual
