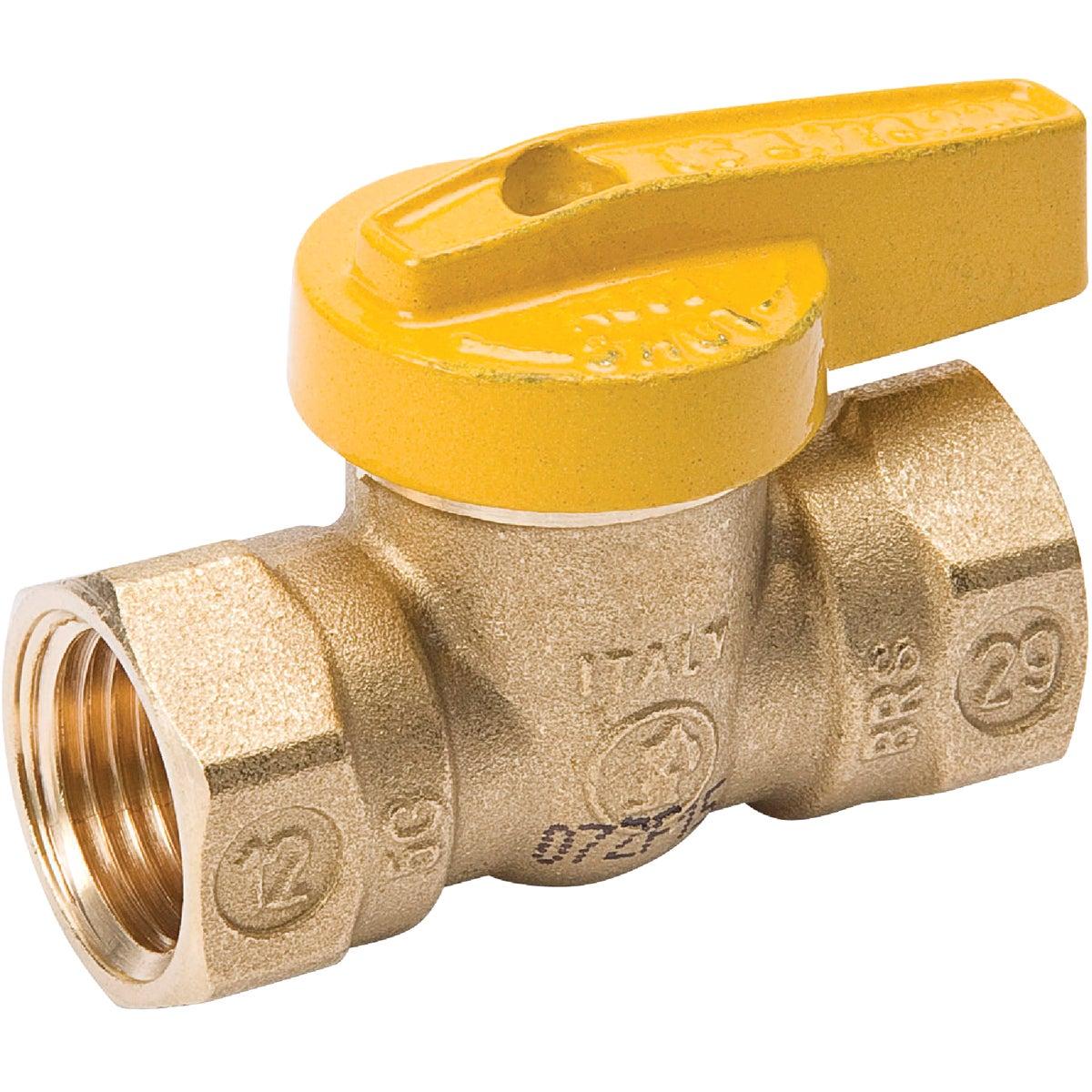

B&K® 110-522 ProLine™ 1-Piece Gas Cock Quarter-Turn Ball Valve, 3/8 in Nominal, FNPT End Style, Forged Brass Body, Import
The BandK™ Valves are precisely engineered for outstanding service, long life and reliable performance. These valves offer easy operation, superior flow and include a wide range of water/oil/gas (WOG) valves, gas valves and water valves constructed from forged brass, CPVC and PVC materials. Valves are arranged in series reflecting the valves performance characteristics, connection types and handle style. BandK™ valves are created to meet UPC and ICC plumbing code requirements and are certified to meet NSF 61 with many available in Lead free compliant versions.
-
BrandB&K®
-
UPC032888105225
-
Manufacturer Part Number110-522
-
CountryUSA
-
Temperature Rating-20 to 300 deg F
-
FinishPolished Chrome
-
Pressure Rating200 psi
-
Type1-Piece Gas Cock
-
Actuator TypeShort Lever
-
Nominal Size3/8 in
-
SeriesProLine™
-
Ball MaterialBrass
-
Domestic/ImportImport
-
Body MaterialForged Brass
-
End StyleFNPT
- Quarter-turn lever handle for positive on/off operation
- Coated aluminum handle for corrosion and solvent resistance
- Multi-directional flow
- One-piece body for leak resistance and long valve life
| Cross-Reference Number |
|---|
| 427345 |
-
UNSPSC40141607
-
Package Description10/BX
-
Standards/ApprovalsANSI Z21.15|ANSI/ASME B16.44|ANSI B1.20.1|CSA Certified|UL Listed
-
