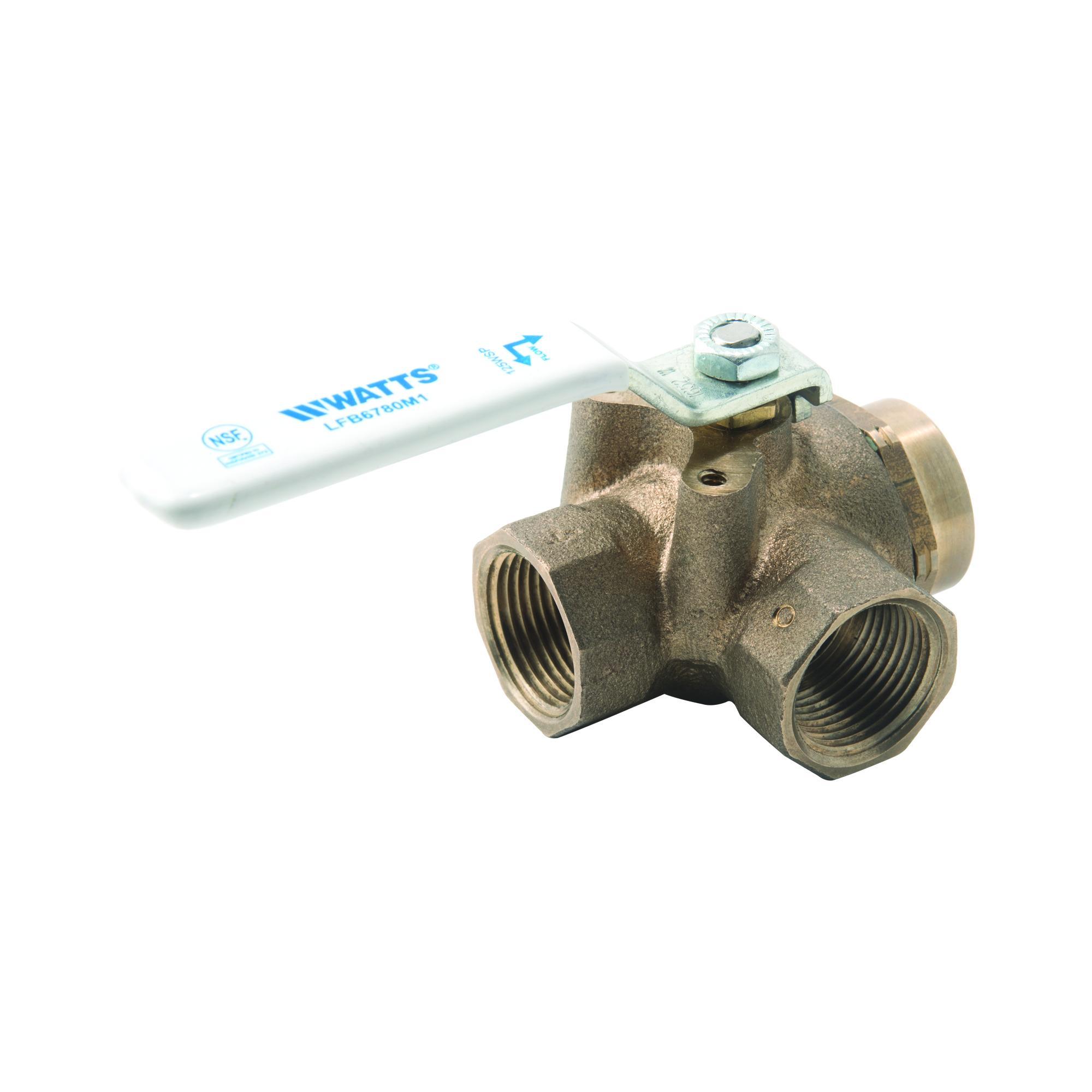

WATTS® 0555224 LFB6780M1 2-Piece Diverter Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Full Port, PTFE Softgoods
This 2 inch lead free two-piece full port diverter ball valve with threaded end connections is used in commercial and industrial applications designed to divert a full range of liquids and gases. The full port orifice ensures minimal pressure drop, while PTFE seat and chrome plated lead free brass ball provide lasting service. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) at 50 psi (3.5 bar). The maximum working pressure is 400 psi (28 bar) WOG non-shock at 100 degrees F (38 degrees C), 125 psi (8.6 bar) WSP.
-
BrandWATTS®
-
UPC098268433371
-
Manufacturer Part Number0555224
-
CountryUSA|Canada
-
Temperature Rating0 to 350 deg F
-
Port TypeFull
-
Pressure Rating400 psi WOG
-
Flow Rate91 gpm
-
Top to Inlet Center4 in
-
MediaGas/Liquids
-
Trim MaterialBrass/PTFE
-
Type2-Piece
-
Actuator TypeLever Handle
-
Nominal Size2 in
-
SeriesLFB6780M1
-
Ball MaterialBrass
-
Inlet to Outlet Length5-3/8 in
-
Softgoods MaterialPTFE
-
Body MaterialBronze
-
Orifice Size2 in
-
End StyleFNPT
- 400 psi (28 bar) WOG non-shock at 100 deg F (38 deg C)
- Blowout proof pressure retaining stem
- Threaded NPT end connections
- Low operating torque
- Each valve factory tested
- Virgin PTFE stem packing seal
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 400 Psi (28 bar) WOG non-shock at 100 deg F (38 deg C)
-
Alternative Part NumberLFB6780M1 2
-
UNSPSC40141607
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
WarrantyLimited
-
Specification Sheet
