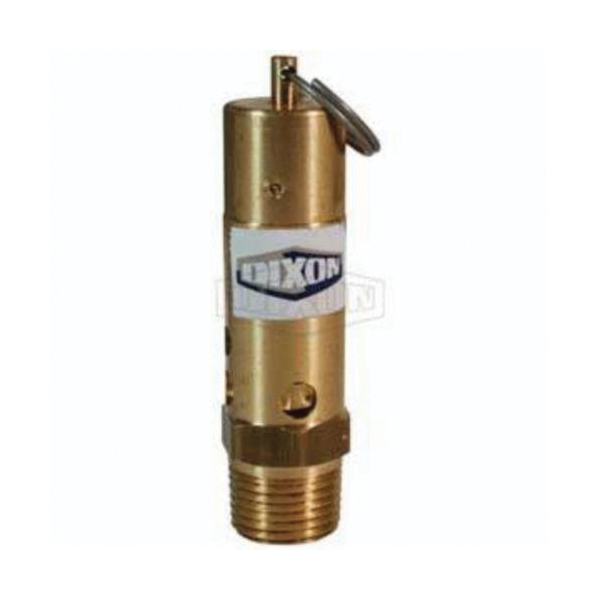

Dixon® SV150HD Heavy Duty Safety Pop-Off Valve, 1/2 in, MNPT, 300 scfm, Brass Body
Dixon® SV150HD Heavy Duty Safety Pop-Off Valve, 1/2 in, MNPT, 300 scfm, Brass Body
-
BrandDixon®
-
UPC089109730582
-
Manufacturer Part NumberSV150HD
-
CountryUSA
-
Temperature Rating400 deg F
-
Flow Rate300 scfm
-
TypeHeavy Duty
-
Nominal Size1/2 in
-
Domestic/ImportDomestic
-
Body MaterialBrass
-
End StyleMNPT
- All brass construction with stainless steel ball on a precision machined brass seat
- High capacity
- 150 psi pressure setting
- Pressure rating given at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40141604
-
Package Description10/BX
-
Standards/ApprovalsASME Specified|CSA B51-03
-
WarrantyLimited
-
