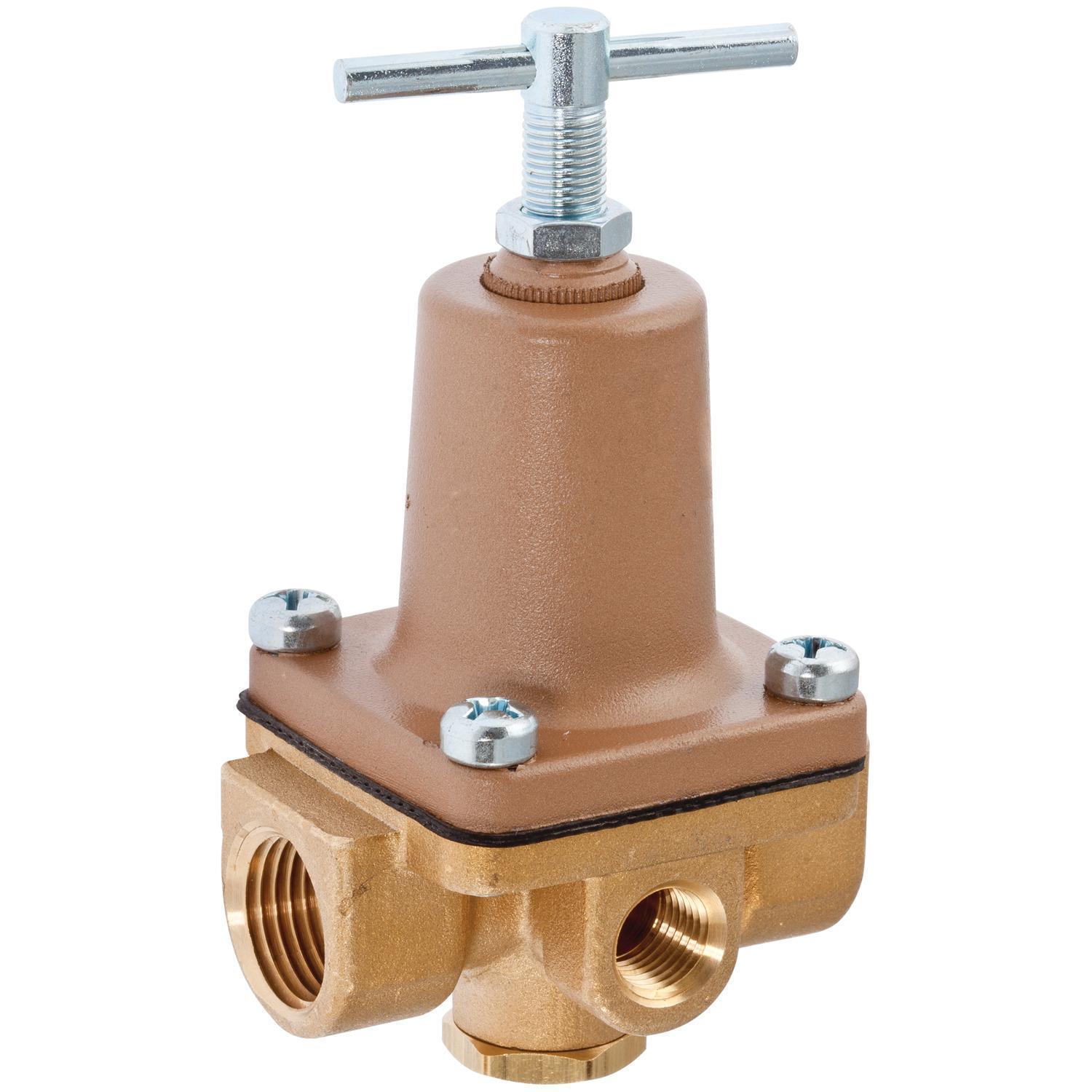

WATTS® 0009827 LF263A 3-Way Small Pressure Regulator, 3/8 in Nominal, FNPT End Style, 300 psi Pressure, Brass Body
This 3/8 inch lead free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing, paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 3 to 50 psi (0.2 to 3.4 bar) and is factory set at 15 psi (1.0 bar).
-
BrandWATTS®
-
UPC098268428841
-
Manufacturer Part Number0009827
-
CountryUSA
-
Temperature Rating0 to 140 deg F
-
Pressure Rating300 psi
-
MediaWater
-
Trim MaterialStainless Steel
-
Type3-Way Small
-
Actuator TypeT-Handle
-
Nominal Size3/8 in
-
SeriesLF263A
-
Dimensions2-1/8 in L x 4-3/8 in H
-
Softgoods MaterialBuna-N® Diaphragm
-
Body MaterialBrass
-
End StyleFNPT
- Tee handle adjustment
- NPT threaded female inlet and outlet connections
- Maximum working pressure is 300 psi (21 bar)
- Rugged forged lead free brass body
- Oversized orifice
- The wetted surface of this product contacted by consumable water contains less than 0.25 Percent of lead by weight
- Temperature range is 0 to 140 deg F (-18 to 60 deg C)
-
Alternative Part NumberLF263A 3-50 3/8
-
UNSPSC40141652
-
Package DescriptionEACH
-
Standards/ApprovalsNSF/ANSI 61-G|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 year
-
Specification Sheet
