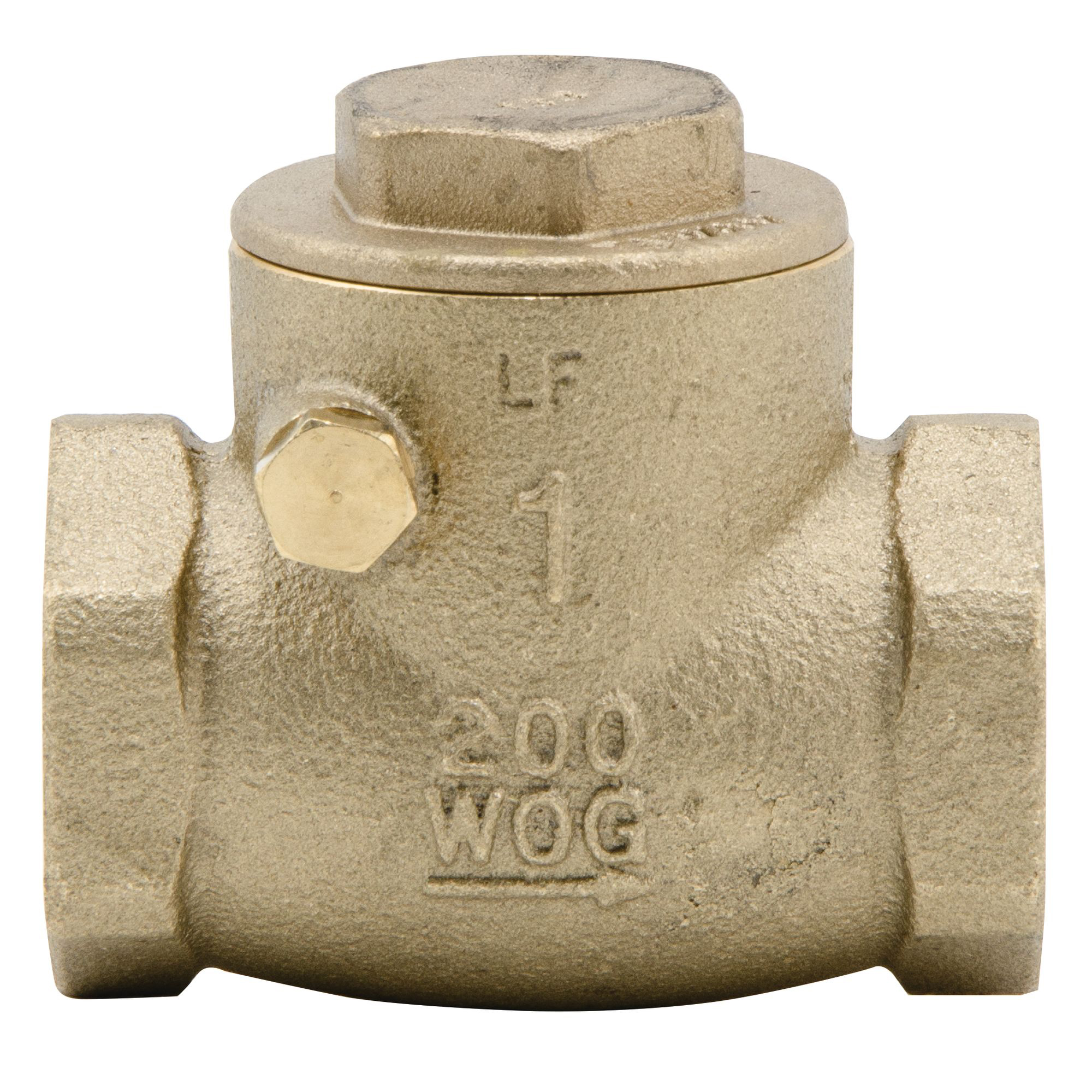

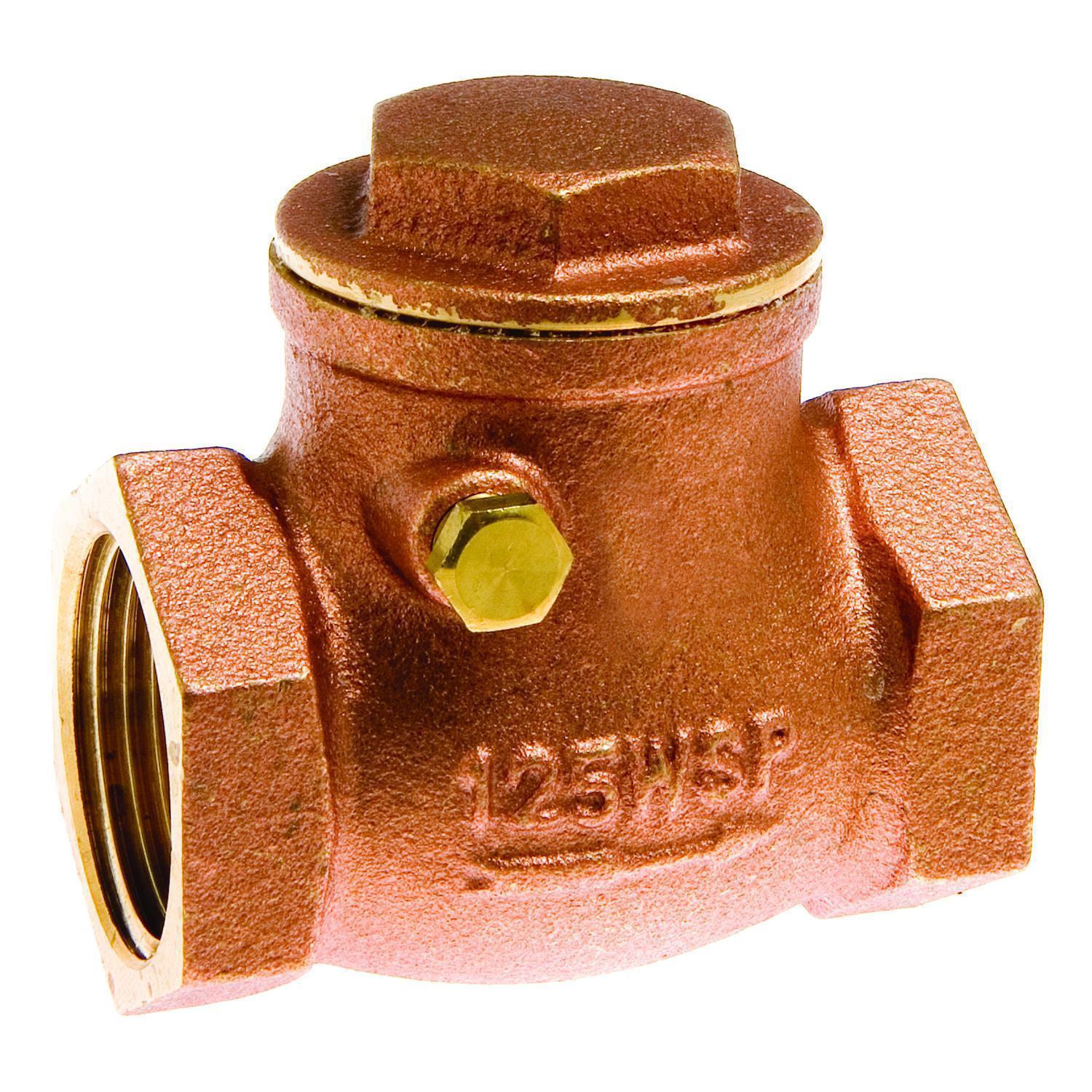

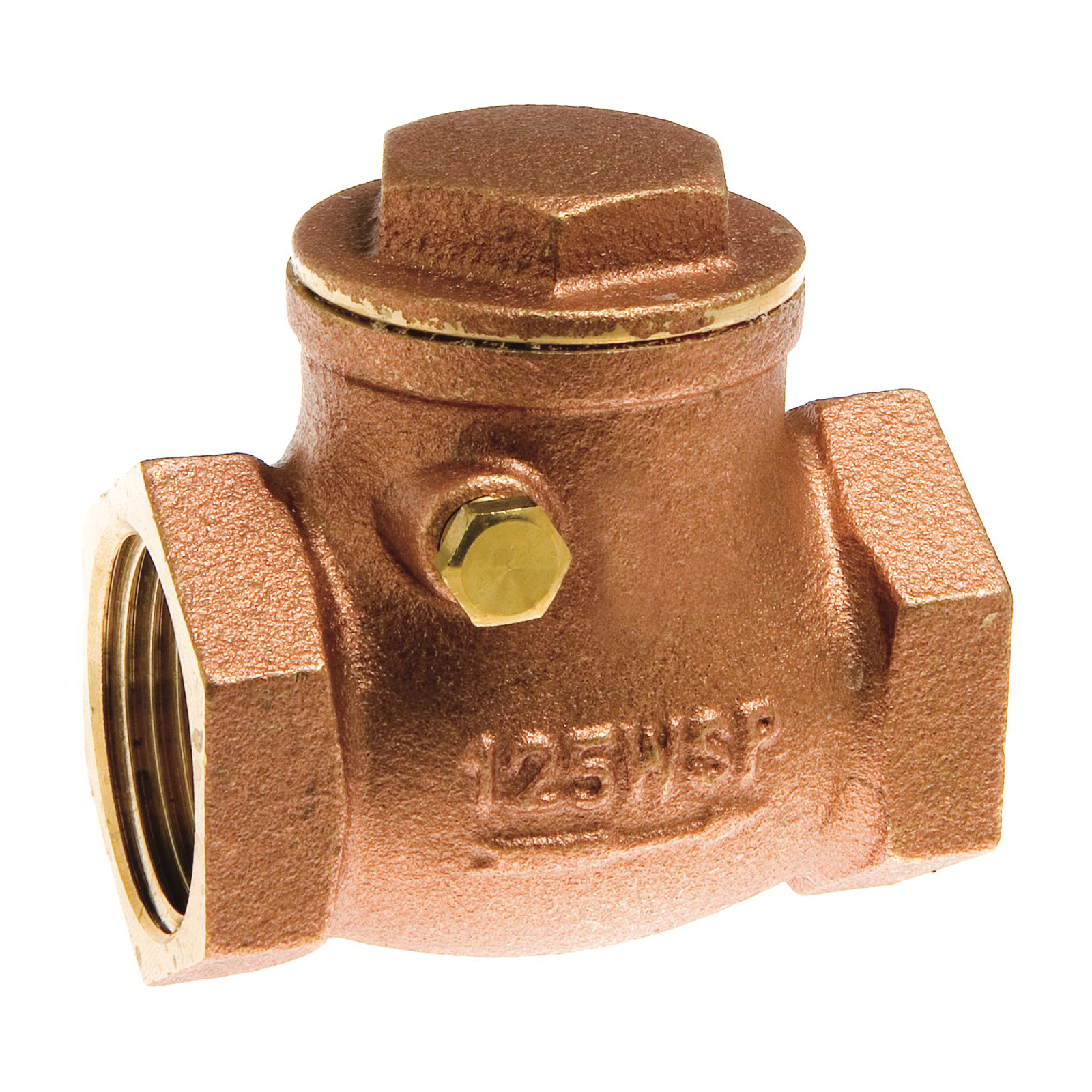

WATTS® 0123496 Swing Check Valve, 1 in Nominal, Threaded x Solder End Style, Low Lead Compliance: Yes, Metal, Brass Body, Import
This 1 inch lead free swing check valve is used to prevent reverse flow in water and steam applications. It features a lead free brass body with NPT threaded end connections, lead free brass bonnet, PTFE gasket, lead free brass pin, screw and seat. This valve has metal-to-metal seating and provides low pressure drop and automatic closure when fluid flow is stopped. The working set pressure rating is 125 psi (8.6 bar) and maximum pressure is 200 psi (13.8 bar) WOG non-shock.
-
BrandWATTS®
-
UPC098268697070
-
Manufacturer Part Number0123496
-
CountryUSA
-
Low Lead ComplianceYes
-
Pressure Rating200 psi
-
Top to Inlet Center1-23/32 in
-
Trim MaterialBrass
-
Nominal Size1 in
-
SeriesLFWCV
-
Inlet to Outlet Length2-5/8 in
-
Softgoods MaterialMetal
-
Domestic/ImportImport
-
Body MaterialBrass
-
End StyleThreaded x Solder
- Lead free body construction
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- NPT threaded end connections
- Maximum pressure is 200 psi
-
Alternative Part NumberLFWCV 1
-
UNSPSC40141634
-
Package DescriptionEACH
-
Standards/ApprovalsASSE Listed|FM Approved|NSF Approved|UL Listed|ULC Listed|USC Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 year Limited
-
Specification Sheet
-
Instruction/Installation Manual
