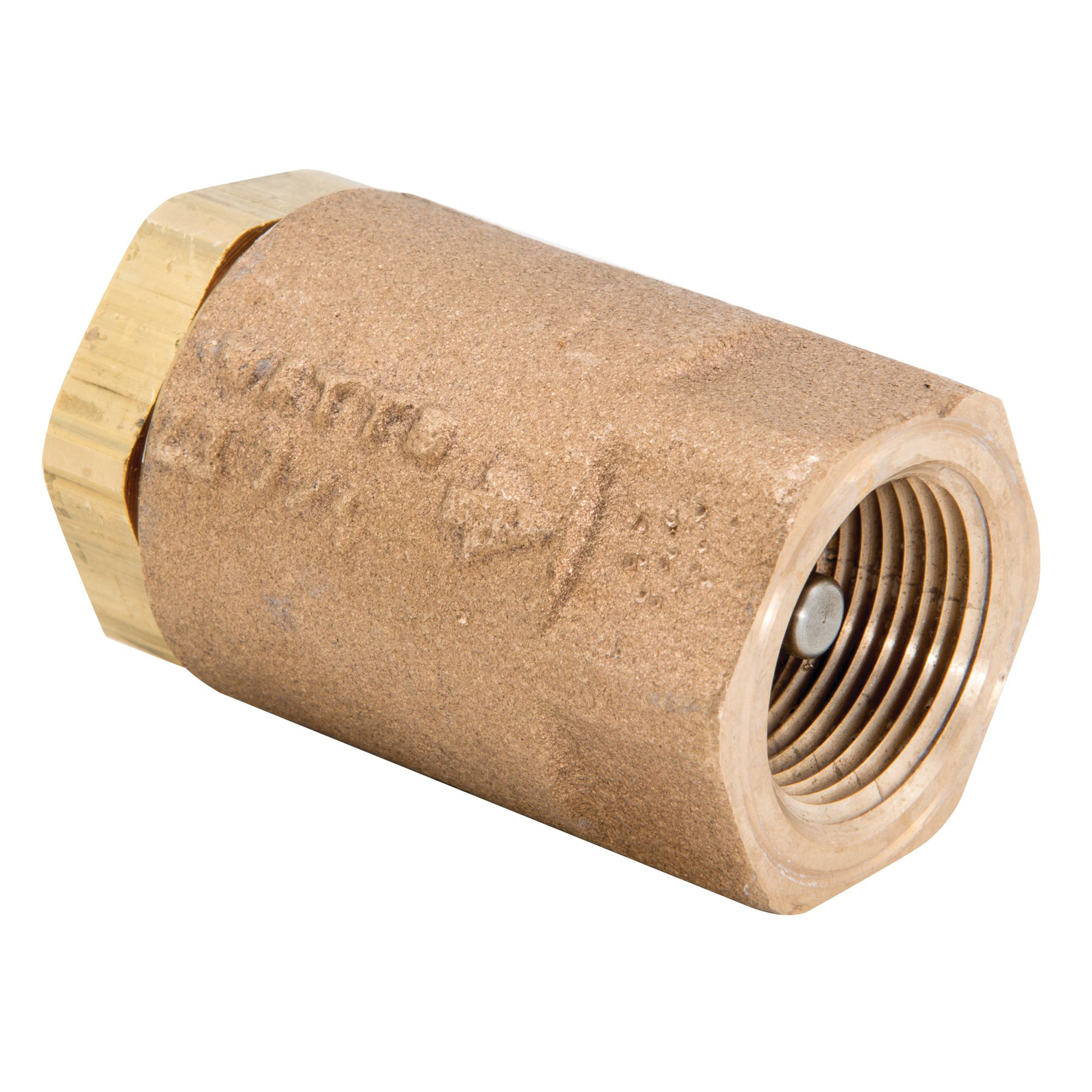

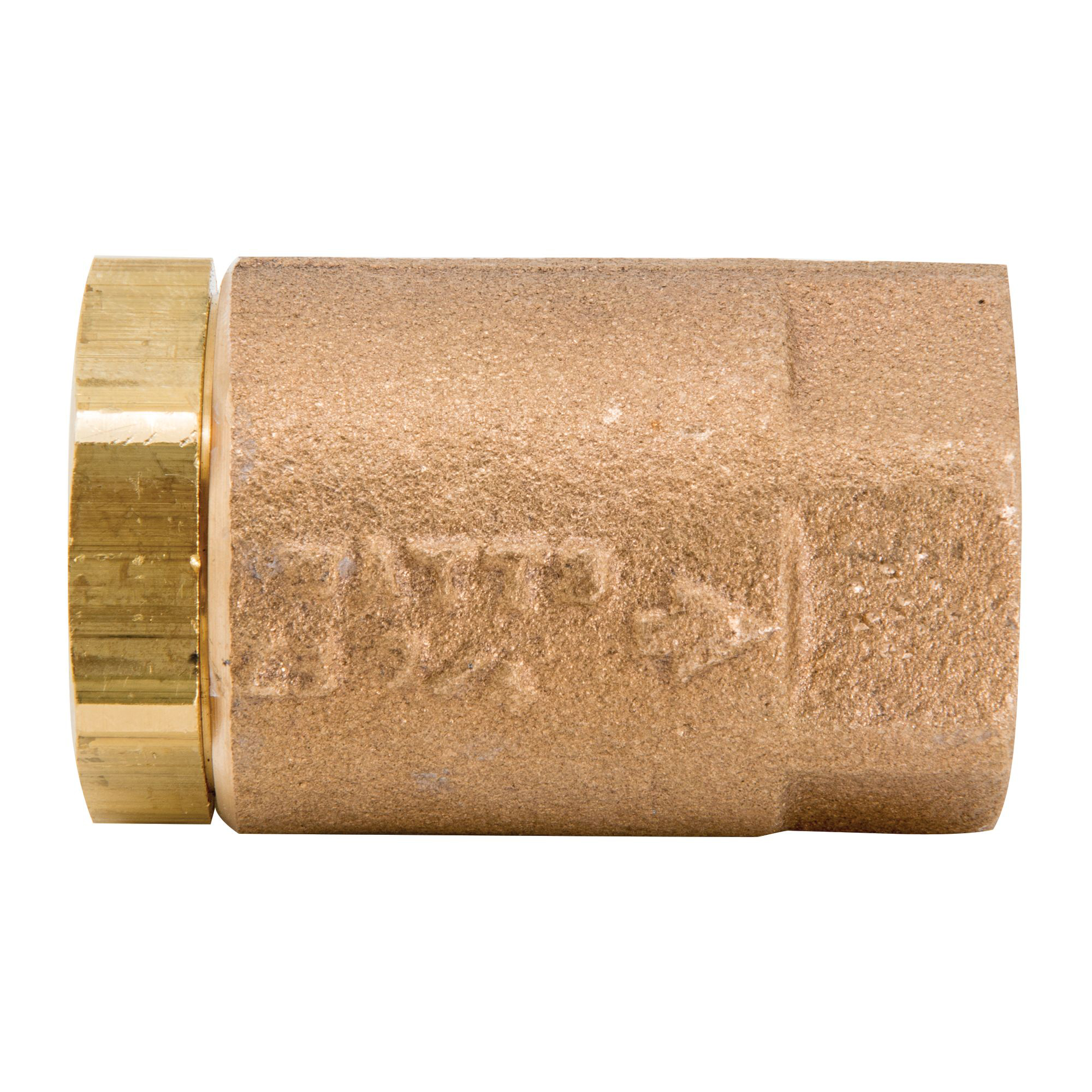

WATTS® Maxi-Flo® 0555180 Silent Check Valve, 2 in Nominal, Thread End Style, Cast Copper Silicon Alloy Body
This 2 inch lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, conical lead free brass disc, PTFE seat and threaded end connections. The maximum working pressure rating is 400 psi (27.6 bar), WOG non-shock at minus 20 to 100 degrees F (minus 29 to 38 degrees C) and 15 psi (1 bar) WSP at 250 degrees F (121 degrees C).
-
BrandWATTS®
-
UPC098268432909
-
Manufacturer Part Number0555180
-
CountryUSA|Canada
-
Low Lead ComplianceYes
-
Temperature Rating-20 to 100 deg F
-
Pressure Rating400 psi
-
Flow Rate81 gpm
-
MediaLiquid
-
Trim MaterialPTFE Seat/Stainless Steel Spring
-
TypeStandard
-
Actuator TypeSpring-Loaded Latch-Lock Handle
-
Nominal Size2 in
-
SeriesLF600
-
Inlet to Outlet Length4-1/2 in
-
Dimensions3-1/2 in H
-
Domestic/ImportDomestic
-
Body MaterialCast Copper Silicon Alloy
-
End StyleThread
-
Softgoods MaterialNitrile O-Ring
- Silent operation
- Conical lead free brass disc
- Straight-through flow design efficiency
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | WLF600K |
-
Alternative Part NumberLF600 2
-
UNSPSC40141622
-
Package DescriptionEACH
-
Standards/ApprovalsASSE Listed|FM Approved|NSF Approved|UL Listed|ULC Listed|USC Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 year Limited
-
Specification Sheet
-
Owners/User Manual
