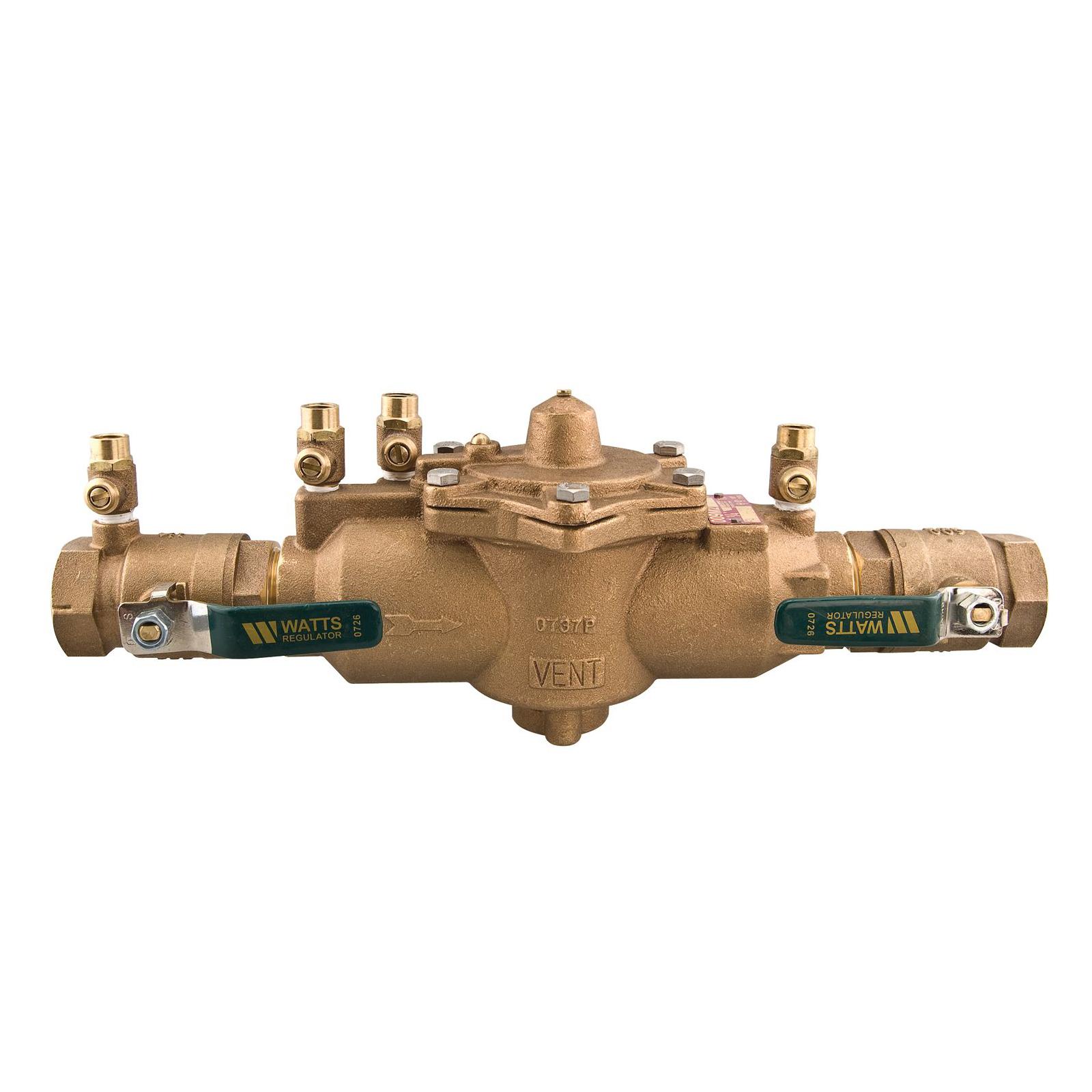

WATTS® 0063010 009 Inline Reduced Pressure Zone Assembly, 2 in Nominal, NPT End Style, Quarter-Turn Ball Valve, Bronze Body, Reduced Pressure Zone, 7.5 fps Flow Rate
Series 009 Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon age and or backpressure. It consists of bronze body construction (1/4 to 2 in, 8 to 50 mm) or FDA approved epoxy coated cast iron (2-1/2 to 3 in, 65 to 80 mm), two, in-line independent check valves, replaceable check seats with an intermediate relief valve and ball valve test cocks. Series 009 is ideal for protection of health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.
-
BrandWATTS®
-
UPC098268591781
-
Manufacturer Part Number0063010
-
CountryUSA|Canada
-
Temperature Rating33 to 180 deg F
-
Port TypeFull
-
Pressure Rating175 psi
-
Flow Rate7.5 fps
-
MediaWater
-
TypeInline
-
Nominal Size2 in
-
Series009
-
Backflow TypeReduced Pressure Zone
-
Ball Valve/Gate Valve TypeQuarter-Turn Ball Valve
-
Dimensions21-3/8 in L x 7-3/4 in H
-
Body MaterialBronze
-
End StyleNPT
- Top mounted screw driver slotted ball valve test cocks
- Top entry all internals immediately accessible
- Single access cover and modular check construction for easy of maintenance
- Compact space saving design
- Replaceable seats for economical repair
- Large body passages provides low pressure drop
- Captured spring assemblies for safety
- Quarter-turn full port resilient seated ball valve shutoffs
- Bronze body construction for durability
- Internal relief valve for reduced installation clearances
-
Alternative Part Number009M2-QT 2|98268591781
-
UNSPSC40141600
-
Package Description1/CTN
-
Standards/ApprovalsApproved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ASSE 1013|AWWA C511-92|CSA B64.4|IAPMO 1563|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 Year Limited
-
Specification Sheet
-
Instruction/Installation Manual
