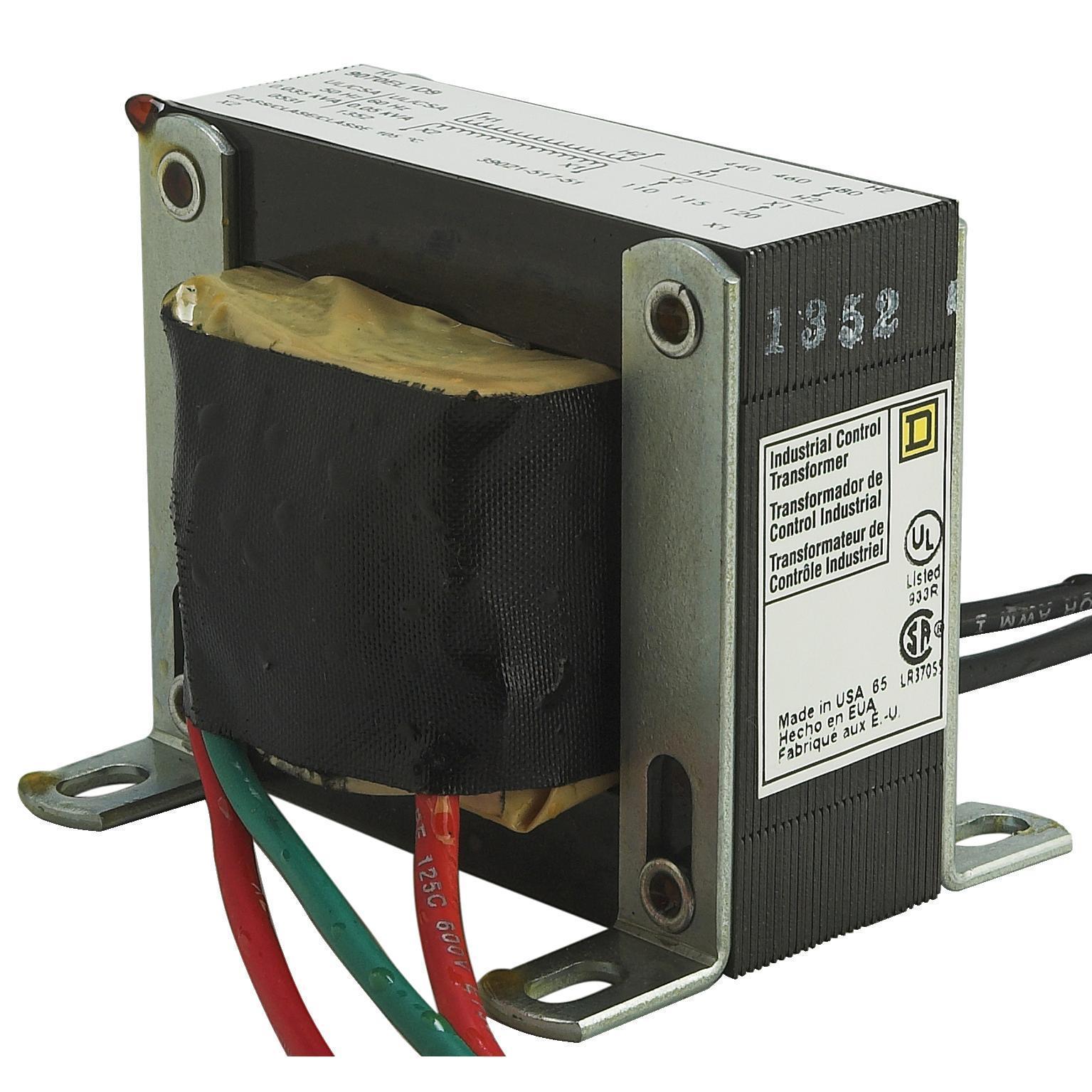

Square D™ OsiSense® 9070EL1D9 Type EL Industrial Wire Wound Control Transformer With 24 in Lead, 440/460/480 V AC Primary, 110/115/120 VAC Secondary, 50 VA Power Rating, 50/60 Hz, 1 Phase
The Square D™ by Schneider Electric Type EL Industrial Control Transformers is a single phase 150VA transformer designed for 240VAC primary with a 120VAC secondary. These are only available for single voltage primary and single voltage secondary applications. This Industrial Control transformer, is 1 phase, with a rated voltage of 50 VA. This transformer, has primary voltages of 480/440/460 V and secondary voltages of 115/120/110 V. This product has a temperature rise of 55 °C and a insulated temperautre of 105 °C. This product complys to UL listed,CSA & CE standards. This product comes with a 610 m lead and has screw clamp terminals connections.
-
BrandSquare D™
-
UPC785901020219
-
Manufacturer Part Number9070EL1D9
-
CountryUSA
-
Temperature Rating55 deg C
-
Power Rating50 VA
-
Frequency Rating50/60 Hz
-
TypeType EL Industrial Wire Wound
-
Connection TypeScrew Clamp
-
Mounting TypePanel
-
Dimensions3 in W x 2.63 in D x 2.5 in H
-
Enclosure TypeNEMA 1/Open
-
Phase1
- Used with motor control center buckets
- No screw terminals
- Long wire leads
-
Alternative Part Number8149230
-
UNSPSC39121026
-
IDEA Index ID8149230
-
IncludesPrimary and Secondary Fuse
-
Package DescriptionEACH
-
Standards/ApprovalsECCN: EAR99|CE Certified|CSA File No. LR37055 Guide 184-N-90|UL File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
-
Warranty18 Months
-
RoHS
-
Specification Sheet
-
Technical Bulletin
