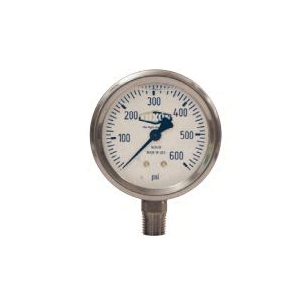

Dixon® GLS430 Gauge, 0 to 600 psi, 1/4 in NPT Connection, 2-1/2 in Dial, +/- 3-2-3 %, Glycerin Liquid Filled
Dixon® GLS430 Gauge, 0 to 600 psi, 1/4 in NPT Connection, 2-1/2 in Dial, +/- 3-2-3 %, Glycerin Liquid Filled
-
BrandDixon®
-
Manufacturer Part NumberGLS430
-
CountryUSA
-
Temperature Rating-4 to 140 deg F
-
MaterialStainless Steel Case
-
Pressure Range0 to 600 psi
-
Connection Size1/4 in NPT
-
Mounting TypeLower
-
Accuracy+/- 3-2-3 %
-
Dial Diameter2-1/2 in
- PowerFlex™ movement with polyester segment, designed to resist the effects of shock, vibration and pulsation
- Copper alloy bourdon tube
- Do not use in connection with drinking water
- Wash hands after handling
- Polycarbonate window
- White aluminum dial with black numbers and black aluminum pointer
-
UNSPSC41112412
-
Package Description10/BX
-
Standards/ApprovalsASME B40.100 Grade B
-
