Fluke® VoltAlert™ FLUKE-1AC-A1 AC Flat Tip AVC Detector, 90 to 1000 V AC, High Intensity Red LED Indicator, CAT IV 1000 V

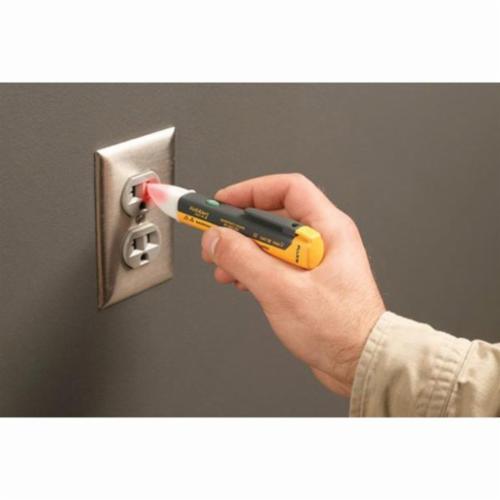

The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use - just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
-
BrandFluke®
-
Manufacturer Part NumberFLUKE-1AC-A1
-
CountryUSA
-
Temperature Rating-10 to 50 deg C
-
Power Source(2) AAA Alkaline Batteries
-
TypeAC Flat Tip
-
Voltage Rating90 to 1000 V AC
-
Safety RatingCAT IV 1000 V
-
IndicatorHigh Intensity Red LED
- Voltbeat™ technology and continuous self-test
- Upon detection, tip glows and beeper sounds produced by ac voltage through insulation without requiring contact-to the bare conductor
- Red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage
- Blade or round detector tip style
- High intensity red LED light source
- Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact-to the bare conductor
- 0% to 95% (0 deg C to 30 deg C), 0% to 75% (30 deg C to 40 deg C), 0% to 45% (40 to 55 deg C), 3000 m operating altitude,
-
UNSPSC41113600
-
Standards/ApprovalsCSA us|CE Certified|C-Tick Approved|Meets IEC 61010-1:2001|UL 61010-1 (2nd ed.)|CAN/CSA-C22.2 No. 61010-1-04|and ISA-82.02.01 Pollution Degree 2
