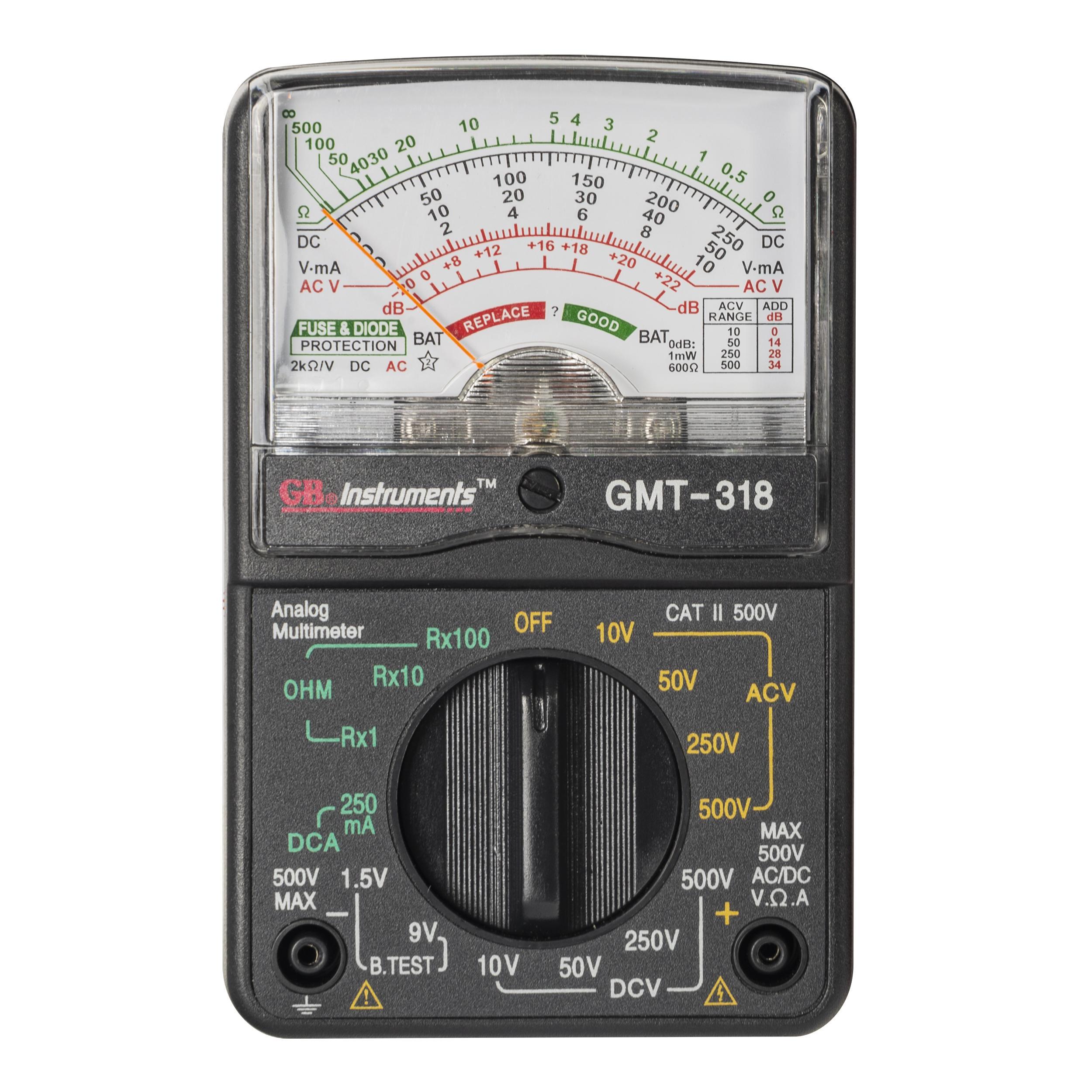

Gardner Bender GMT-318 6-Function 14-Range 15-Position Analog Multimeter, 10 to 500 V AC, 10 to 500 V DC, 250 mA, 1 to 100 Ohm, -20 to 56 dB, 1.5 V and 9 V Measuring, 500 V AC/DC, 250 mA, 50 kOhm, Analog Display
Testing equipment can be put to good use ensuring that electrical equipment is properly installed and safe to operate. Faulty installations can be lethal, the condition of electrical installations can be established when contractors use test equipment. Gardner Bender is pleased to offer an innovative full feature line of test equipment designed to make electrical work faster and safer. Multimeter tests AC volts, DC volts, batteries, DC amps, resistance and transistor gain. The fuse and diode are protected. Equipped with 1 year warranty and tri-lingual instruction manual.
-
BrandGardner Bender
-
UPC032076072995
-
Manufacturer Part NumberGMT-318
-
CountryUSA
-
Temperature Rating64 to 77 deg F
-
Measuring Range10 to 500 V AC, 10 to 500 V DC, 250 mA, 1 to 100 Ohm, -20 to 56 dB, 1.5 V and 9 V
-
Resistance50 kOhm
-
ColorBlack
-
Type6-Function 14-Range 15-Position
-
Accuracy+/-4 %
-
Voltage Rating500 V AC/DC
-
Safety RatingCAT II 500V
-
Amperage Rating250 mA
-
Battery Type1.5 V AA Non-Rechargeable
-
Dimensions109 mm L x 70 mm W x 33 mm H
-
Display TypeAnalog
-
Enclosure TypeIP20
- Manual range selection
- Spare 250 mA fuse included
- Agency approved with fuse overload protection circuitry incorporated
- Easy to read, color-coded analog displays
- Includes replaceable test leads and operating instructions
- 15-position rotary dial
- Replaceable test leads
- Zero Ohm adjustment dial
-
Alternative Part Number16793584
-
UNSPSC41113630
-
IDEA Index ID16793584
-
Standards/ApprovalsCE Certified|cETLus Listed
-
Warranty1 year
-
Specification Sheet
