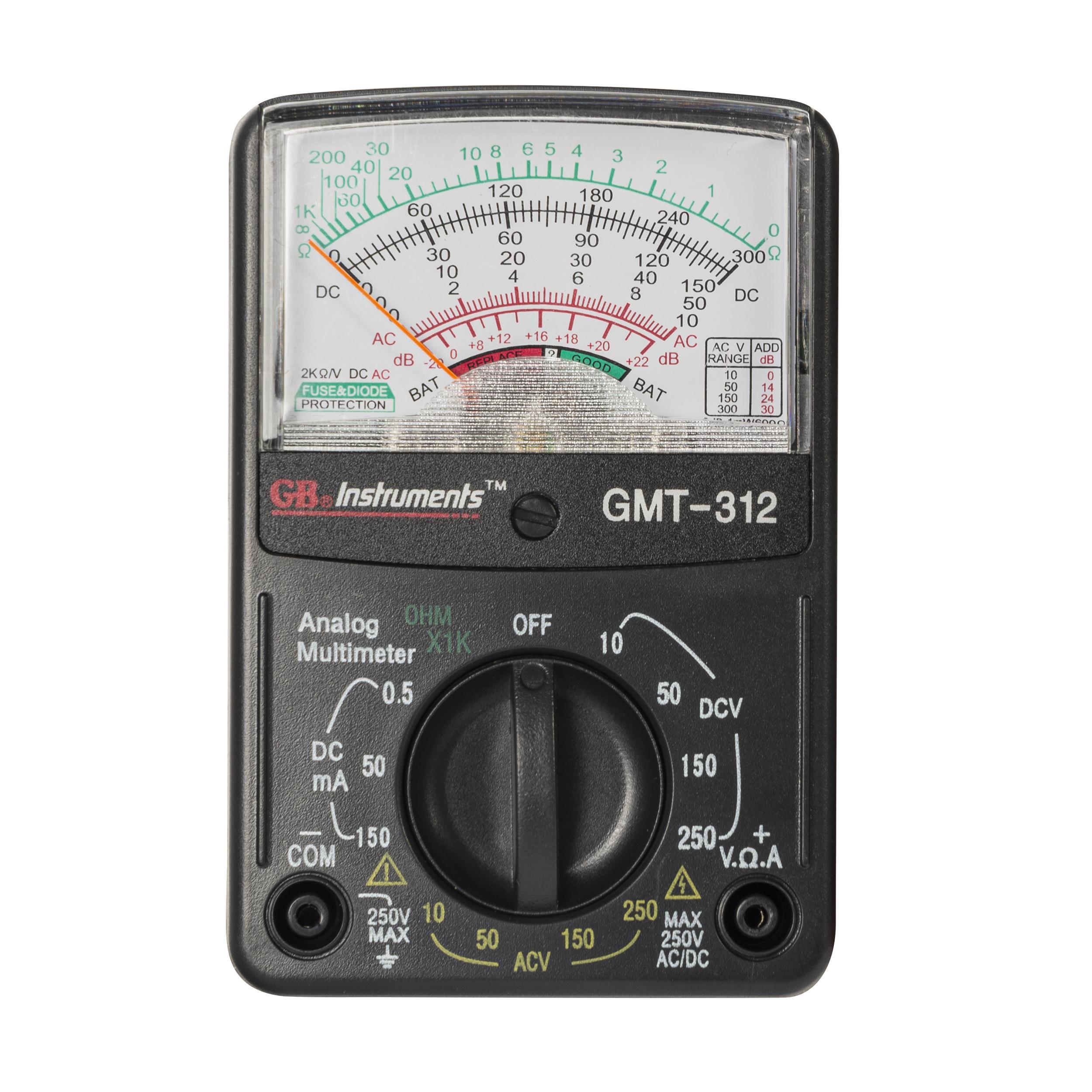

Gardner Bender GMT-312 5-Function 12-Range 13-Position Analog Multimeter, 10 to 300 V AC, 10 to 300 V DC, 0.5 to 150 mA, 1 kOhm to 1 MOhm, -20 to 52 dB Measuring, 300 V AC/DC, 250 mA, 1 MOhm, Analog Display
Testing equipment can be put to good use ensuring that electrical equipment is properly installed and safe to operate. Faulty installations can be lethal, the condition of electrical installations can be established when contractors use test equipment. Pocket sized analog tester. Tests voltage, DC voltage, DC current, resistance, continuity and batteries.
-
BrandGardner Bender
-
UPC032076072988
-
Manufacturer Part NumberGMT-312
-
CountryUSA
-
Temperature Rating64 to 77 deg F
-
Measuring Range10 to 300 V AC, 10 to 300 V DC, 0.5 to 150 mA, 1 kOhm to 1 MOhm, -20 to 52 dB
-
Resistance1 MOhm
-
ColorBlack
-
Type5-Function 12-Range 13-Position
-
Accuracy+/-5 %
-
Voltage Rating300 V AC/DC
-
Safety RatingCAT II 300V
-
Amperage Rating250 mA
-
Battery Type1.5 V AA Non-Rechargeable
-
Dimensions93 mm L x 62 mm W x 32 mm H
-
Display TypeAnalog
-
Enclosure TypeIP20
- Manual range selection includes a zero Ohm adjustment dial
- Easy to read, color-coded displays, tests DC/AC V, DC current and resistance
- 13-position rotary dial
- Agency approved with fuse overload protection circuitry incorporated
- Replaceable test leads
- Includes test lead input icons for correct lead placement and a set of positive and negative electrical test leads
| Cross-Reference Number |
|---|
| 505315 |
-
Alternative Part Number16793583
-
UNSPSC41113630
-
IDEA Index ID16793583
-
Standards/ApprovalsCE Certified|cETLus Listed
-
Warranty1 year
-
Specification Sheet
