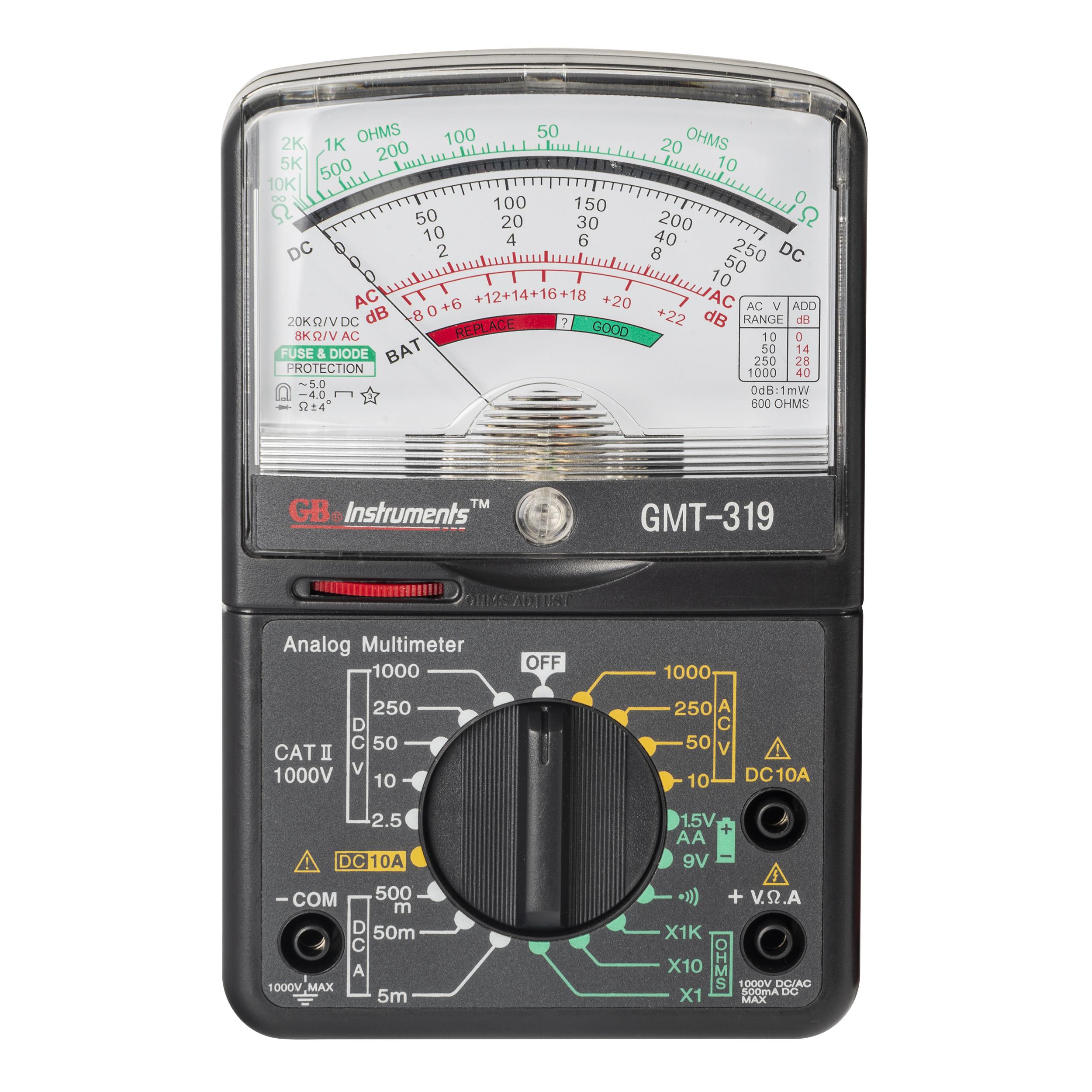

Gardner Bender GMT-319 7-Function 19-Range 20-Position Analog Multimeter, 10 to 1000 V AC, 2.5 to 1000 V DC, 5 to 500 mA, 1 to 10 MOhm, -8 to 62 dB, 1.5 V and 9 V, 20000 Ohms per V DC and 8000 Ohms per V AC Measuring, 1000 V AC/DC, 10 A, 10 MOhm, Analog Display
Testing equipment can be put to good use ensuring that electrical equipment is properly installed and safe to operate. Faulty installations can be lethal, the condition of electrical installations can be established when contractors use test equipment. Gardner Bender is pleased to offer an innovative full feature line of test equipment designed to make electrical work faster and safer. Includes batteries and a spare fuse. Operates with 7 total functions and a range of 19. The accuracy is within +/- 4%.
-
BrandGardner Bender
-
UPC032076073008
-
Manufacturer Part NumberGMT-319
-
CountryUSA
-
Temperature Rating64 to 77 deg F
-
Measuring Range10 to 1000 V AC, 2.5 to 1000 V DC, 5 to 500 mA, 1 to 10 MOhm, -8 to 62 dB, 1.5 V and 9 V, 20000 Ohms per V DC and 8000 Ohms per V AC
-
Resistance10 MOhm
-
ColorBlack
-
Type7-Function 19-Range 20-Position
-
Accuracy+/-4 %
-
Voltage Rating1000 V AC/DC
-
Safety RatingCAT II 1000V
-
Amperage Rating10 A
-
Battery Type(2) 1.5 V AA Non-Rechargeable
-
Dimensions149 mm L x 97 mm W x 43 mm H
-
Display TypeAnalog
-
Enclosure TypeIP20
- Manual range selection
- Easy to read, color-coded analog displays
- Includes replaceable test leads and operating instructions
- Agency approved with fuse overload protection circuitry incorporated
- Replaceable test leads
- Zero Ohm adjustment dial
-
Alternative Part Number16793585
-
UNSPSC41113630
-
IDEA Index ID16793585
-
Standards/ApprovalsCE Certified|cETLus Listed
-
Warranty1 year
-
Specification Sheet
