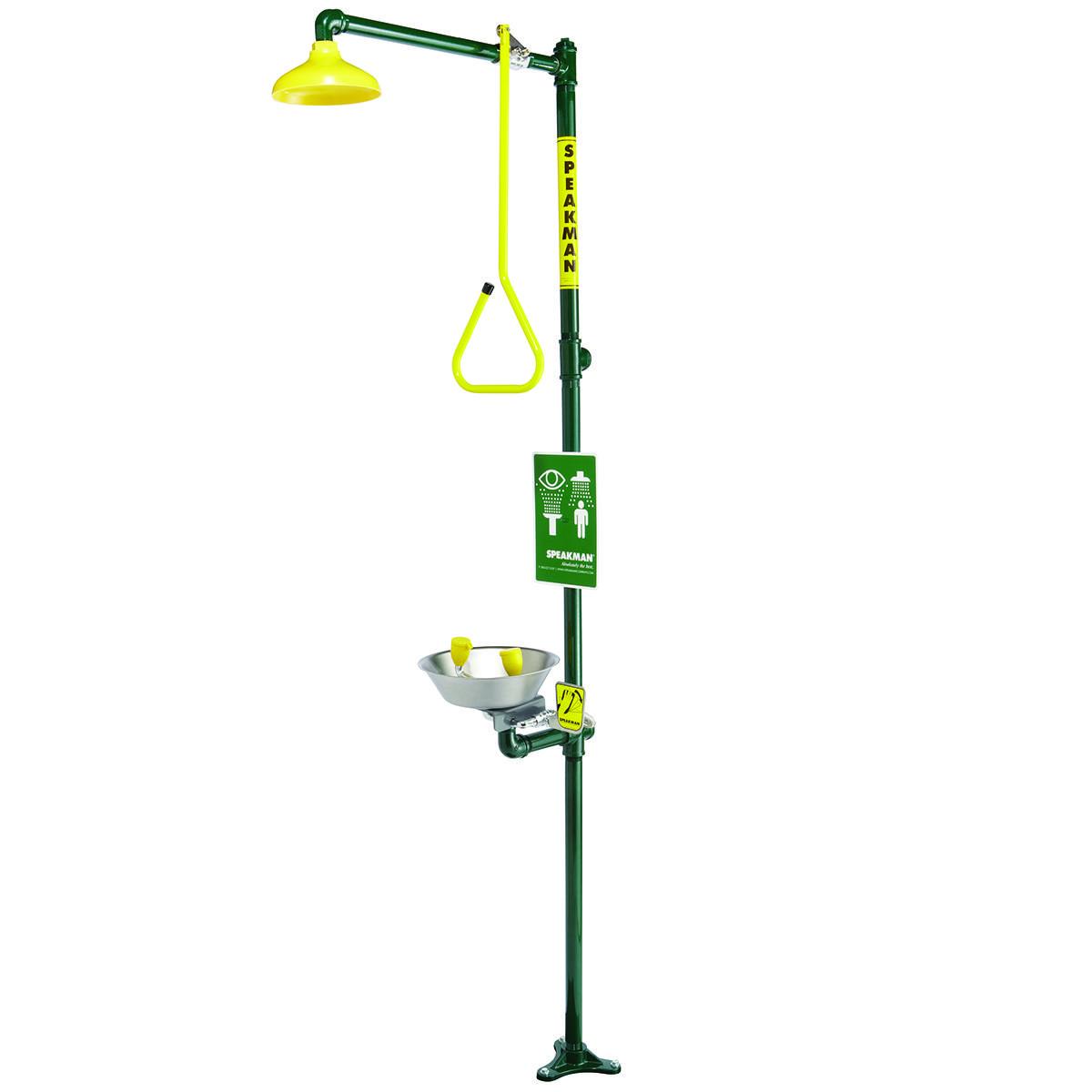

Speakman® SE-690 Traditional Round Emergency Combination Station, ABS Eyewash Bowl, ABS Shower Head, Floor Mount, Pull Rod Operation, ANSI/ISEA Z385.1, OSHA Approved
Speakman® traditional series combination emergency stations provide the highest level of performance in times of need. All traditional series combination stations feature a high performance emergency shower head and a 1-1/4 in DuraJade™ powder coated stanchion. The Speakman® traditional series SE-690 combination emergency station with stainless steel bowl eye/face wash features a stay open ball valve, allowing hands-free operation once the shower has been activated and an SE-490 eye face wash. The high-visibility yellow pull-rod, makes finding the SE-690 easy in an emergency.
-
BrandSpeakman®
-
UPC671252000430
-
Manufacturer Part NumberSE-690
-
CountryUSA|Canada
-
Pipe MaterialGalvanized Steel
-
FinishPolished Chrome/DuraJade™ Powder Coated
-
Fitting MaterialGalvanized Steel
-
ColorYellow
-
TypeRound
-
Mounting TypeFloor
-
Head Diameter8 in
-
SeriesTraditional
-
Shower Handle Length26 in
-
Shower Handle MaterialStainless Steel
-
Shower Head MaterialABS
-

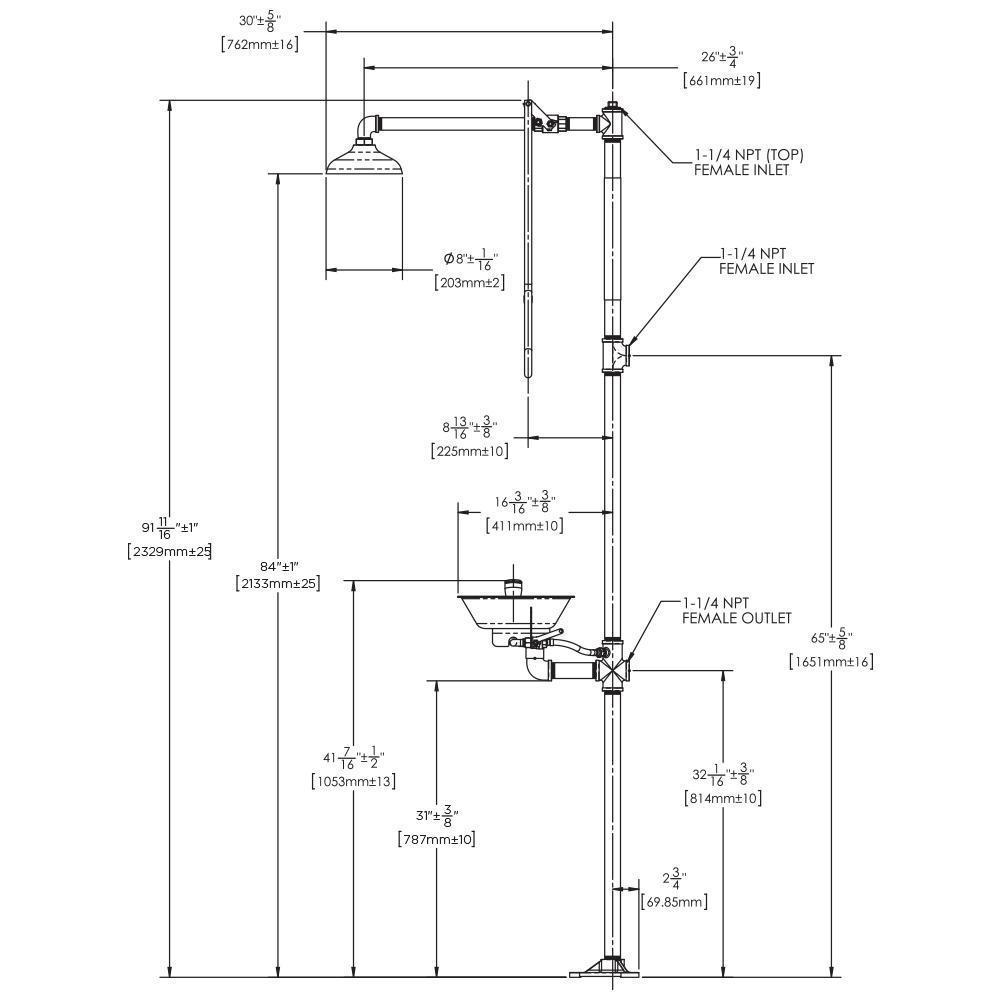

Dimensions93-3/4 in H x 30 in W
-
Specifications MetANSI/ISEA Z385.1, OSHA Approved
-
Operation TypePull Rod
-
Bowl Diameter13 in
-
Eyewash Bowl MaterialABS
- High visibility pull-rod activated shower
- Push-handle activated eye/facewash
-
UNSPSC46181810
-
Package DescriptionEACH
-
Standards/ApprovalsEAR99|IAPMO/ARRA Compliant|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Specification Sheet
-
Instruction/Installation Manual
