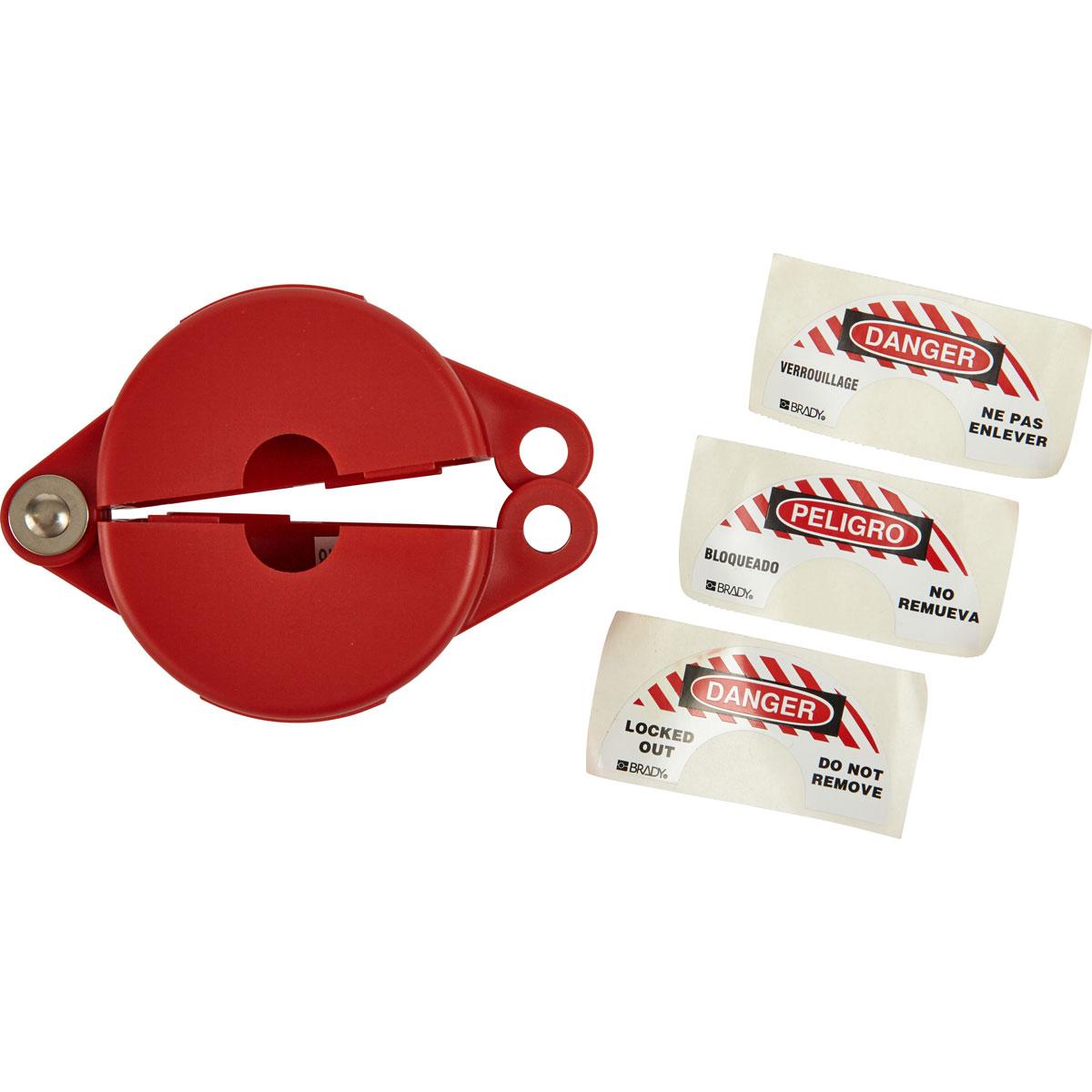

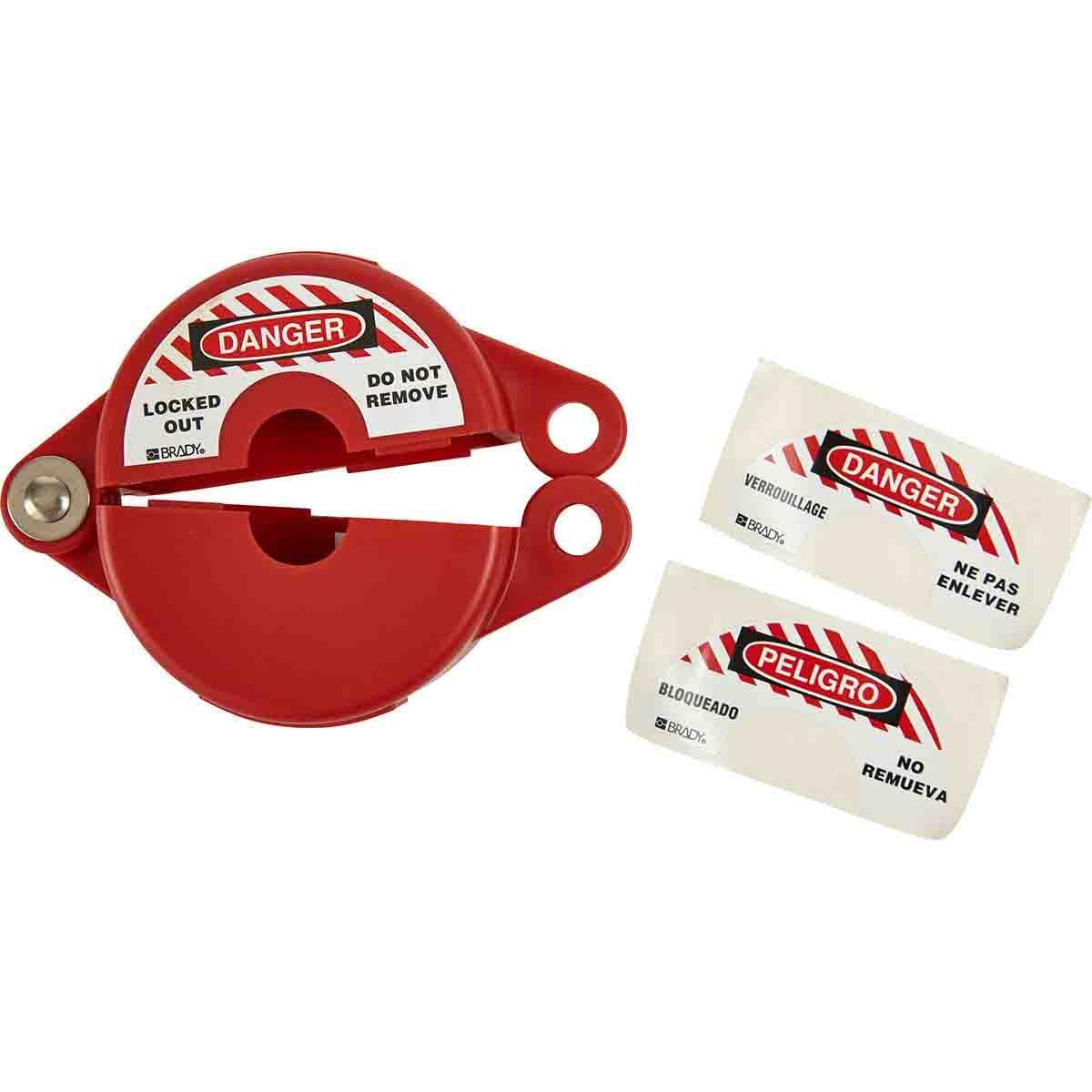

Brady® 65560 Hinged Mechanical Risk Gate Valve Lockout, Fits Min Handle Size: 1 in, -40 deg F Min Temperature
Gate valve lockout devices deny access and cover the valve handle. This device's unique knockout center fits OS&Y or "rising stem" valves.
-
BrandBrady®
-
UPC754473655600
-
Manufacturer Part Number65560
-
CountryUSA|Canada
-
Fits Maximum Handle Size2-1/2 in
-
Fits Minimum Handle Size1 in
-
MaterialLOTO-7 Polypropylene
-
Maximum Number of Padlocks1
-
Maximum Temperature302 deg F
-
ColorRed
-
Minimum Temperature-40 deg F
-
LegendDANGER LOCKED OUT DO NOT REMOVE
-
Padlock Shackle Maximum Diameter3/8 in
-
TypeHinged Mechanical Risk
- Device is made of extremely rugged injection-molded polypropylene for superior impact and chemical resistance
- Supplied with English, Spanish and French danger labels

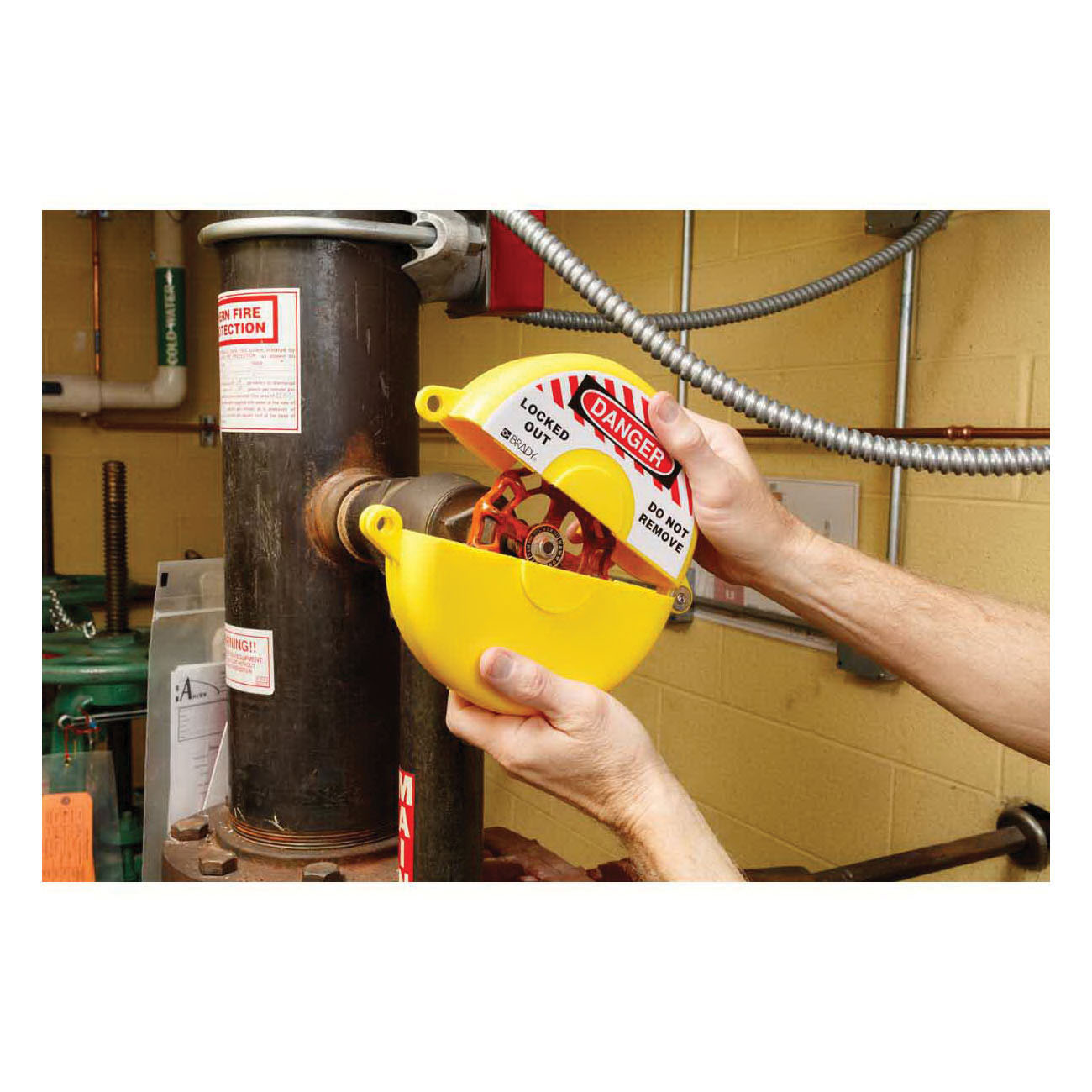

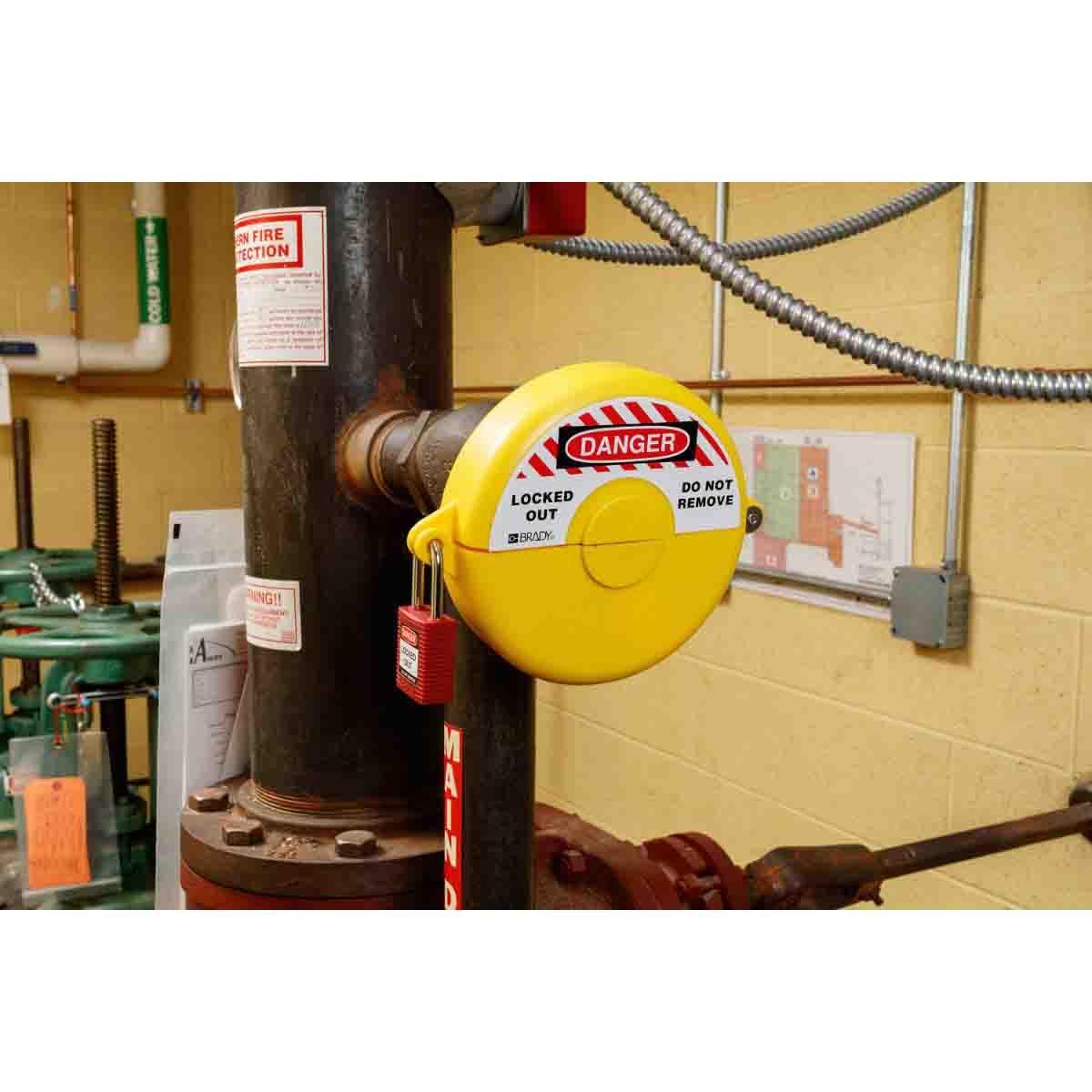

- Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
- Accepts padlock shackles up to 3/8 in diameter
- Supplied with English, Spanish and French danger labels
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3BC82 |
| MSC | 45664810 |
| Fastenal | 1022427 |
-
Alternative Part Number8384707
-
UNSPSC39121909
-
IDEA Index ID8384707
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Z244.1|ASSE Z244.1|ECCN: EAR99|NFPA 704|NPCA-HMIS Rating|OSHA 29 CFR 1910.147 (4)(ii)( A)(1)/(c) (5)(ii)(C)(1)|UL 94 HB Flammability Rating|CSA Approved
-
Technical Bulletin
-
Catalog
-
Specification Sheet
