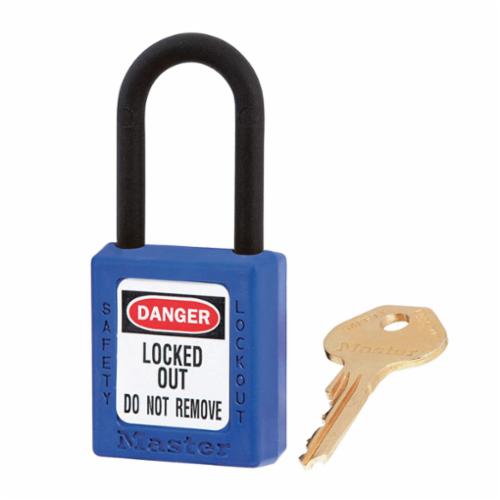

Master Lock® 406BLU Zenex™ 406 Dielectric Lockout Padlock, Different Key, Blue, Thermoplastic Body, 1/4 in Dia x 1-1/2 in H x 25/32 in W Nylon Shackle, 1-3/4 in L Body
406 dielectric thermoplastic safety padlock. Plastic shackle helps prevent electrocution and arc flashing, also prevents electrical current from shackle to key. All components are non-sparking and non-magnetic - plastic, copper, brass. 1-1/2 in (3.8cm) wide 1-3/4 in (4.4cm) tall thermoplastic blue body, plastic shackle with 1-1/2 in (3.8cm) clearance. Designed exclusively for Lockout/Tagout applications. Durable, lightweight, non-conductive Thermoplastic lock body. Compliance with OSHA inone employee, one lock, one key in directive. Key retaining-ensures that padlock is not left unlocked. Keyed different 6-pin tumbler cylinder. commercial boxed packaging, shelf pack quantity 6, master carton quantity 36.
-
BrandMaster Lock®
-
UPC071649090509
-
Manufacturer Part Number406BLU
-
CountryUSA|Canada
-
Locking Mechanism6-Pin Tumbler Cylindrical
-
ColorBlue
-
TypeDielectric
-
SeriesZenex™ 406
-
Shackle Diameter1/4 in
-
Shackle Height1-1/2 in
-
Shackle MaterialNylon
-
Shackle Width25/32 in
-
Key TypeDifferent
-
Body Length1-3/4 in
-
Body MaterialThermoplastic
-
Body Width1-1/2 in
-
LegendDanger Locked Out Do Not Remove
- All components are non-conductive, non-sparking and non-magnetic plastic, copper, brass
- 6-pin tumbler with over 40000 available key changes cylinder
- Plastic shackle helps prevent electrocution and arc flashing, also prevents electrical current from shackle to key
- Compliance with "one employee, one lock, one key" directive
- Key retaining ensures that padlock is not left unlocked
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1TDD1 |
| Fastenal | 1037143 |
-
UNSPSC46171501
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed|OSHA 1910.147
-
WarrantyLifetime Limited
-
