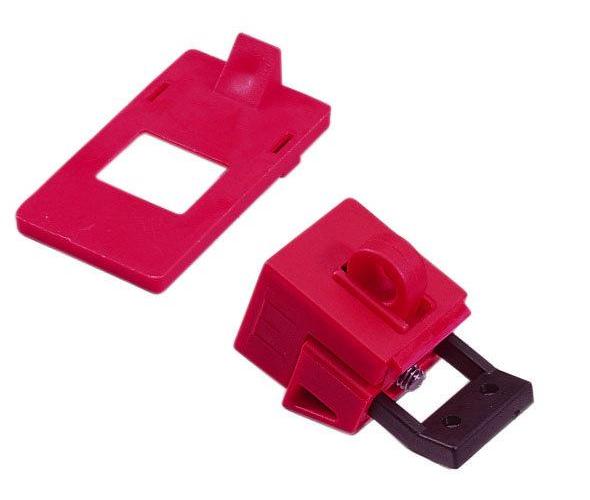

IDEAL® 44-809 Universal Circuit Breaker Lockout, For Use With 120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width, 0.28 in Dia Max Padlock Shackle, Red
The Universal 120-277V Breaker Lockouts are hinged with locking post design. Breaker lockout locks lever in off position to isolate and to prevent the use of breaker. It features a universal model that has unique screw clamp to lockout all Single-Pole Breakers. The Universal 120-277V Breaker Lockouts use thumbscrew to clamp lockout securely on to switch tongue, then pull cover over thumbscrew and lock in place to prevent clamp from being loosened. The new blade design also provides a tighter grip with less torque on thumbscrew. Breaker lockout meets RoHS standards.
-
BrandIDEAL®
-
UPC783250448098
-
Manufacturer Part Number44-809
-
CountryUSA
-
ColorRed
-
TypeUniversal
-
Height1 in
-
Width2-1/2 in
-
Depth4 in
-
Suitable For Use With120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width
-
Padlock Shackle Maximum Diameter0.28 in
- Hinged single-pole lockout with locking post design, locks lever in off position to isolate and prevent breaker use
- Use thumbscrew to clamp lockout securely on to switch tongue, then pull cover over thumbscrew and lock in place to prevent clamp from being loosened
- New blade design provides tighter grip with less torque on thumbscrew
- Universal model features unique screw clamp to lockout all single-pole breakers
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25C069 |
-
Alternative Part Number8335285
-
UNSPSC39121901
-
IDEA Index ID8335285
-
Standards/ApprovalsRoHS Compliant
-
RoHS
-
Owners/User Manual
