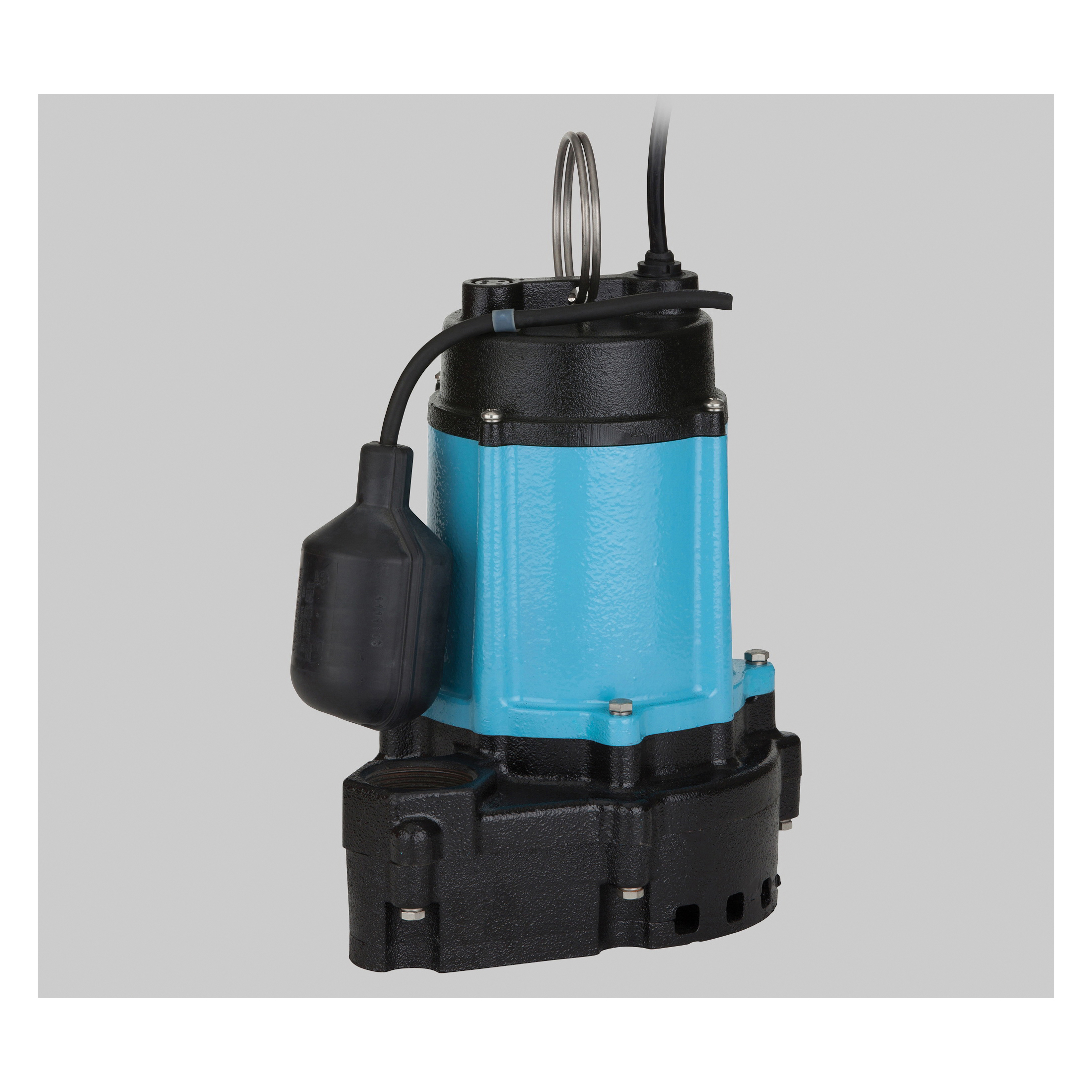

Little Giant® 510852 10EC Effluent Pump, 67 gpm Max Flow, 5 ft Rated Head, Automatic, 36 ft Max Head, 115 V, 1 ph
$645.80
In Stock
SKU: LGP510852
In Stock
HCI of Jackson: 3
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
Back to: Effluent Pumps
Main specs
-
BrandLittleGIANT®
-
UPC010121149236
-
Manufacturer Part Number510852
-
CountryUSA|Canada
Specification
-
Temperature Rating140 deg F
-
Maximum Flow Rate67 gpm
-
Maximum Head36 ft
-
Maximum Pressure15.6 psi
-
Maximum Suction Lift30 ft
-
Rated Head5 ft
-
Frequency Rating60 Hz
-
Voltage Rating115 V
-
Cord TypeSJTW 20 ft
-
Amperage Rating6.5 A
-
Series10EC
-
Automatic/Non AutomaticAutomatic
-
Horsepower1/2 hp
-
Impeller TypeNylon
-
Dimensions8.79 in L x 8.48 in W x 10.9 in H
-
Bearing TypeUpper and Lower Ball
-
Domestic/ImportImport
-
Outlet Size1-1/2 in FNPT
-
Phase1
Features
- Heavy duty cast iron construction
- Designed for continuous duty
- Energy saving low amp draw
- Cast iron base
- Piggyback mechanical float operation
- Handles solids up to 1/2 in Dia
Additional Information
-
Alternative Part Number10EC-CIA-RF
-
UNSPSC40151500
-
Package Description1/PK
-
Standards/ApprovalscCSAus Certified
-
Warranty3 Years
Attachments
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
