Porter-Cable 1-3/4-HP 120-VOLT ROUTERS POR 690-LR

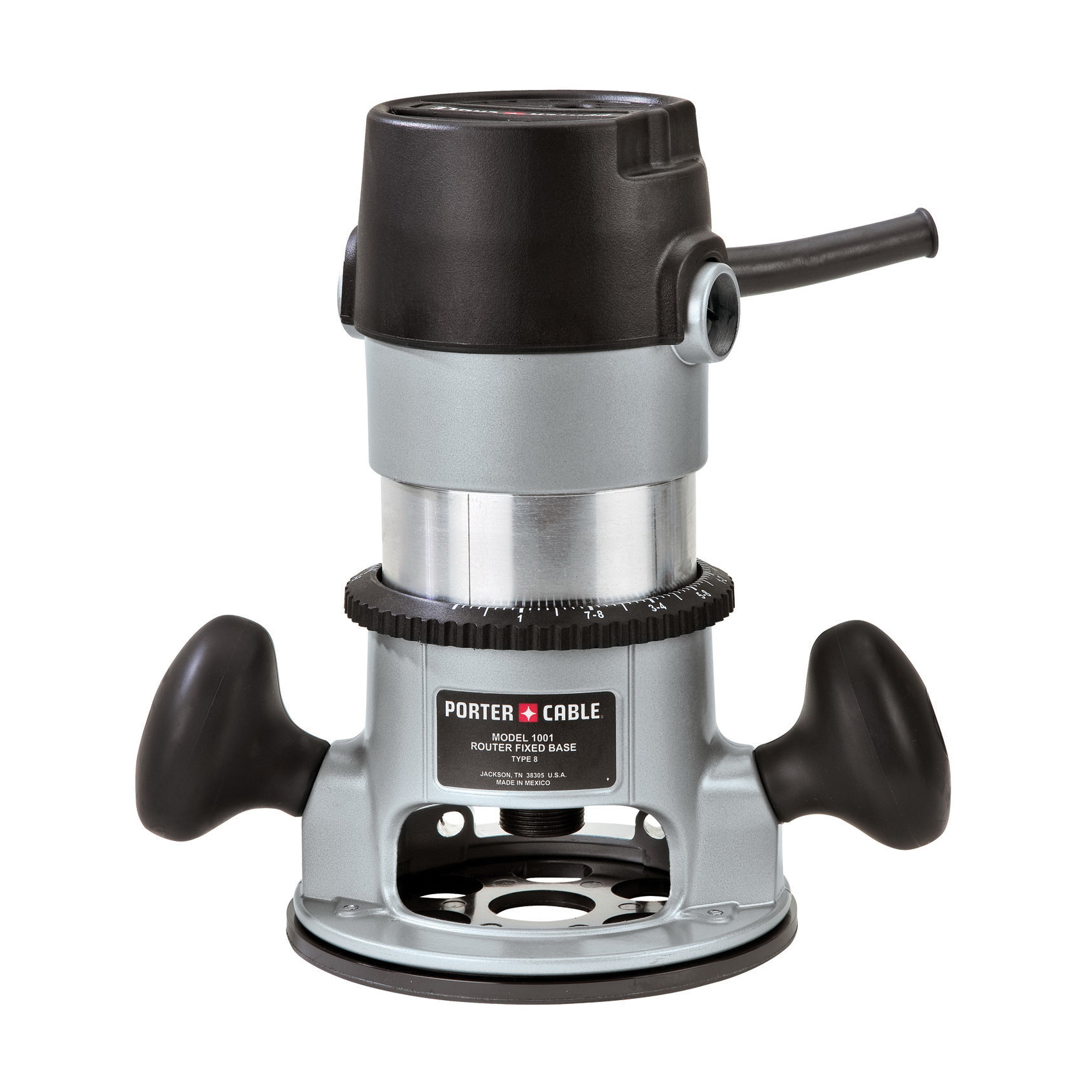

Porter-Cable® 690LR Fixed Base Electric Router, Rocker Switch, 1/4 in, 1/2 in in Chuck, 27500 rpm Speed, 1-3/4 hp, 120 VAC
-
BrandPorter-Cable®
-
UPC039404121202
-
Manufacturer Part Number690LR
-
CountryUSA
-
Tool/KitBare Tool
-
Chuck Size1/4 in, 1/2 in in
-
ColorBlack/Gray/Silver
-
TypeFixed Base
-
Handle TypeErgonomic
-
Voltage Rating120 V AC
-
Amperage Rating11 A
-
Horsepower1-3/4 hp
-
Housing MaterialAluminum
-
Dimensions8.62 in H x 5.5 in W x 12 in D
-
Speed27500 rpm
-
Switch TypeRocker
- 11A motor producing 1-3/4 peak hp

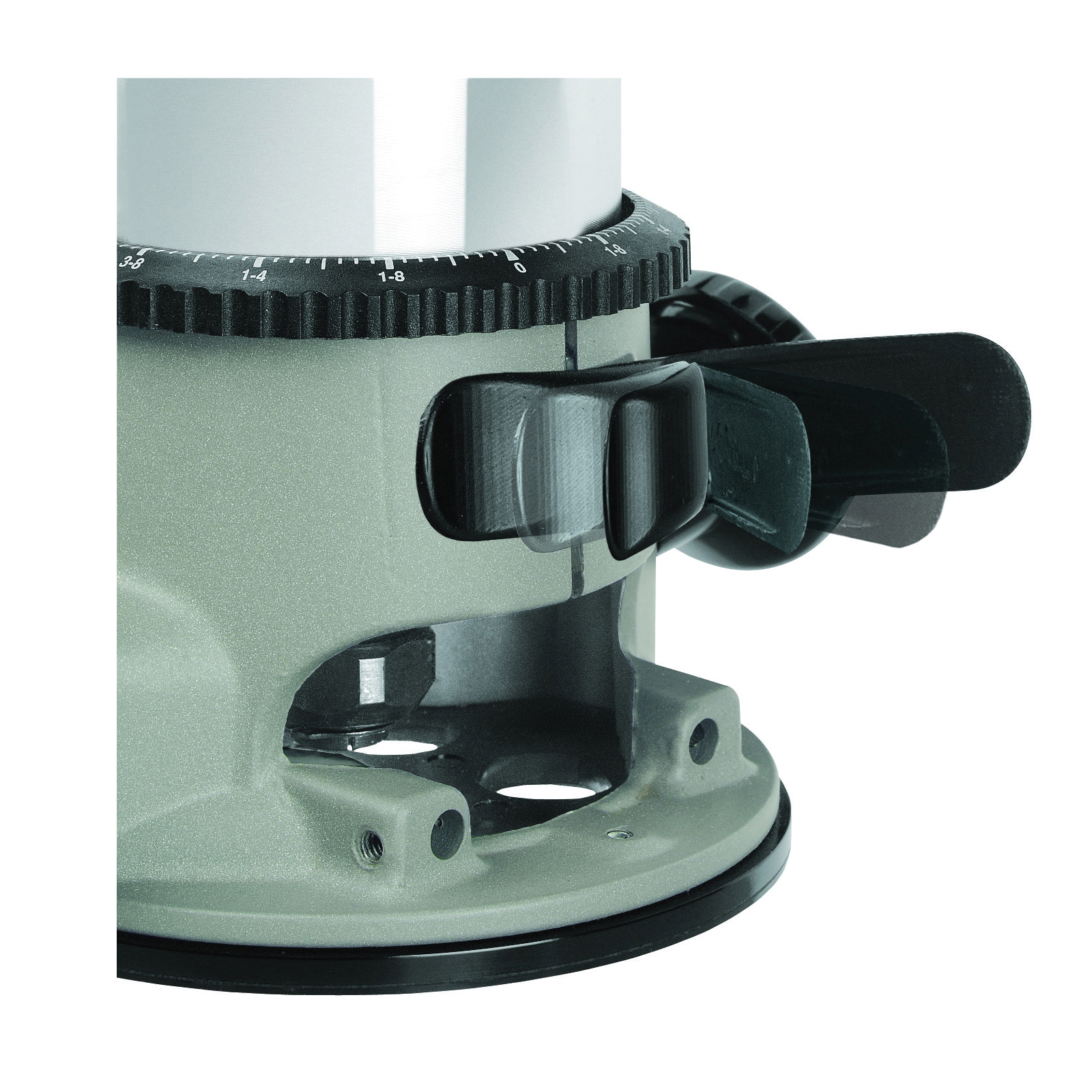

- Cam lock lever enables simple coarse height adjustments and motor release, fixed base only
- Micrometer depth adjustor accurate to 1/128 in
- Dust sealed switch and sealed ball bearing construction enhance tool durability
- Precision machined aluminum motor housing and base
- Auto-release collet system enables simple bit removal
- Under the table stop prevents motor from inadvertently rotating out of base
- Overmolded rubber handles provide a comfortable and secure grip
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3UB91 |
-
UNSPSC27112707
-
Package Description1/PK
