Milwaukee® 49-16-750A Crimping Jaw, For Use With M18™ FORCE LOGIC™ 2679-20 and 49-16-U111 600 kcmil Crimper

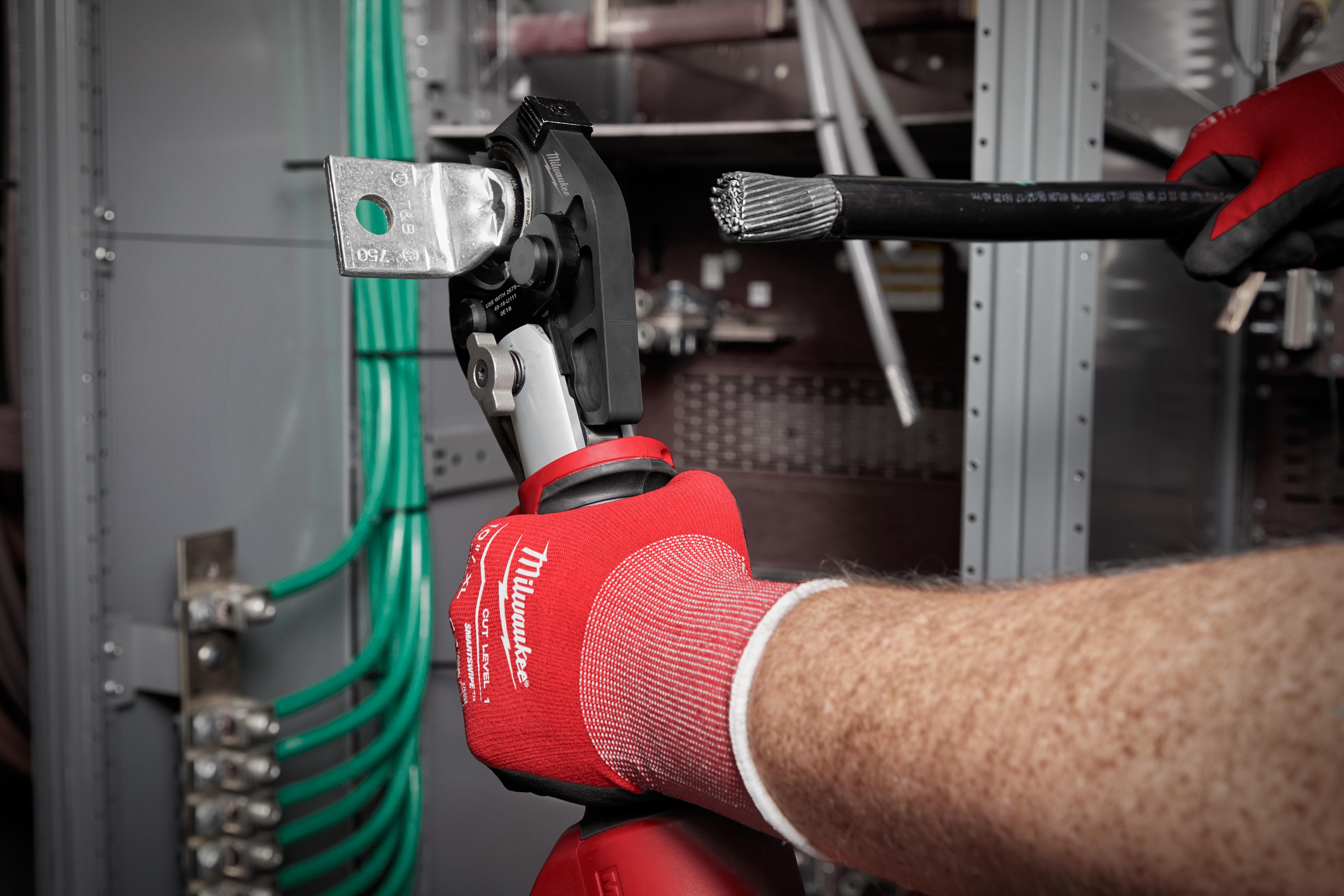

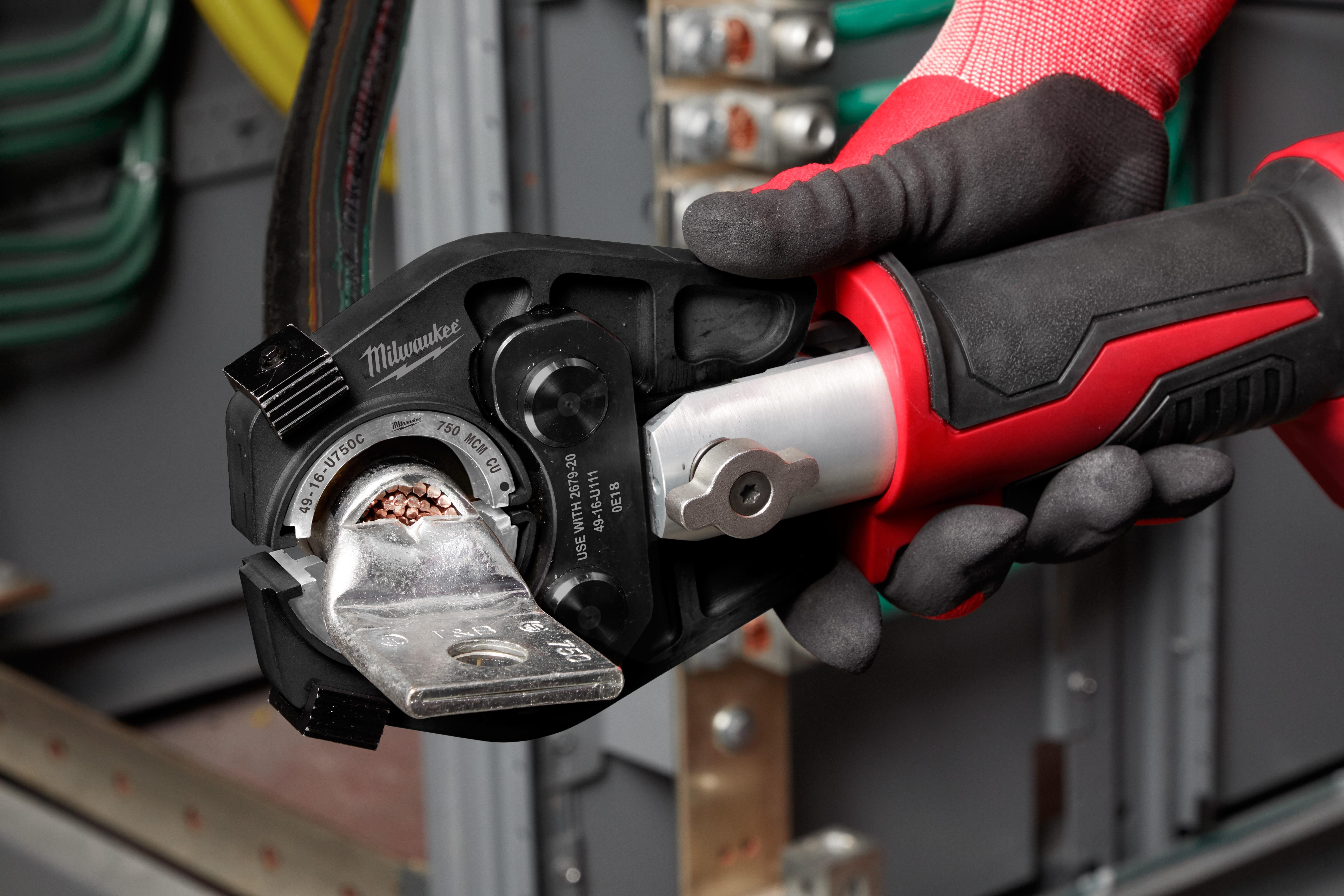

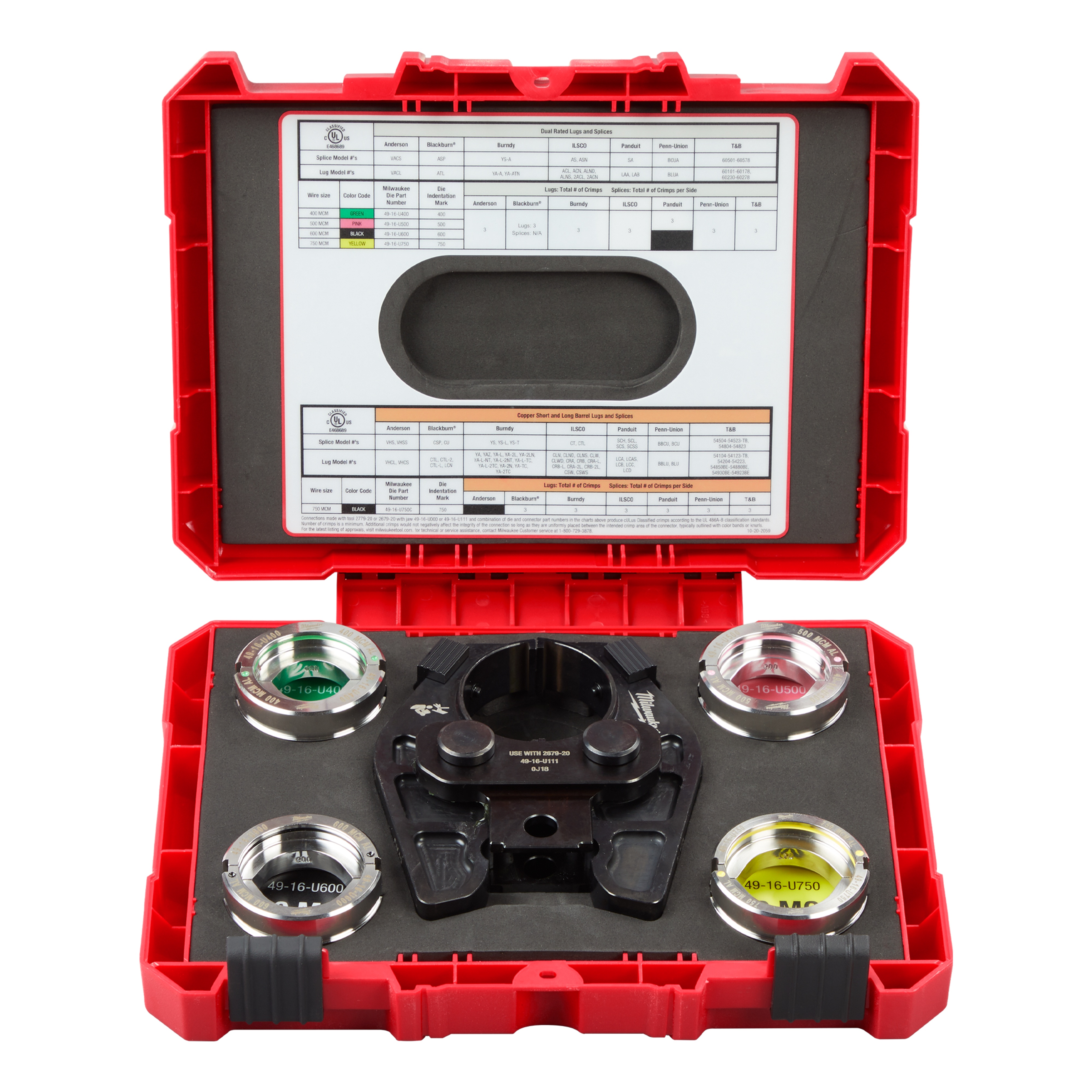

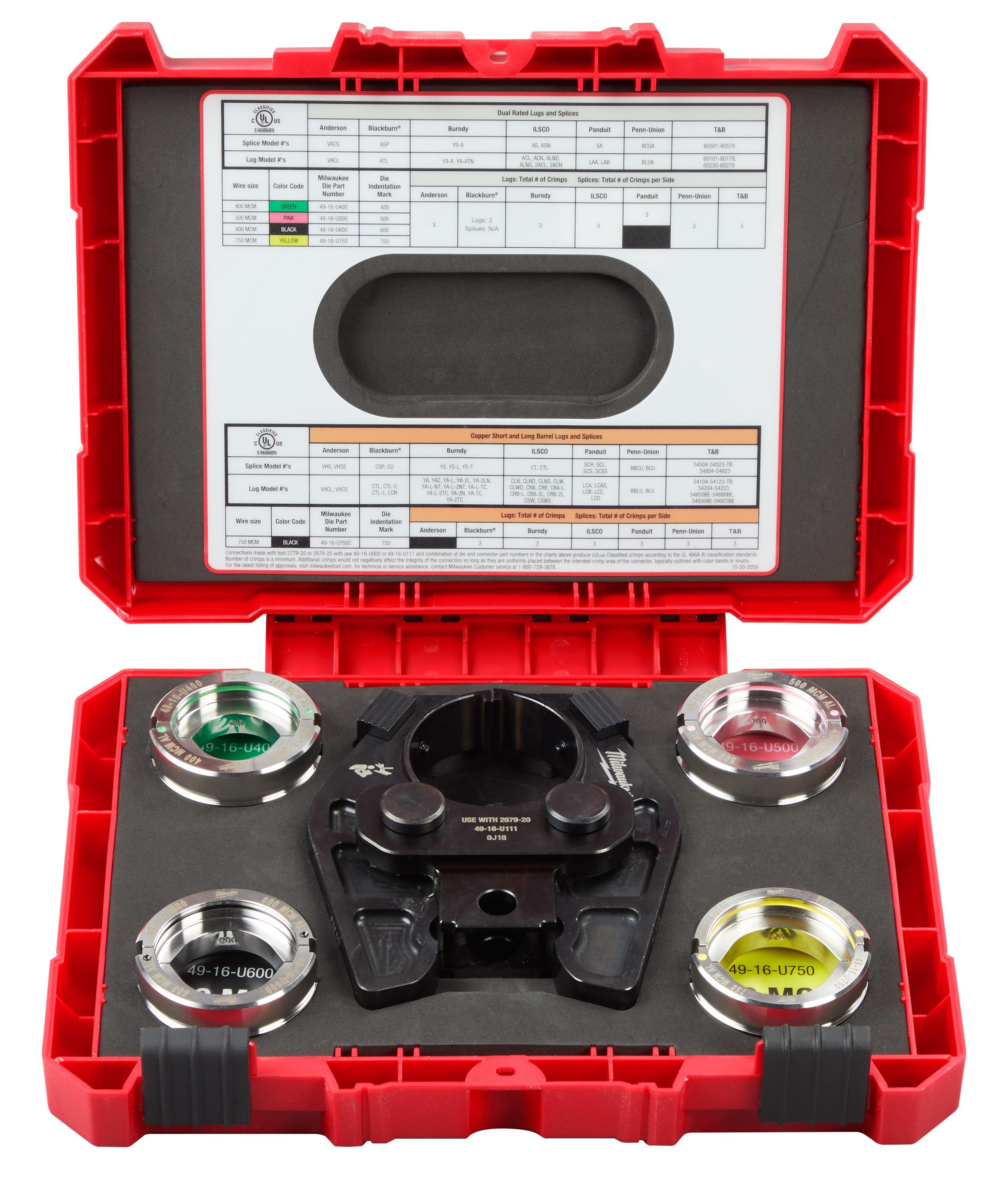

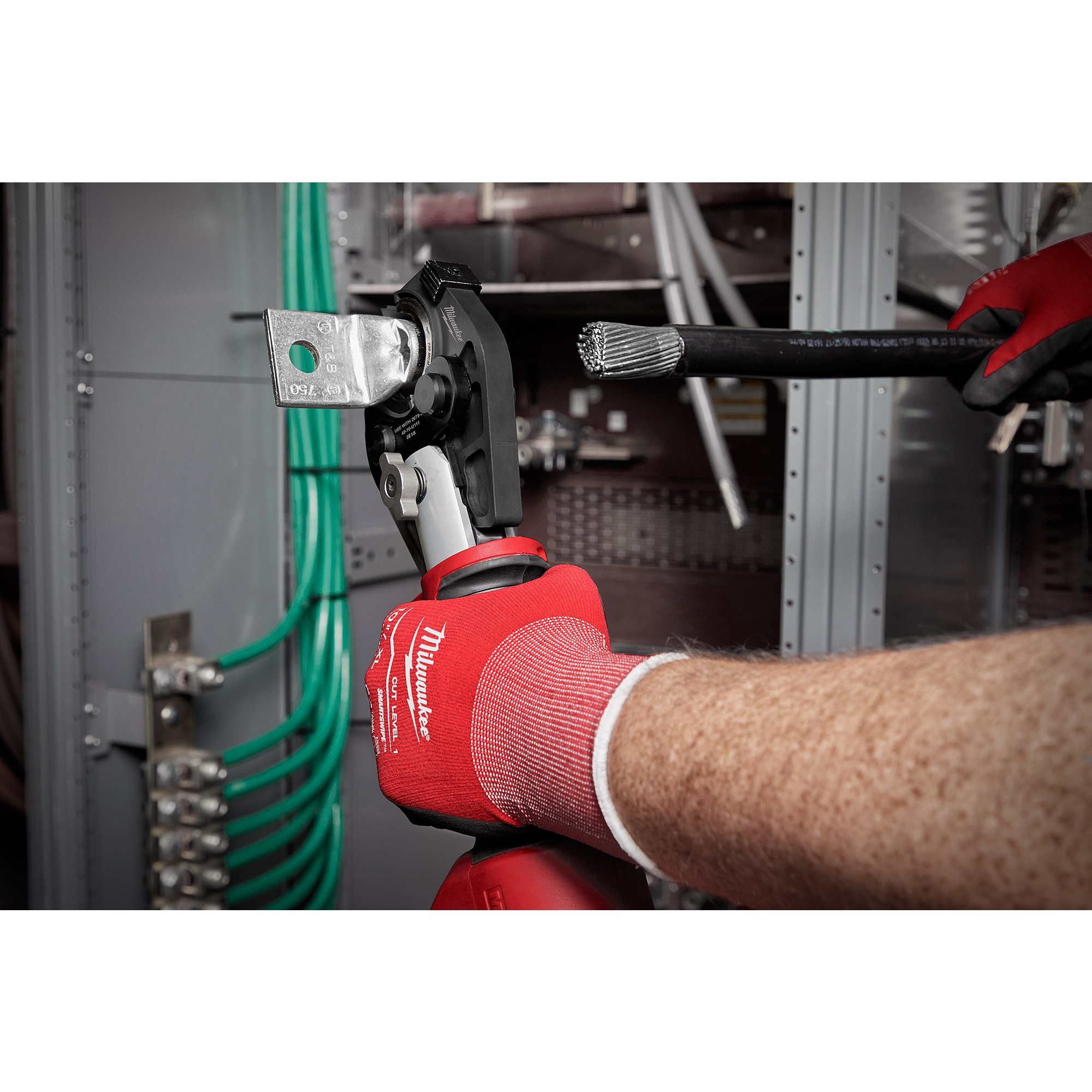

The MILWAUKEE® 750 MCM Cu/Al Crimping Jaw with 400-750 MCM Al 6T U Style Dies is the Most Accurate Way to Crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 - 750 MCM Copper & Dual Rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. The crimping jaw uses Milwaukee U Style Dies that have vivid wire size markings and industry-standard color markings. The aluminum crimper dies imprint wire size onto the connector after crimp completion. The crimper is made for commercial electricians and is designed to provide ease of use and easy inspection. For use with the M18™ Force Logic™ 600 MCM Crimper (2679-20).
-
BrandMilwaukee®
-
UPC045242531646
-
Manufacturer Part Number49-16-750A
-
CountryUSA|Canada
-
MaterialStainless Steel
-
ColorBlack/Red/Silver
-
Dimensions4.48 in L x 3.3 in W x 5.38 in H
-
Suitable For Use WithM18™ FORCE LOGIC™ 2679-20 and 49-16-U111 600 kcmil Crimper
- 100% Inspected for Critical Dimensions and Serialized - Ensures Crimp Quality
- Die Size Pressed into Connector matches wire size Eliminating Cross Referencing
- Proprietary Jaw - Holds Connector for Instant Alignment

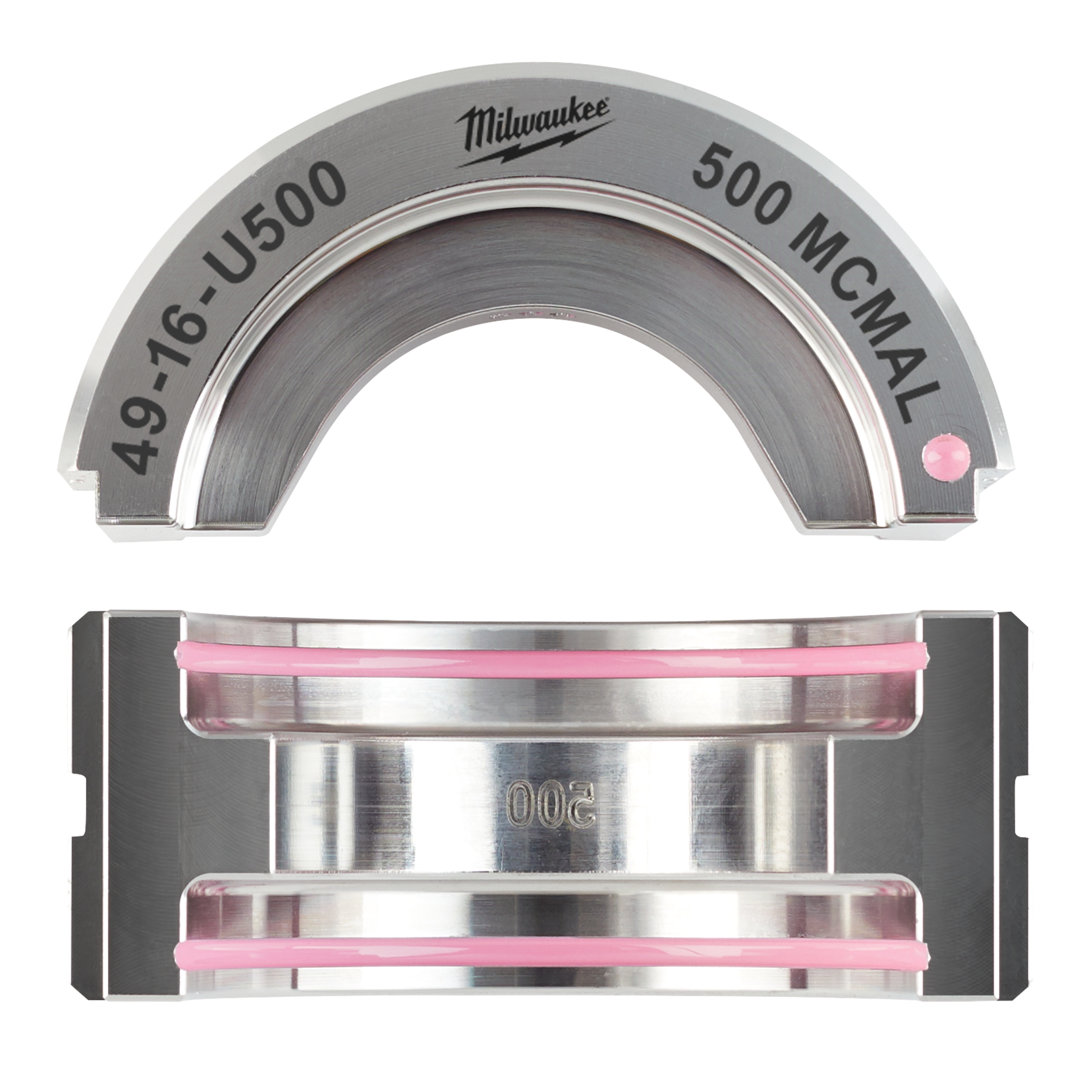

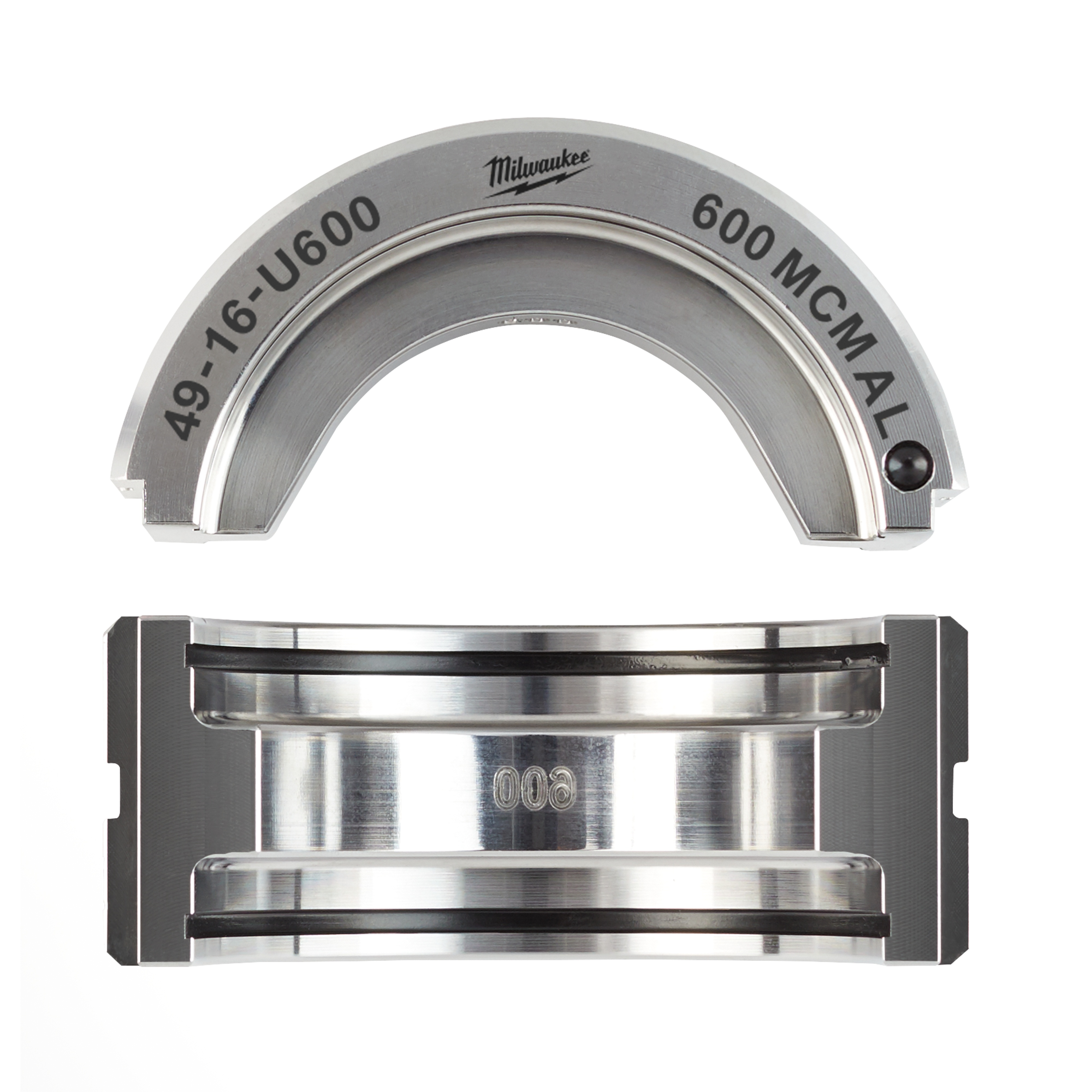

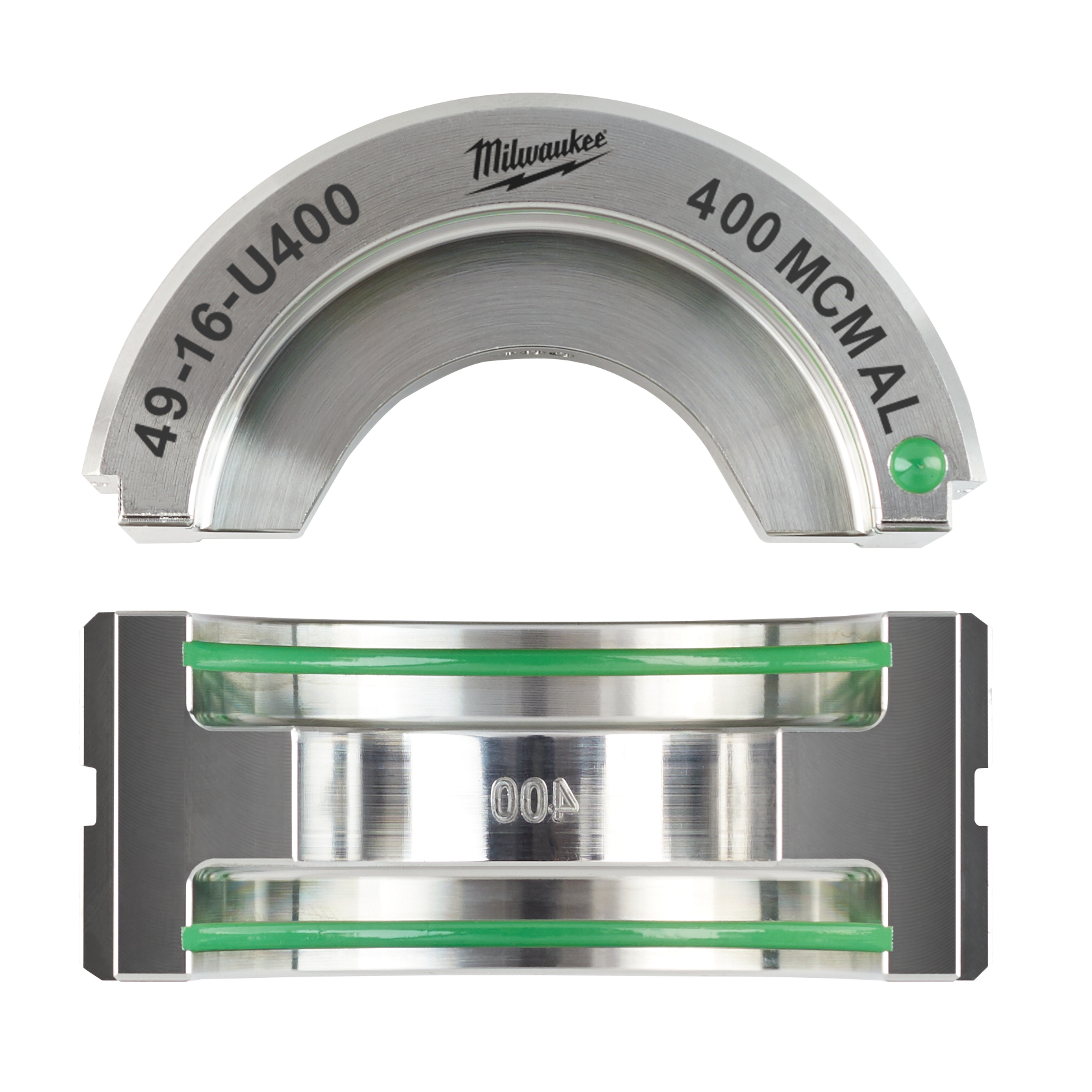

- Wire Size Marked on Each Die - Easy Identification
- Wire size marked on each die easy identification
- 100 Percent Inspected for critical dimensions and serialized - ensures crimp quality
-
Alternative Part Number14819020
-
UNSPSC23241616
-
IDEA Index ID14819020
-
Package DescriptionEACH
-
WarrantyNo Warranty
