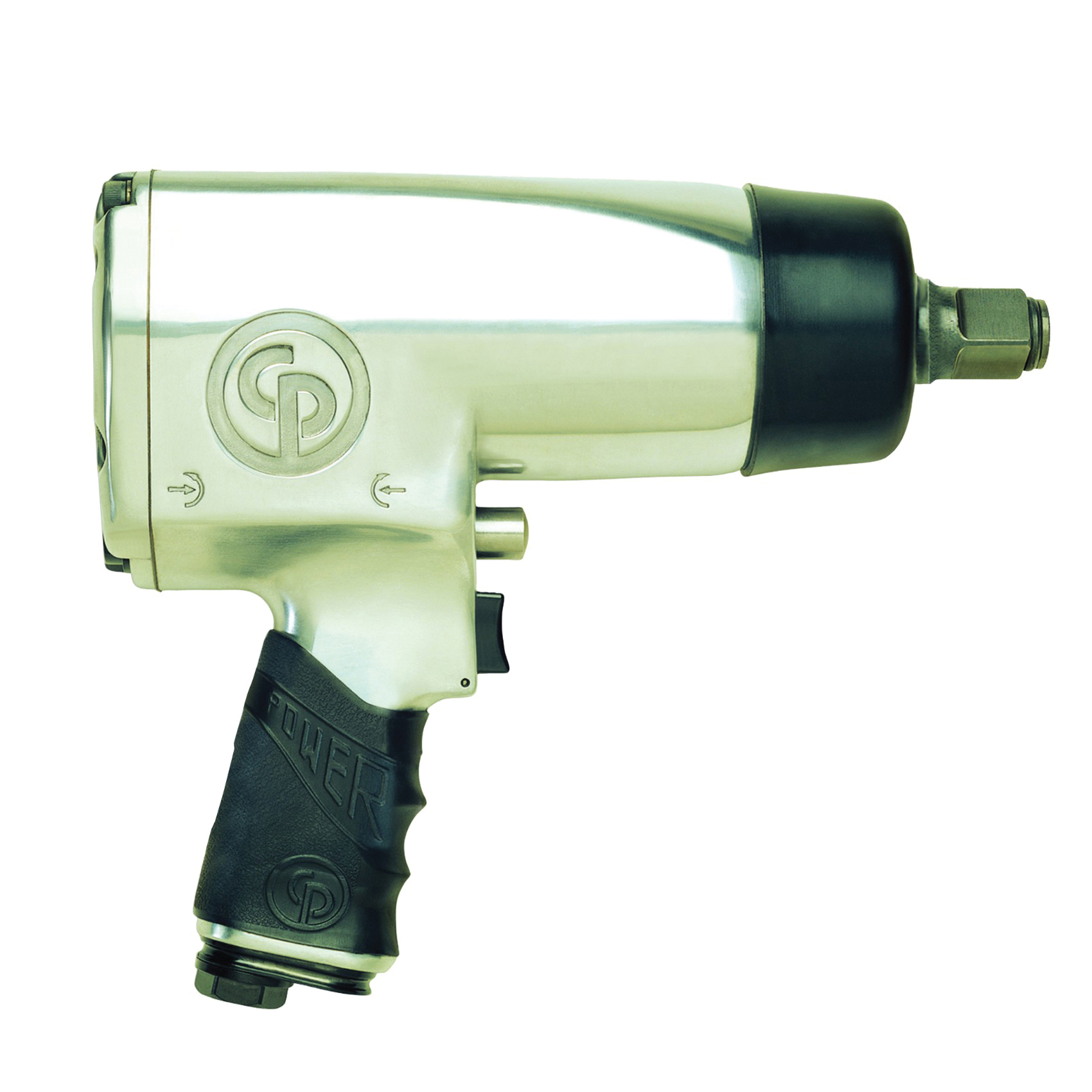

Chicago Pneumatic T024598 Impact Wrench, 3/4 in Drive, 203 to 949 N-m Forward/ 1356 N-m Reverse Torque, 24 cfm Air Flow, 9.63 in OAL
The CP772 Series is the Classic 3/4 Inch impact wrench, designed with a pin clutch mechanism in oil bath and a metal motor housing for high durability.
-
BrandChicago Pneumatic
-
UPC015451418120
-
Manufacturer Part NumberT024598
-
CountryUSA|Canada
-
Tool/KitBare Tool
-
Torque Rating203 to 949 N-m Forward/ 1356 N-m Reverse
-
Minimum Hose Size1/2 in
-
Handle TypePistol/Comfort Grip
-
Air Flow Rate24 cfm
-
Air Inlet3/8 in
-
Air Pressure90 psi
-
Sound Level107 dBA Power/96 dBA Pressure
-
Speed4200 rpm
-
Blows per Minute900 bpm
-
Drive Size3/4 in
-
Drive TypeSquare
-
Overall Length9.63 in
- General maintenance
- Smooth operation thanks to the DYNA-PACT clutch
- Comfortable use thanks to low noise and vibration levels
- Good durability
- 3/4 in impact wrench with ring retainer
- DYNA-PACT oil bath clutch
- Single handed reverse button with 4-settings of power
- Comfortable handle grip
- 360 deg air inlet swivel
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 11C938 |
-
Alternative Part NumberCP772H
-
UNSPSC27131501
-
Package Description1/PK
-
Standards/ApprovalsISO-28927-2|PROP65: This Product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Instruction/Installation Manual
-
Catalog
-
Owners/User Manual
