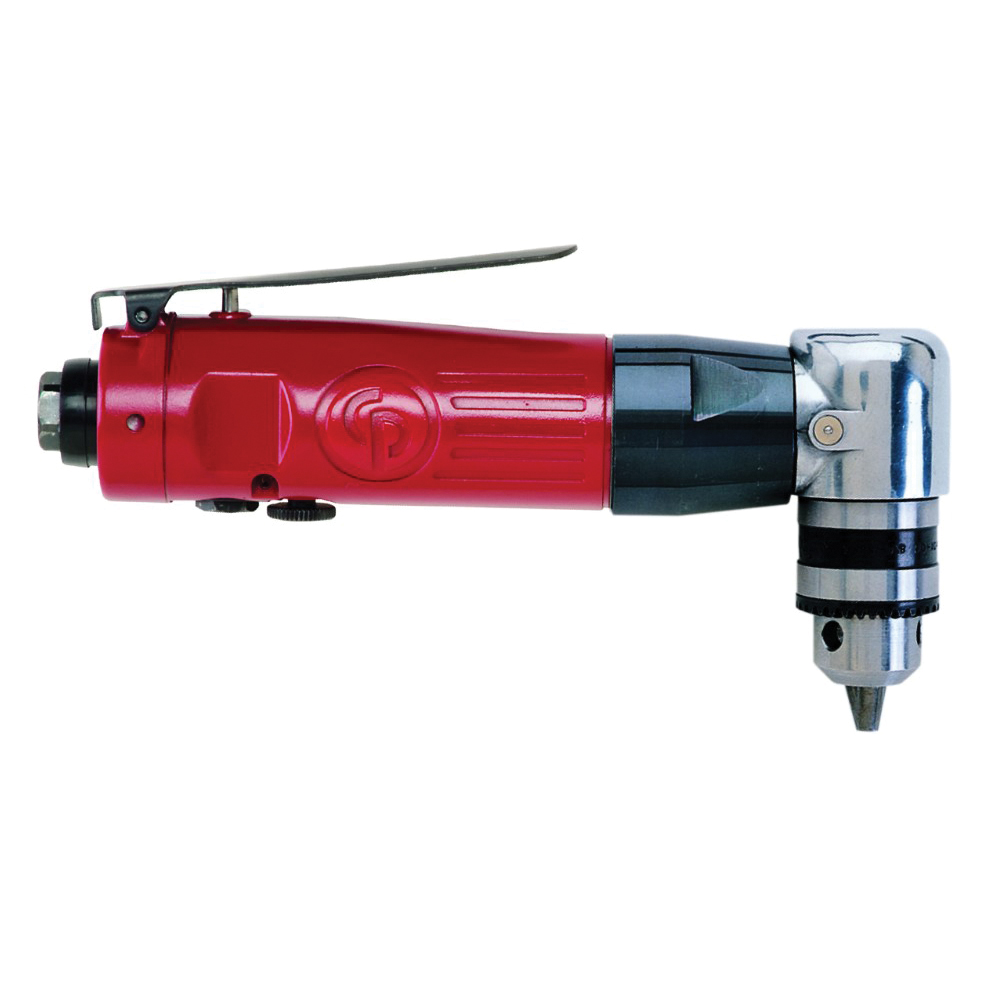

Chicago Pneumatic T023999 Reversible Angle Pneumatic Drill, 3/8 in Chuck, 0.27 hp, 20.614 to 21 cfm Air Flow, 8.3 in OAL
Chicago Pneumatic T023999 Reversible Angle Pneumatic Drill, 3/8 in Chuck, 0.27 hp, 20.614 to 21 cfm Air Flow, 8.3 in OAL
-
BrandChicago Pneumatic
-
UPC015451394912
-
Manufacturer Part NumberT023999
-
CountryUSA|Canada
-
Tool/KitBare Tool
-
Chuck Size3/8 in
-
Minimum Hose Size3/8 in
-
TypeReversible Angle
-
ReversibleYes
-
Handle TypeAngled
-
Air Flow Rate20.614 to 21 cfm
-
Air Inlet1/4 in
-
Horsepower0.27 hp
-
Sound Level106 dBA Power/95 dBA Pressure
-
Speed1800 rpm
-
Overall Length8.3 in
- Compact angle head for general maintenance
- Operator control from startup through rundown
- Ideal for drilling and screw driving in confined areas
- Compact low-profile head to get into confined spaces
- Reverse valve for easy directional change
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 11C973 |
-
Alternative Part NumberCP879
-
UNSPSC27131505
-
Package Description1/PK
-
Standards/ApprovalsISO-28927-5|PROP65: This Product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Instruction/Installation Manual
