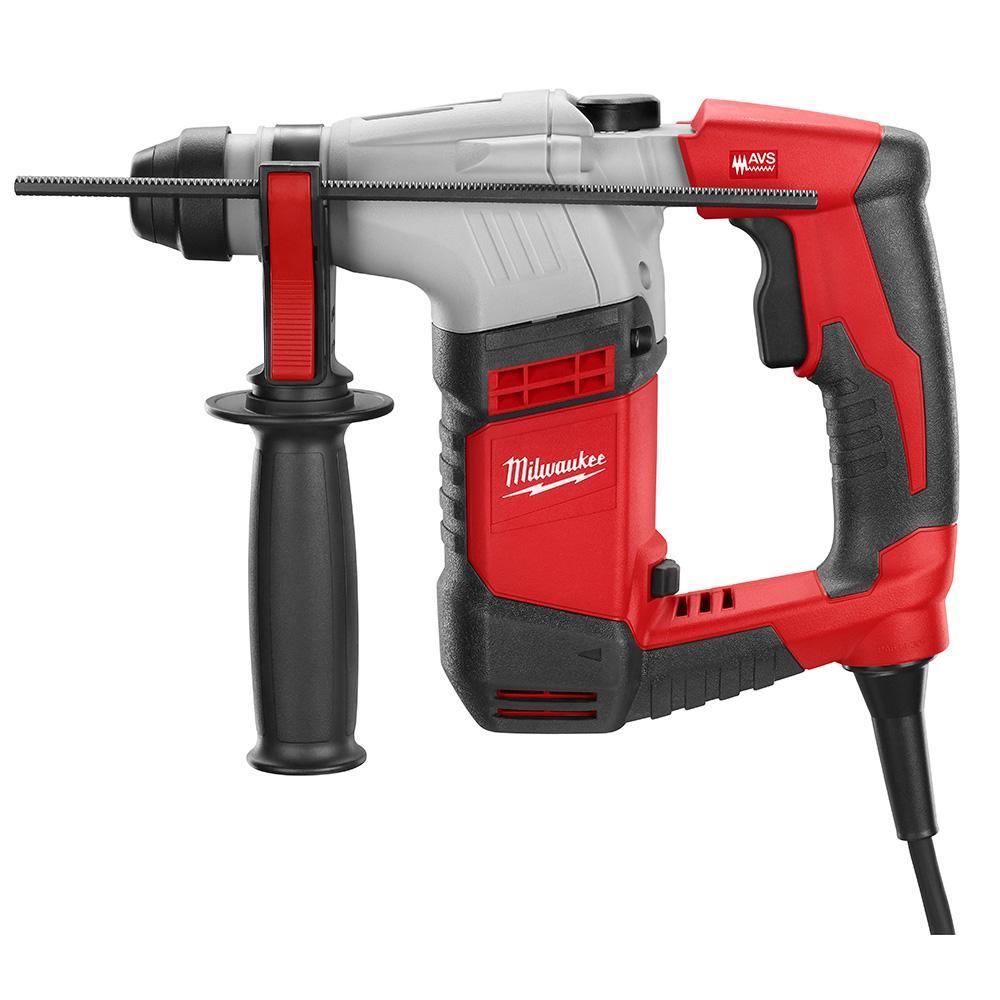

Milwaukee® 5263-21 Reversing Corded Rotary Hammer Kit, 5/8 in SDS Max® Chuck, 4400 bpm, 0 to 3700 rpm No-Load, 2-1/8 in Max Core Bit Compatibility, 5/8 in Max Solid Bit Capacity, 10-9/16 in OAL
The most compact 5/8 in. hammer drill on the market is 30% lighter and 65% faster – with plenty of drilling power. At just 10.9 in. long and 4.6 Lbs., Milwaukee Tool 5/8 in. SDS-Plus rotary hammer makes drilling overhead and in tight spaces easier, yet it’s powerful enough for most professional applications. With a 5.5 amp motor, it delivers 0-3, 700 RPM, 0-4,400 bpm and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee's unique anti-vibration system provides added comfort by minimizing vibration. A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The kit includes a side handle, depth rod and carrying case.
-
BrandMilwaukee®
-
UPC045242192328
-
Manufacturer Part Number5263-21
-
CountryUSA|Canada
-
Max Core Bit Compatibility2-1/8 in
-
Tool/KitKit
-
Chuck Size5/8 in
-
Maximum Solid Bit Capacity5/8 in
-
Chuck TypeSDS Max®
-
Torque Rating1.5 ft-lb
-
TypeReversing
-
ReversibleYes
-
Handle TypeD-Handle/Drop Motor/Side
-
Voltage Rating120 VAC
-
Control TypeVariable Speed Trigger Switch/Forward/Reverse Switch/Clutch
-
No-Load Speed0 to 3700 rpm
-
Amperage Rating5.5 A
-
Impact Energy1.5 ft-lb
-
Number of Speeds2
-
Blows per Minute4400 bpm
-
Overall Length10-9/16 in

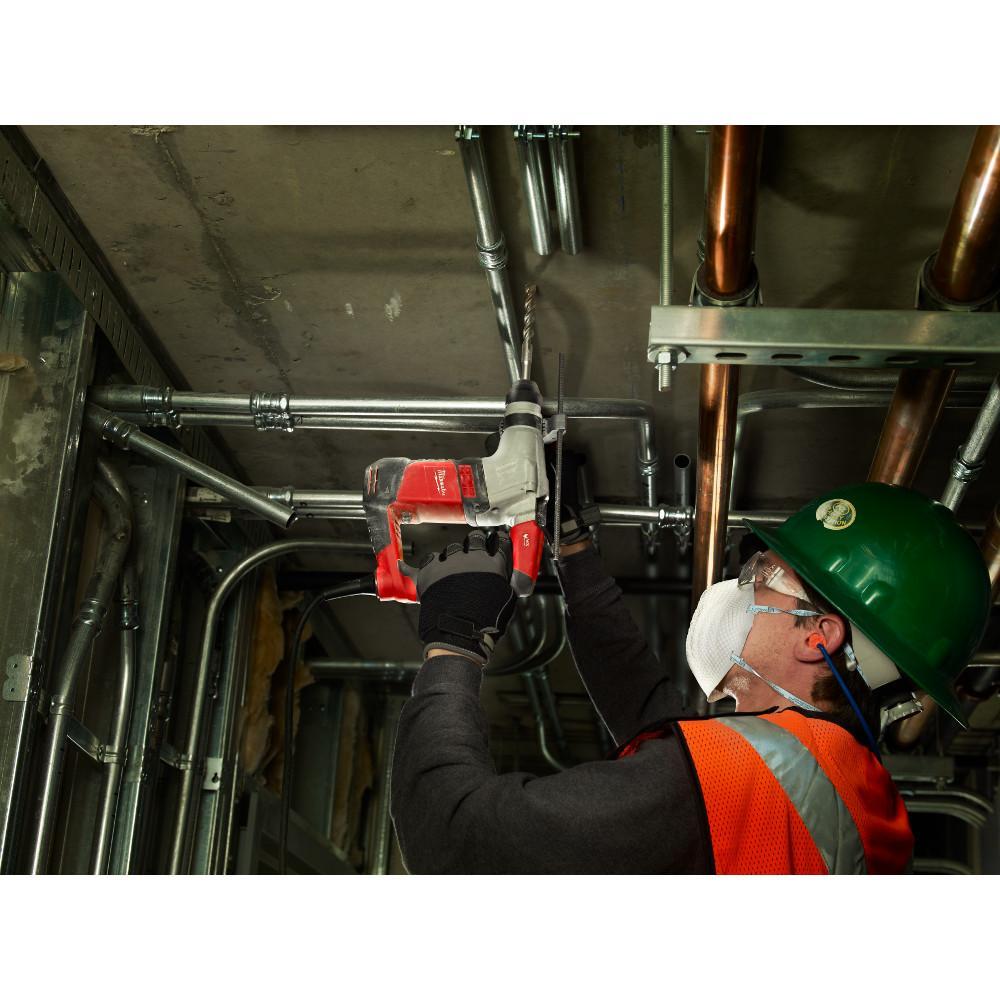

- Lightweight 4.6 lb design - reduces fatigue when you drill overhead and in horizontal applications
- Compact 10.9 in profile - lets you work more efficiently in tights spaces
- 2-mode operation - choose rotary hammer or rotation only for added versatility
- AVS - anti-vibration system - delivers maximum comfort by minimizing vibration
- Mechanical clutch - protects the motor when the bit binds
- Powerful 5.5 A Motor, Delivers 0-3, 700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque, providing up to 65 Percent faster drilling speeds
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6PED2 |
| Grainger | 6PED2 |
| Grainger | 6PED2 |
-
Alternative Part Number12349012
-
UNSPSC27112705
-
IDEA Index ID12349012
-
IncludesCarrying Case, Depth Rod and Side Handle
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|ETL Listed|UL Listed
-
Warranty5 years
