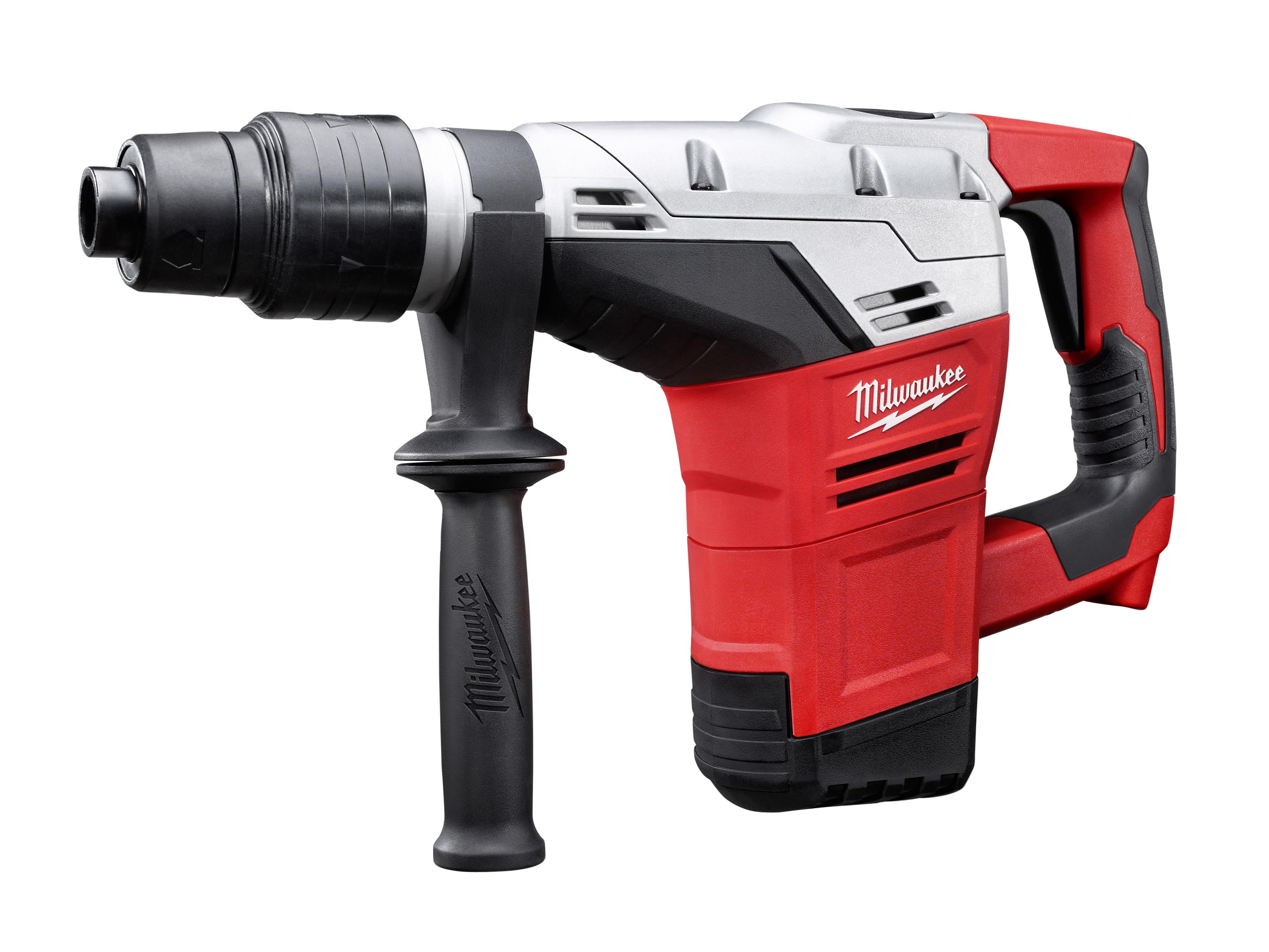

Milwaukee® 5316-21 Corded Rotary Hammer Kit, 1-9/16 in Spline Chuck, 3000 bpm, 450 rpm No-Load, 4 in Max Core Bit Compatibility, 1-9/16 in Max Solid Bit Capacity, 17-3/4 in OAL
Get optimal power for concrete drilling and chipping applications. The 1-9/16 in. spline rotary hammer offers a heavy-duty 5.5 ft-lbs of impact energy, plus 450 RPM and 3,000 bpm for fast, solid performance, even when drilling in hard aggregate. Constant power technology (CPTTM) ensures consistent drilling power for the toughest applications handled by electrical, mechanical, plumbing, HVAC and general construction contractors. A 12-position chipping adjustment lets you maintain the ideal hammer position while chipping in any orientation. A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The tool comes with a side handle and carrying case.
-
BrandMilwaukee®
-
UPC045242223886
-
Manufacturer Part Number5316-21
-
CountryUSA|Canada
-
Max Core Bit Compatibility4 in
-
Tool/KitKit
-
Chuck Size1-9/16 in
-
Maximum Solid Bit Capacity1-9/16 in
-
Chuck TypeSpline
-
Torque Rating5.5 ft-lb
-
ReversibleYes
-
Handle TypeD-Handle/Drop Motor/Side
-
Voltage Rating120 VAC
-
Control TypeVariable Speed Trigger Switch/Forward/Reverse Switch/Clutch
-
No-Load Speed450 rpm
-
Amperage Rating10.5 A
-
Housing MaterialMetal/Plastic
-
Impact Energy5.5 ft-lb
-
Number of Speeds2
-
Blows per Minute3000 bpm
-
Overall Length17-3/4 in
- Powerful 10.5 A motor delivers 450 rpm and 3000 bpm
- Powerful hammer mechanism - delivers 5.5 ft-lb of impact energy for drilling in hard aggregate
- CPT™ - constant power technology - delivers consistent performance in tough applications
- Mechanical clutch - protects the tool when the bit binds up
- 2-mode operation - rotary hammer and hammer only for maximum versatility
- 12-position chipping adjustment - allows the user to maintain the desired hammer position while chipping in any orientation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6PED5 |
| Grainger | 6PED5 |
| Grainger | 6PED5 |
-
Alternative Part Number13926160
-
UNSPSC20111603
-
IDEA Index ID13926160
-
IncludesCarrying Case and Side Handle
-
Package Description1/PK
-
Standards/ApprovalsCSA Certified|ETL Listed|UL Listed
-
Warranty5 years
