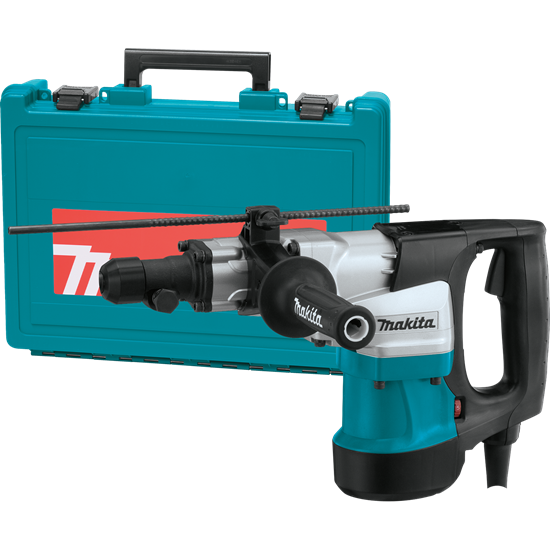

Makita® HR4041C Corded Rotary Hammer Drill, 1-9/16 in Spline Chuck, 1300 to 2600 bpm, 230 to 460 rpm No-Load, 4-5/8 in Max Core Bit Compatibility, 1-9/16 in Max Solid Bit Capacity, 16-7/8 in OAL
The Makita® HR40410C Toothed shaft 1-9 / 16 in rotary hammer features a powerful 12 a engine designed with a central field of interlocking steel blades, dual-bearing rotor and large switch surface area for energy efficient transfer produces up to 230 to 460 rpm and 1300 to 2600 bpm and has 2 modes of operation for just hammering and hammering with rotation soft start functionality facilitates control and improves accuracy while the sequential impact counter promotes faster work.
-
BrandMakita®
-
UPC088381081191
-
Manufacturer Part NumberHR4041C
-
CountryCanada
-
Max Core Bit Compatibility4-5/8 in
-
Tool/KitBare Tool
-
Chuck Size1-9/16 in
-
Maximum Solid Bit Capacity1-9/16 in
-
Chuck TypeSpline
-
Voltage Rating120 VAC
-
Control TypeForward Switch
-
No-Load Speed230 to 460 rpm
-
Amperage Rating12 A
-
Impact Energy6.8 ft-lb
-
Blows per Minute1300 to 2600 bpm
-
Overall Length16-7/8 in
- Constant speed control that automatically applies more power to the engine to keep the speed under load and finish more challenging jobs
- Torque limiter clutch designed to reduce damage to gears by releasing gears automatically if the bit gets stuck
- Soft start feature gradually increases speed to eliminate start up shock
- Variable speed dial allows operator to adjust speed based on materials or application
- Auto shut-off carbon brushes shut-off motor when carbon brushes require replacement
- No load motor suppression limits vibration and bit deflection when idling
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Sequential impact counter that produces hammering measured during rotation to minimize overlap of drill impacts for drilling up to 50% faster
- Automatic brush-off system to protect the switch from damage
- Two-mode operation "hammering only" or "hammering with rotation"
- No hammering at rest function help increase tool life
- High quality aluminum housing for durability
- Engineering advantage of the Makita® engine with a central field of interlaced steel blades, rotor with dual bearings and more copper switch bars, increasing energy transfer efficiency for more power and longer life
- 16.4 ft cable length
- 9.2 J impact power
- 15 m/sq-s vibration
- 1/2 to 1 in optimal range (concrete drilling)
- Powerful 12 A motor produces 6.8 ft-lb power to handle the most demanding applications
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5GDX1 |
| Grainger | 5GDX1 |
-
UNSPSC20111603
-
Includes321248-4, 416549-4 Lateral Handle and 1582578 Carrying Case
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|OSHA Compliant|UL Listed
-
Instruction/Installation Manual
-
Line Drawing
