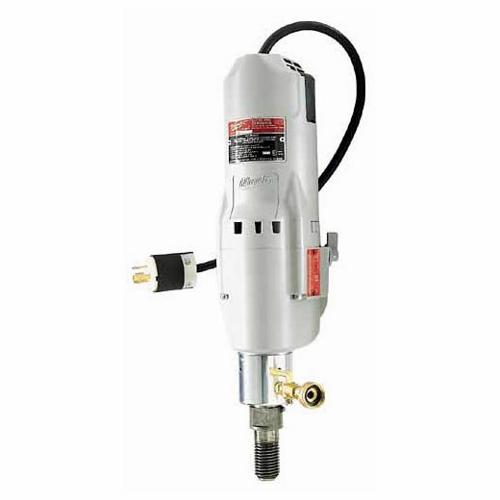

Milwaukee® 4079 Diamond Coring Motor, 300 to 600 rpm Speed, 4.8 hp, 120 VAC, Metal Housing, 20 A
Diamond coring motors are used with Vac-U-Rig® and Dymorig diamond core rigs to drill holes into reinforced concrete. This 20 A model features 4.8 hp peak with a 300 rpm or 600 rpm operating speed. The 4079 uses a shear pin to protect gears and motor against overload. Shear pins are easily replaced and extra pins are included with the unit. This unit will handle core bits from 4 to 14 in Dia.
-
BrandMilwaukee®
-
UPC045242009305
-
Manufacturer Part Number4079
-
CountryUSA
-
Tool/KitKit
-
Voltage Rating120 VAC
-
Cord Type2.79 ft Corded
-
Amperage Rating20 A
-
Horsepower4.8 hp
-
Housing MaterialMetal
-
Speed300 to 600 rpm
- Shear pin protection protects gears and motor
- Built-in water swivel
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 38D740 |
| Grainger | 38D740 |
-
Alternative Part Number8564492
-
UNSPSC27112703
-
IDEA Index ID8564492
-
Includes(1) Built-In Water Swivel, (6) Extra Shear Pins, (1) Open End Wrench, (1) Water Control Valve and (1) Water Hose Adapter
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|UL Listed
-
Warranty5 years
-
Owners/User Manual
-
Full Engineering Drawing
