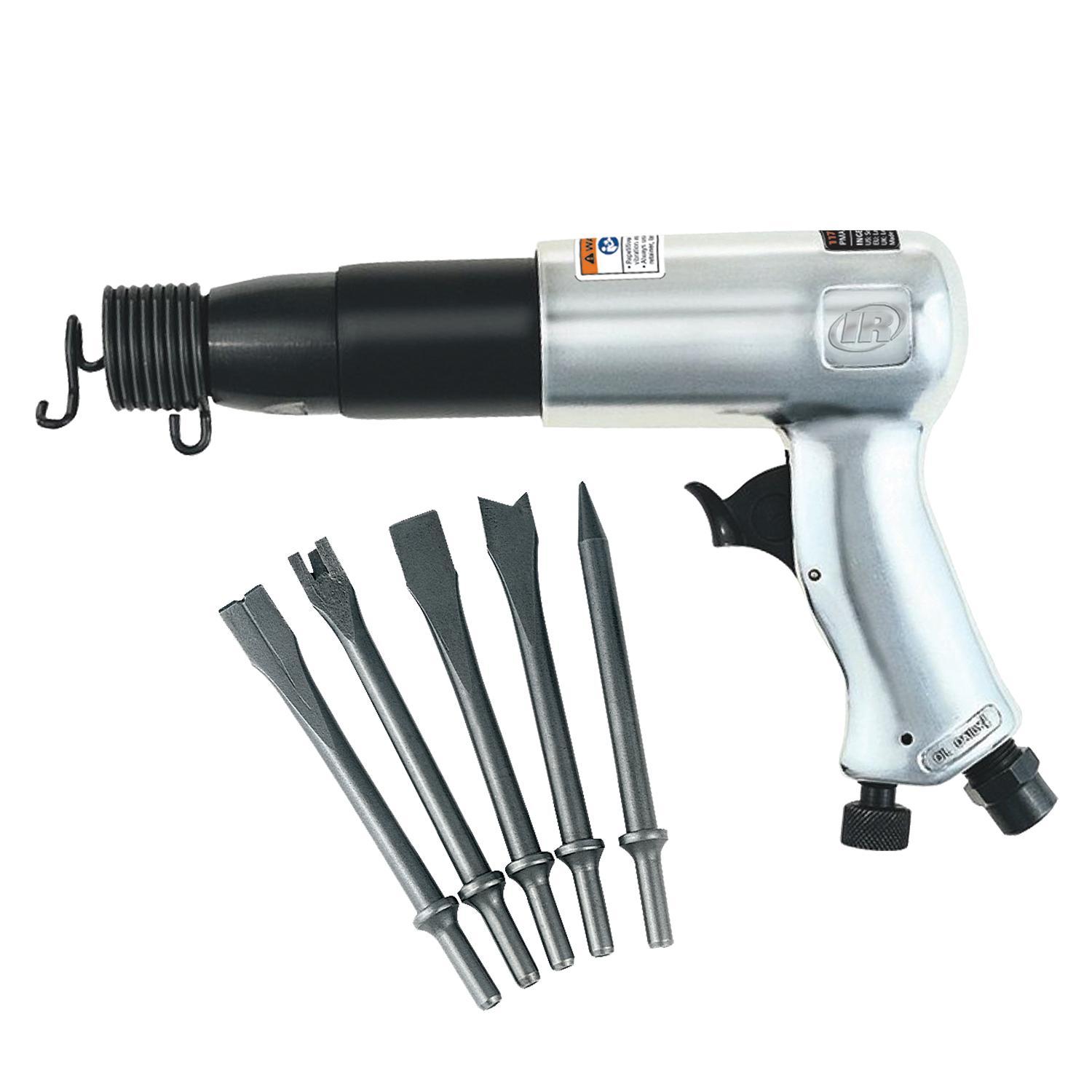

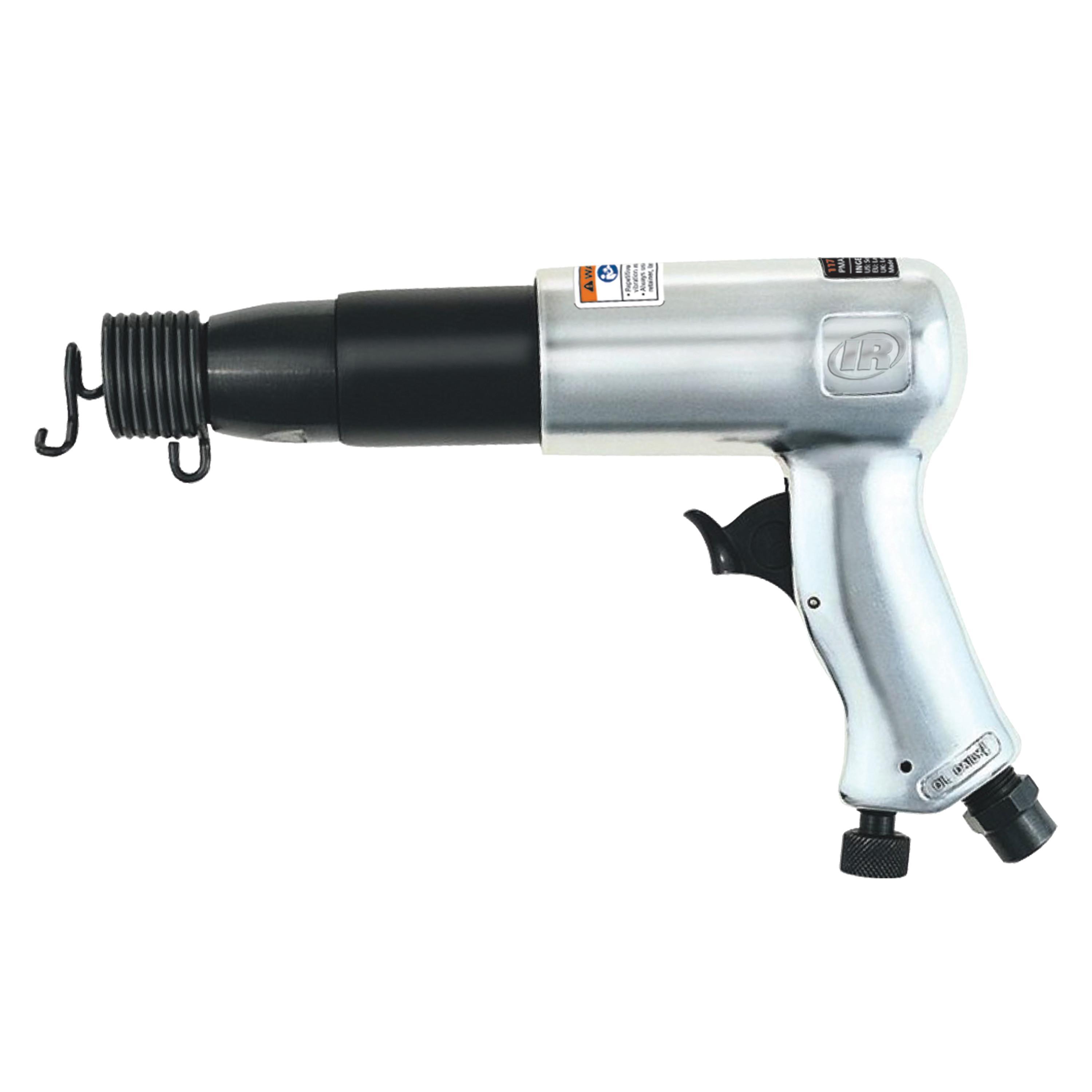

Ingersoll Rand 117K Standard Air Hammer, 0.69 in Dia Bore, 2000 bpm, 3.5 in L Stroke
The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.
-
BrandIngersoll Rand
-
UPC663023000541
-
Manufacturer Part Number117K
-
CountryUSA
-
Minimum Hose Size3/8 in
-
Handle TypePistol Grip
-
Air Flow Rate14 cfm
-
Air Inlet1/4 in NPT
-
Housing MaterialAlloy Steel
-
Dimensions9.9 in L
-
Blows per Minute2000 bpm
-
Bore Diameter0.69 in
-
Tool/KitBare Tool
-
TypeStandard
-
Sound Level103.5, 116.5 dBA
-
Stroke Length3.5 in
- Control, This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool
- Longer Life, To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel
- Longer Life, To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel
-
IncludesTool, Retainer, Manuals and 5 Piece Chisel Set
-
UNSPSC27131504
-
Instruction/Installation Manual
-
Full Engineering Drawing
-
Line Drawing
