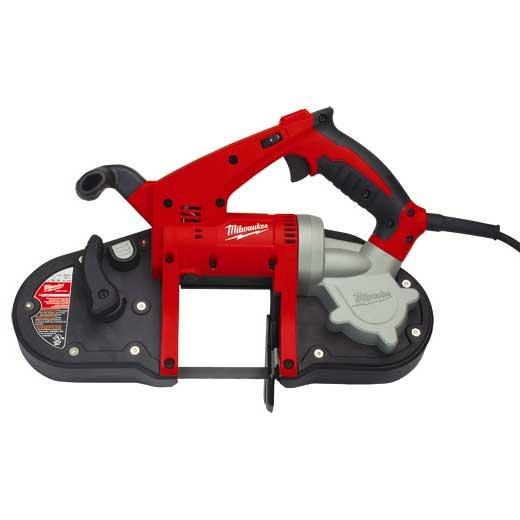

Milwaukee® 6242-6 Compact Band Saw, 3-1/4 x 3-1/4 in Cutting, 35.375 in L x 0.5 in W x 0.02 in THK Blade, 120 VAC
At only 9-1/2 lbs and 16 in. in length, the Milwaukee compact band saw is the perfect tool for cutting metal in-place, overhead or in tight spaces. With 3-1/4 in. cut capacity and low vibration, this saw delivers the cleanest cuts on the most common materials including strut, 2-1/2 in. conduit, 3 in. angle iron, 3 in. copper and threaded rod without ruining the threads. The compact band saw also features a work light, blade ejection system and a tool-free adjustable material guide that allows the user to make cuts flush to ceilings or walls.
-
BrandMilwaukee®
-
UPC045242198221
-
Manufacturer Part Number6242-6
-
CountryUSA
-
Tool/KitBare Tool
-
TypeCompact
-
Handle TypeMulti-Grip T-Handle
-
Voltage Rating120 V AC
-
Control TypeOn/Off Trigger Switch
-
Cord Type3-Wire
-
Amperage Rating7 A
-
Cutting Capacity3-1/4 x 3-1/4 in
-
Housing MaterialMetal
-
Dimensions16 in L
-
Blade Size35.375 in L x 0.5 in W x 0.02 in THK
-
Strokes per Minute200/360 spm
- 45% lighter than deep cut - 9.5 lb. compact light weight design for cutting overhead and in tight places
- 200-360 SFPM variable speed dial- adjusts the speed for more accurate cuts and hard materials
- 3-1/4 in cut capacity - cuts most common materials for electrician, plumber and mechanical cutting applications, single pass cut on 3 in copper, 3 in angle iron, 2-1/2 in conduit
- Tool-free adjustable material shoe - quickly adjusts the shoe and allows flush cuts when working with installed materials against walls and ceilings
- LED work light - illuminates the cut line in tight spaces and dark areas
- Blade ejection system-quickly change the blade by moving the material guide into the up position and depressing the blade ejection button
- Drop resistant pulley guard - engineered geometries and high impact polymer
- Cast aluminum gear case - withstands jobsite abuse and maintains gear positioning
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4FTJ2 |
-
Alternative Part Number10811006
-
UNSPSC27112709
-
IDEA Index ID10811006
-
Package Description1/PK
-
Standards/ApprovalsUL Listed
