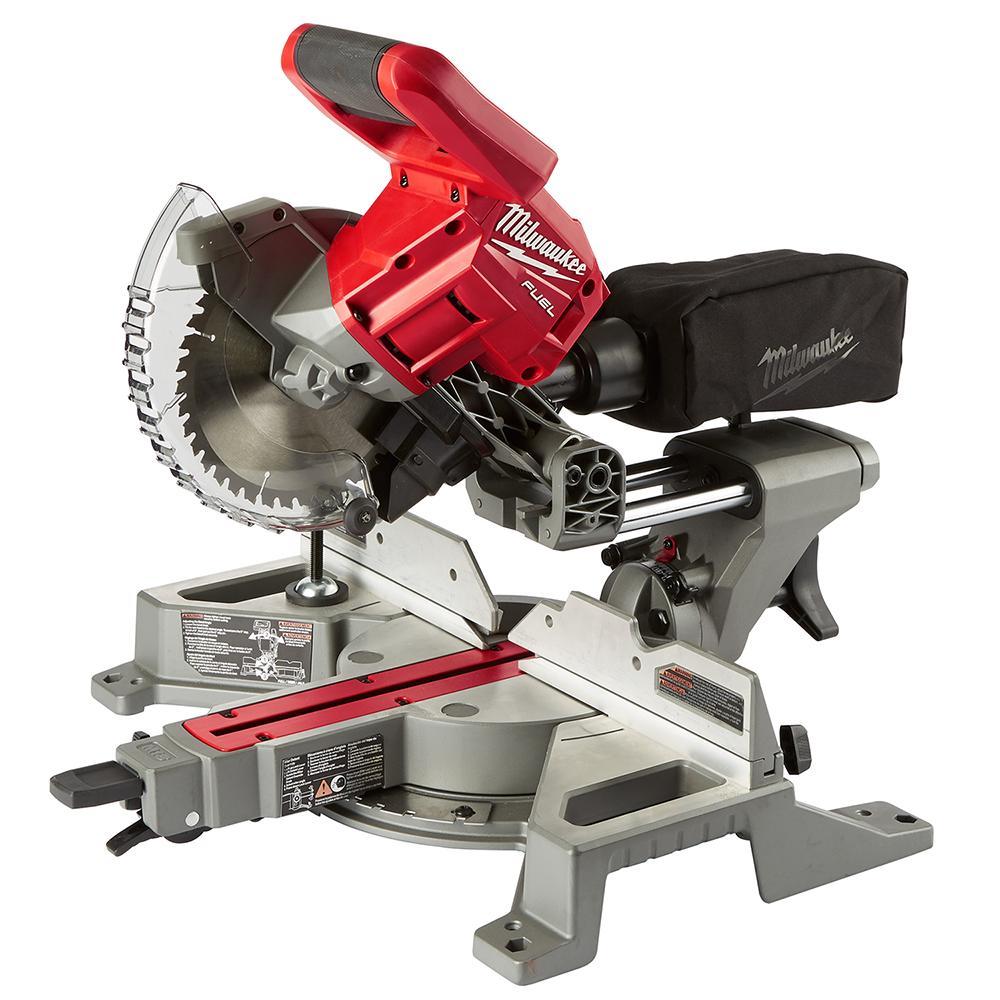

Milwaukee® M18 FUEL™ 2733-20 Kit Cordless Miter Saw, 7-1/2 in Dia Blade, 5/8 in Arbor/Shank, 3-1/2 in Cutting, 48 deg Bevel
The M18 fuel 7-1/4 in. dual bevel sliding compound miter saw was designed for the demand needs of the professional carpenter and remodeler. Designed to increase productivity and efficiency on the jobsite, the 2733 combines the best in accuracy, portability and performance. Weighing in at only 28 lbs with battery, the 2733 is the lightest weight saw in its class. Dual bevel functionality provides users the most efficient and productive way make a variety of different cuts without flipping or turning the work piece. The combination of the POWERSTATE brushless motor and M18 REDLITHIUM XC5.0 battery delivers over 600 cuts per charge for all day run-time on a single charge.
-

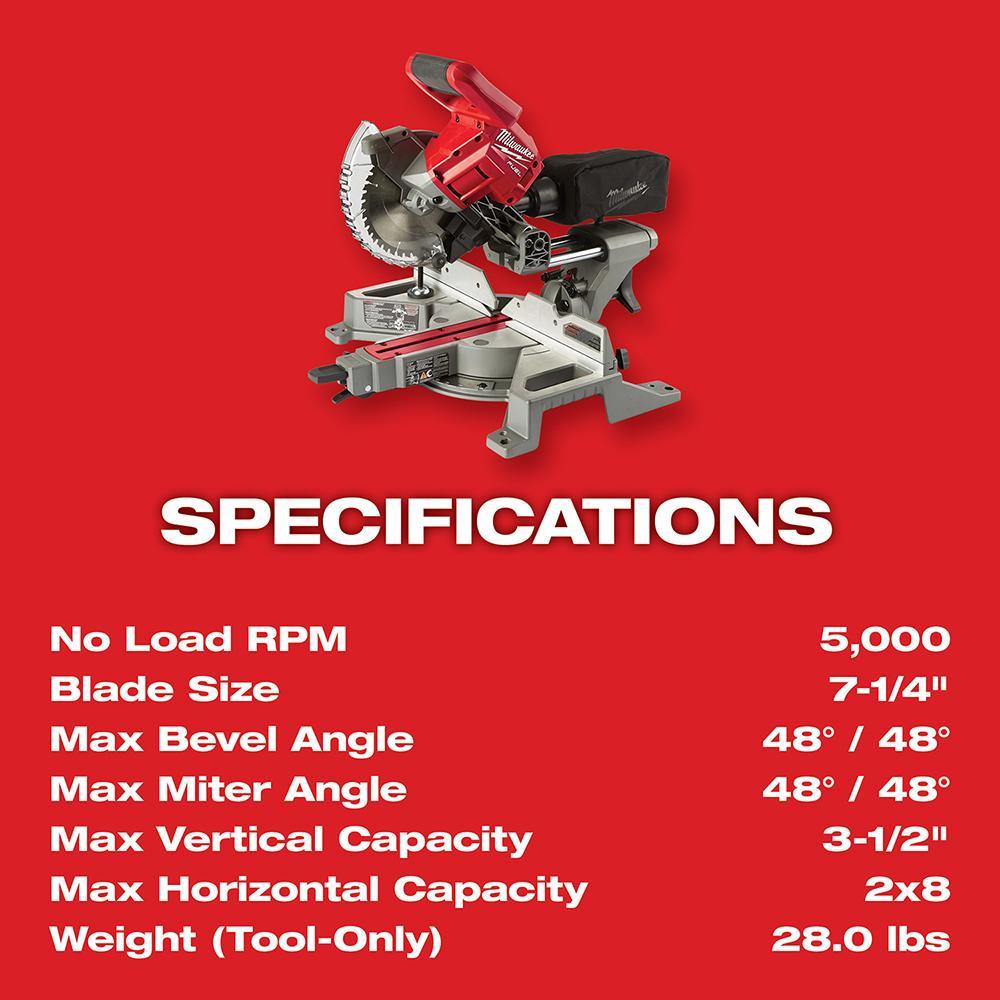

BrandMilwaukee®
-
UPC045242508150
-
Manufacturer Part Number2733-20
-
CountryUSA|Canada
-
Voltage Rating18 V DC
-
Arbor/Shank Size5/8 in
-
Cutting Capacity3-1/2 in
-
Housing MaterialWood
-
Bare Tool/KitKit
-
Battery TypeREDLITHIUM™
-

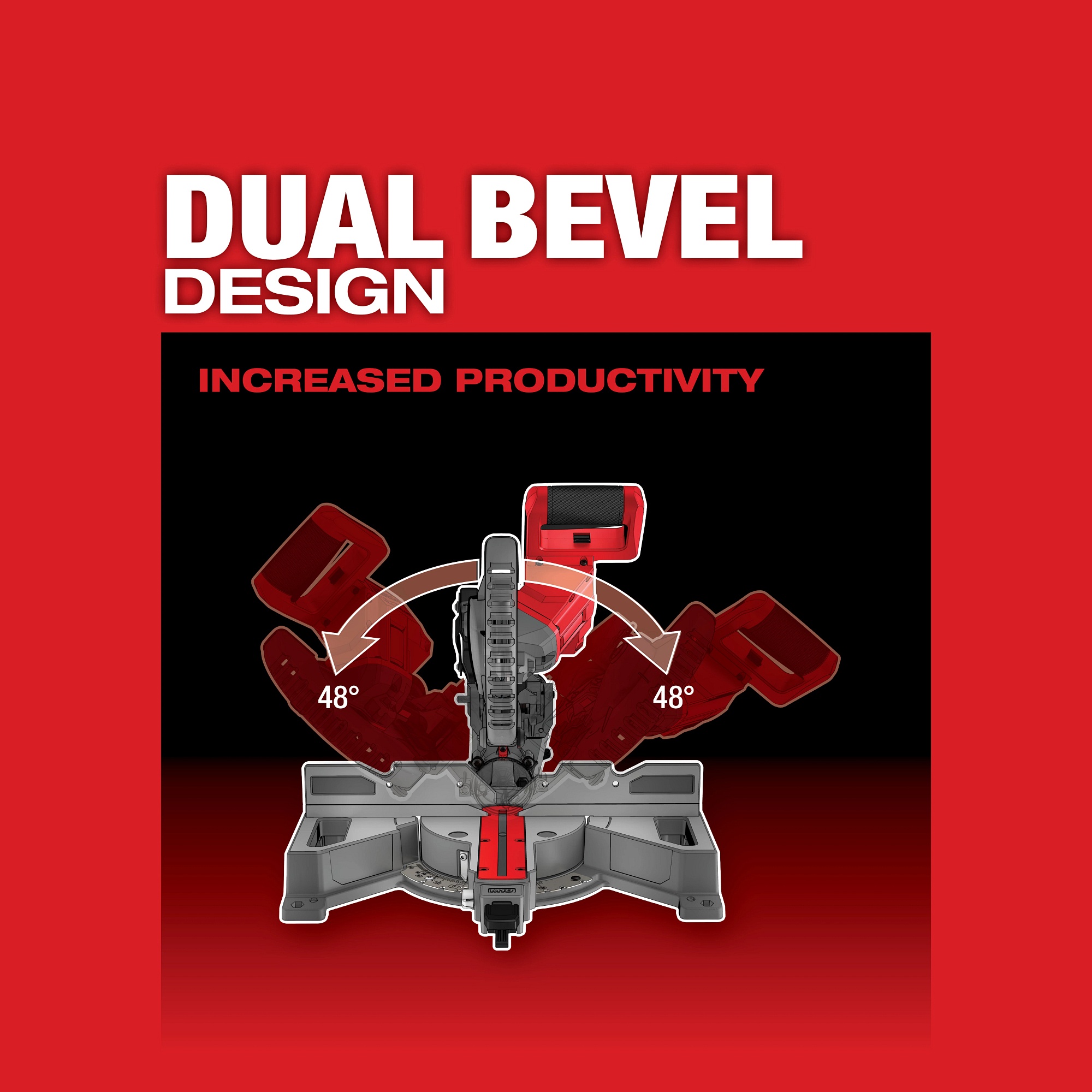

SlideDual Bevel
-
Bevel Capacity48 deg
-
Bevel Stops45/48 deg
-
Speed5000 rpm
-
Blade Size7-1/2 in Dia
-
Blade TypeCarbide Tipped

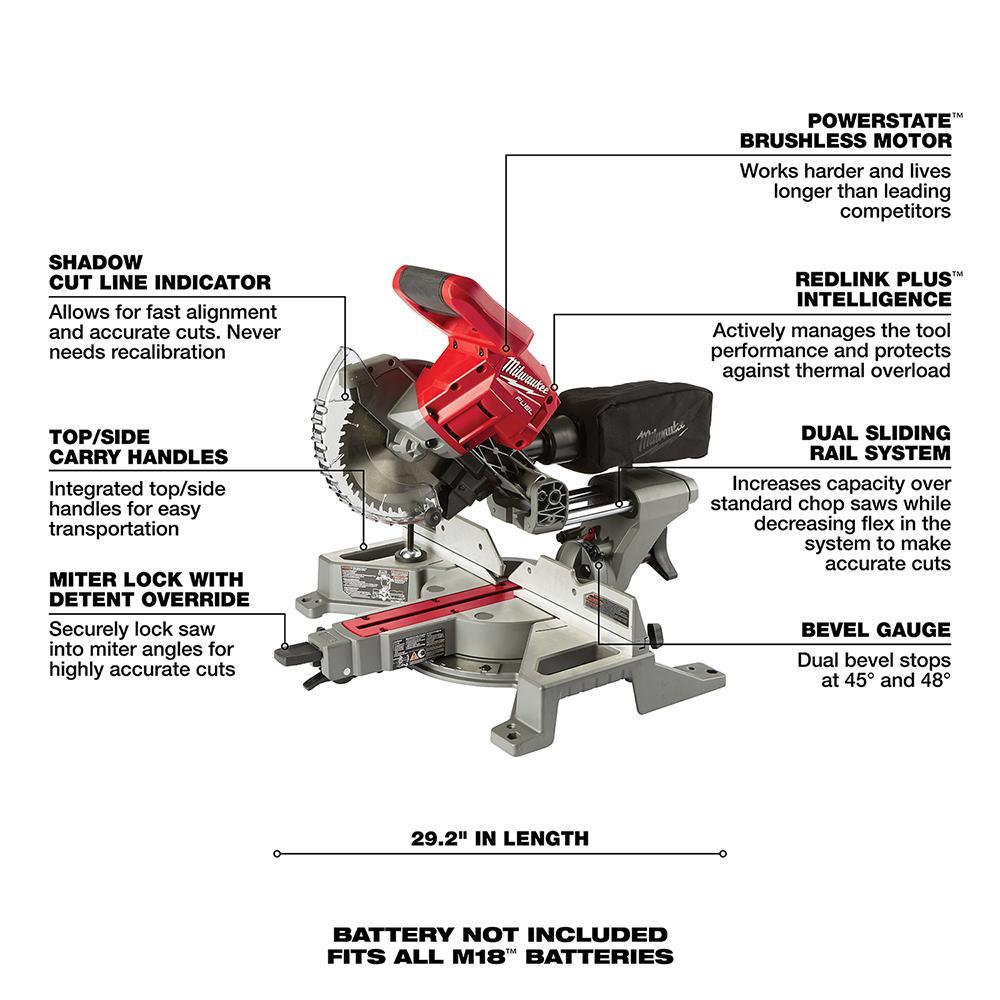

- 2x8 Horizontal Capacity (lying flat at 90)
- 3-1/2 Vertical Capacity (base against fence)
- Cam Locking Miter Detent System
- Integrated top and side carry handles for easy transportation
- Only 28 lbs with Battery
- Over 600 Cuts per Charge
- Shadow cut line indicator for quickly lining up cuts
- 3-1/2 in vertical capacity (base against fence)
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 419J62 |
| Fastenal | 2180581 |
-
Alternative Part Number14193062
-
UNSPSC27112748
-
IDEA Index ID14193062
-
Package DescriptionEACH
-
Standards/ApprovalsCULus Listed
-
Warranty5 Year Limited Warranty
-
Specification Sheet
