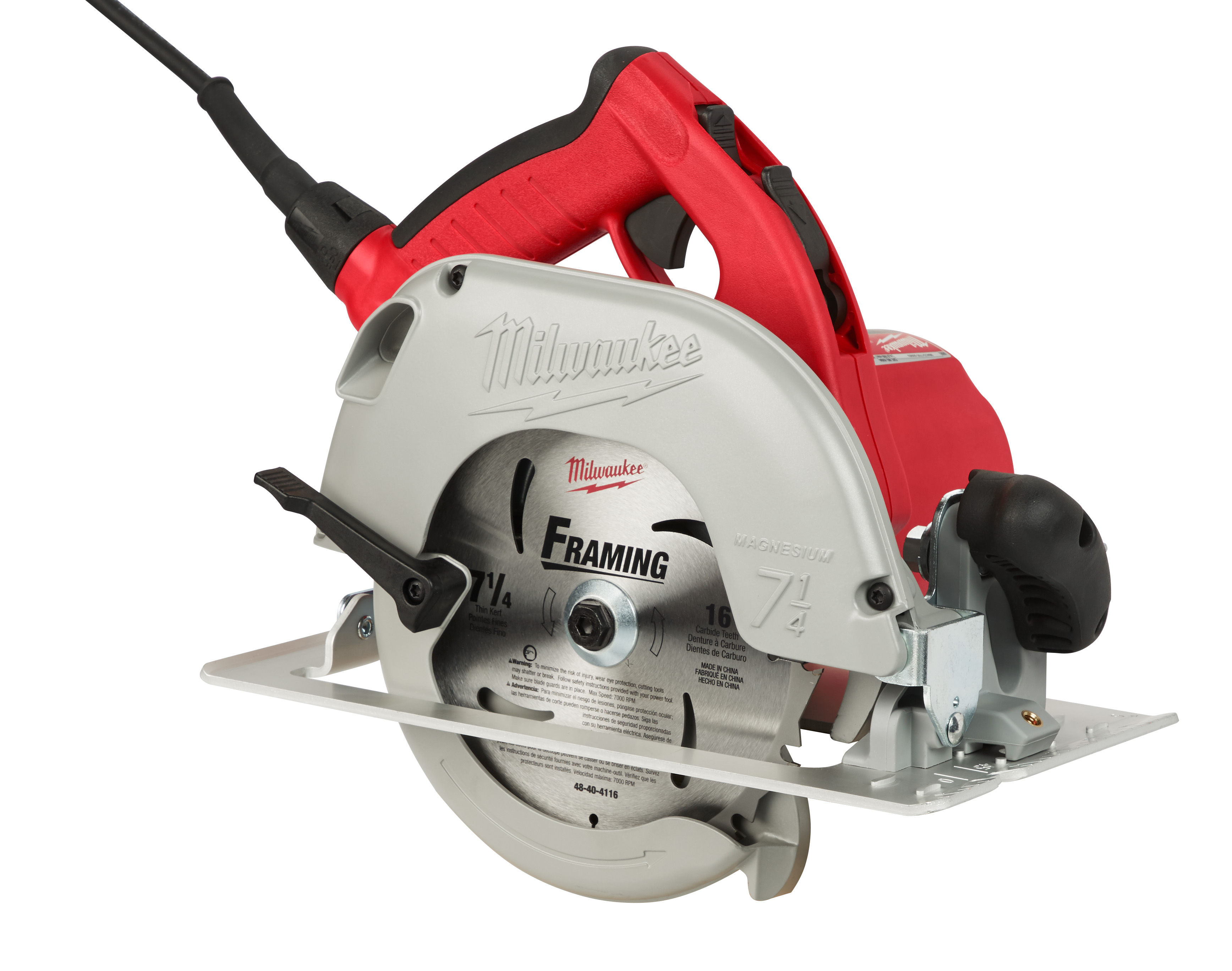

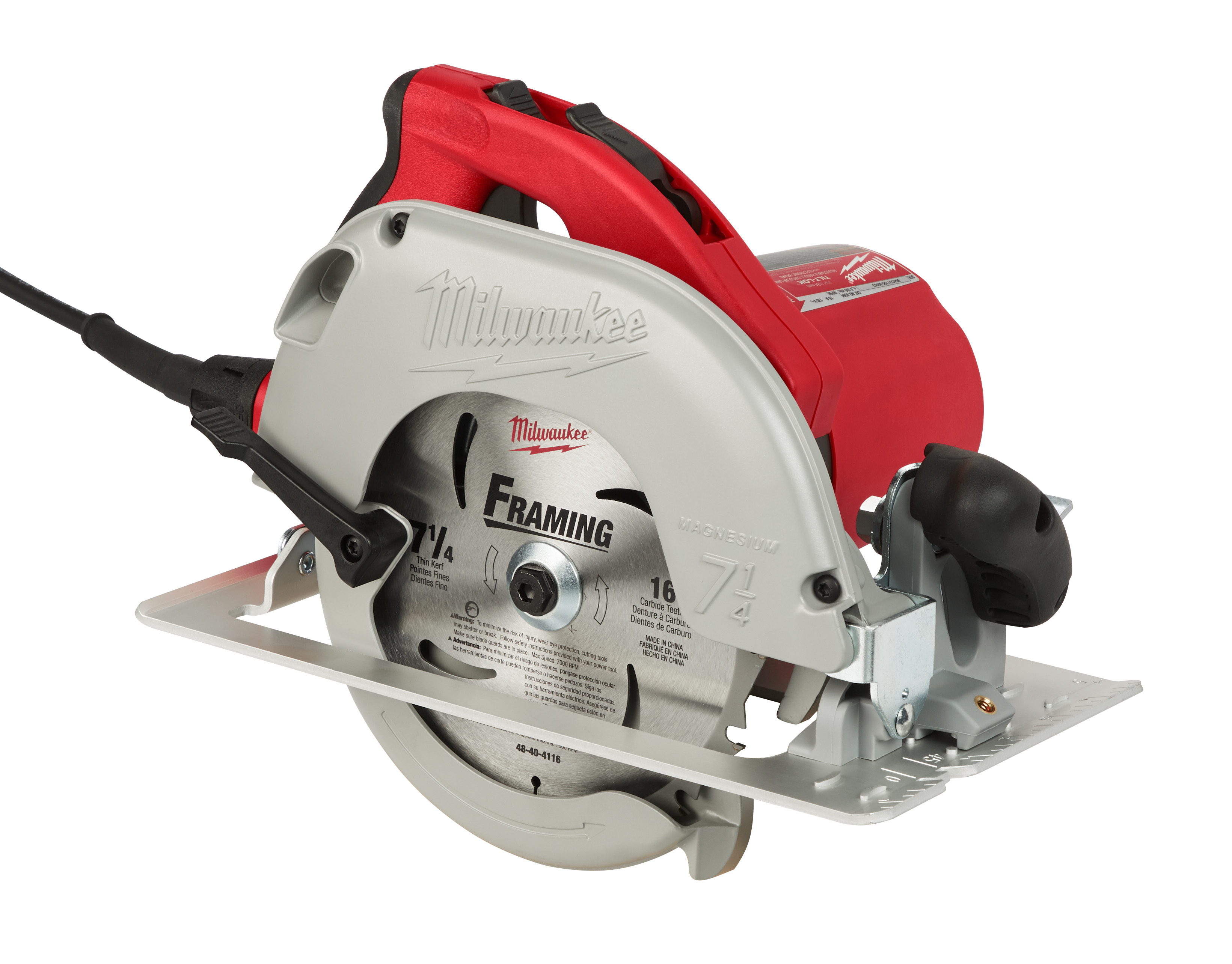

Milwaukee® 6394-21 Corded Circular Saw, 7-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg Cutting, Right Blade Side
The latest addition to Milwaukee® circular saw line features a patented adjustable main handle that provides users with maximum control and comfort. The handle position can be moved for the best ergonomic grip. Both front and rear handles have cushioned grips. A QUIK-LOK™ cord with a positive lock system, makes field replacement of the cord set easy and fast. A small button on the saw ensures positive lock. The power assisted brake stops the blade in seconds to repetitive cuts. At 10.6 lb and featuring a powerful Milwaukee® built 15 A motor, this saw provides the highest horsepower to weight ratio available in a 7-1/4 in saw. An aircraft aluminum shoe resists bending. Easy to reach depth and bevel adjustment knobs allow bevels to 50 deg.
-
BrandMilwaukee®
-
UPC045242049608
-
Manufacturer Part Number6394-21
-
CountryUSA
-
Tool/KitKit
-
Handle TypeSoft
-
Voltage Rating120 VAC
-
Cord TypeQUIK-LOK™ Double Insulated
-
Amperage Rating15 A
-
Arbor/Shank Size5/8 in
-
Horsepower3 hp
-
Cutting Angle45/50/90 deg
-
Cutting Capacity1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg
-
Housing MaterialPlastic
-
Shoe MaterialAluminum
-
Dimensions13-3/4 in L
-
Bevel Capacity50 deg
-
Speed5800 rpm
-
Blade SideRight
-
Blade Size7-1/4 in Dia

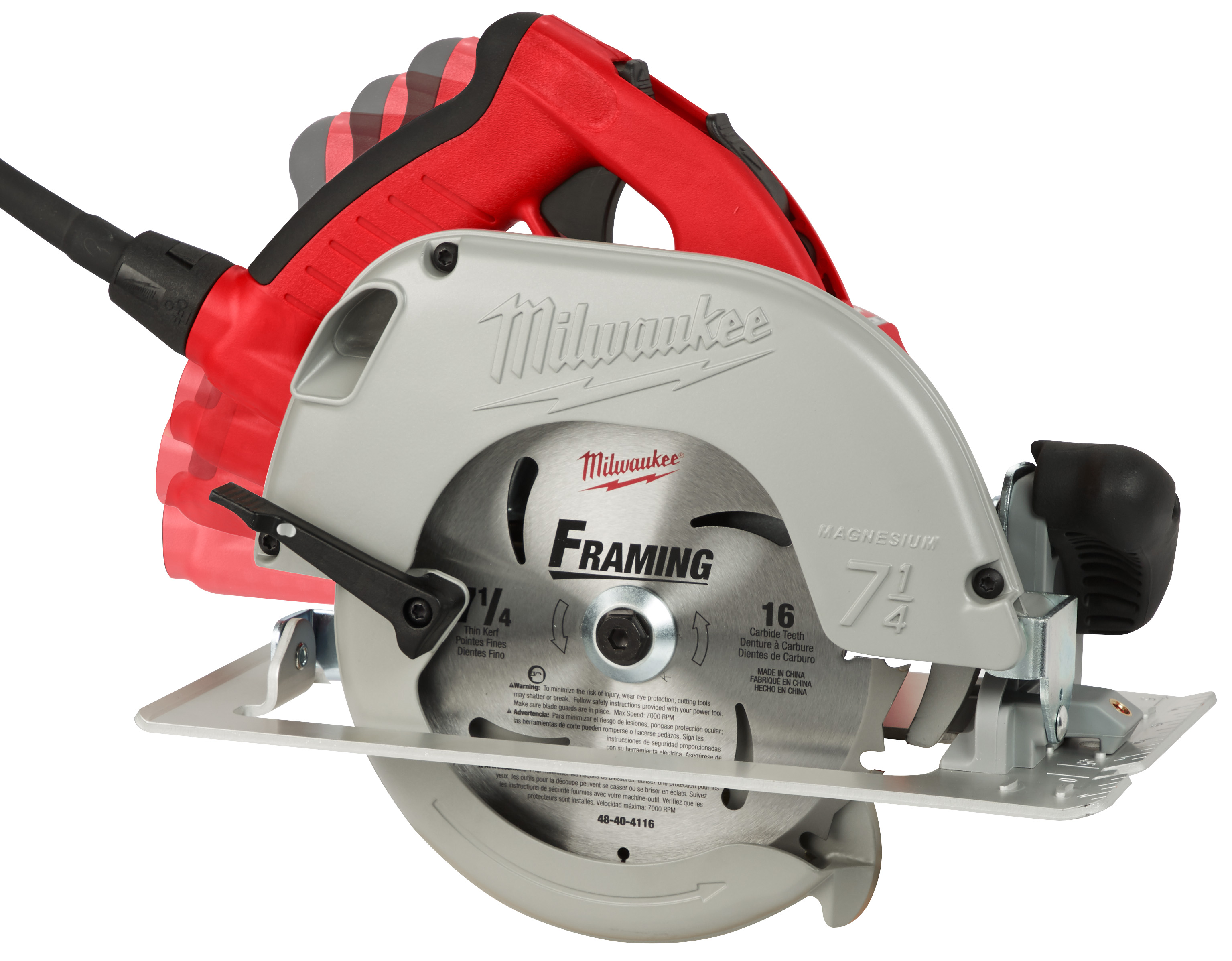

- New exclusive Tilt-Lok™ main handle adjusts to the work or most comfortable work position
- Patented power assisted electric brake stops blade in seconds
- Quik-Lok™ cord makes job site replacement fast and easy
- The handle position can be moved for the best ergonomic grip
- Both front and rear handles have cushioned grips
- A small button on the saw ensures positive lock
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6XG37 |
| Grainger | 6XG37 |
-
Alternative Part Number8566277
-
UNSPSC27112709
-
IDEA Index ID8566277
-
Package Description1/PK
-
Standards/ApprovalsCSA Certified|UL Listed
-
Warranty5 years
-
Owners/User Manual
