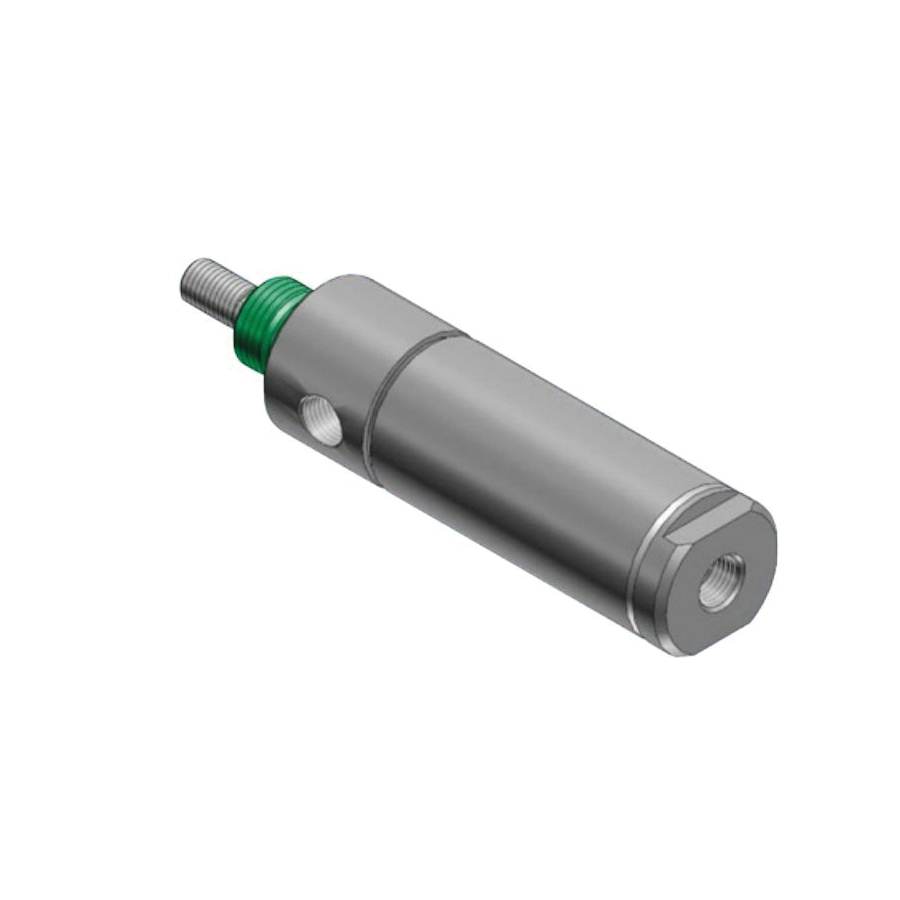

Numatics® 2500D01-03A Non-Repairable Round Line Air Cylinder, 2-1/2 in Dia Cylinder Bore, 3 in L Stroke, Double Acting Cylinder Action, Nose Mount
The m series is a stainless steel body air cylinder line that is the perfect solution for tight design budgets. This cylinder is reliable and is designed and built to maximize performance. It will exceed all of your light duty cylinder application requirements. The m series comes standard with a multitude of value-added features such as stainless steel piston rods, roll formed threads at both ends of the piston rod and pre-lubed for non-lube added service. Furthermore, Numatics® has the design capabilities to customize a product for your specific application. These are just a sample of things that make the m series the superior interchangeable round body air cylinder line.
-
BrandNumatics®
-
Manufacturer Part Number2500D01-03A
-
CountryUSA
-
Temperature Rating-10 to 165 deg F
-
Material304 Stainless Steel
-
Pressure Rating250 psi
-
TypeNon-Repairable Round Line
-
Rod Diameter5/8 in
-
Rod Thread Size1/2-20
-
Mounting TypeNose
-
SeriesM Series
-
Cylinder ActionDouble Acting
-
Cylinder Bore Size2-1/2 in Dia
-
Dimensions8.563 in L
-
Stroke Length3 in
- Competitive interchangeability with non-repairable round line cylinders
- Standard adjustable cushioning
- Equipped for magnetic position detectors
- Type 303 stainless steel rod with roll formed threads (both ends) insures corrosion resistance and a durable customer end connection
- The wear resistance and antifriction qualities of the oil impregnated sintered bronze make for an excellent guide bushing
- Head and cap are machined from aluminum alloy, unrestricted ports in conjunction with rectangular slots at the piston mating surface allow the air to work on a larger effective piston area for a smooth breakaway even at low pressures
- Cylinder body is attached to the head and cap using unique innovative assembly equipment that insures a consistent and reliable double rolled-in joint
- Drawn and polished type, 304 stainless steel cylinder body provides an excellent sealing surface for extended seal life
- The roll formed threads on both mating parts of the piston/rod assembly are sealed with Loctite Threadlocker®, torqued and then staked for a strong leak proof connection
- Pressure energized lip style piston and rod seals are wear compensating and prelubricated for millions of trouble free cycles
- Magnetic band for position indication is optional on bore sizes 3/4 to 2 in and does not affect overall length
-
UNSPSC27131701
