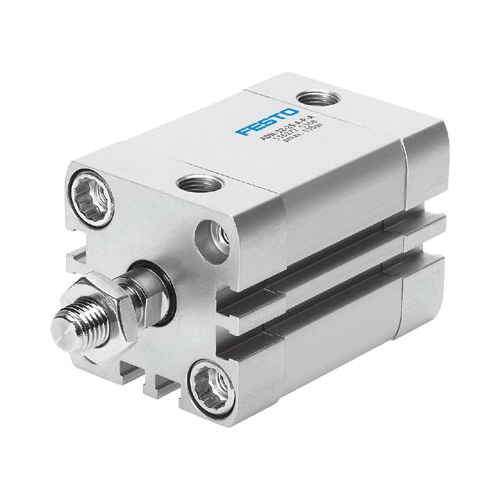

Festo 536275 ADN Basic Version Standard Compact Cylinder, 32 mm Cylinder Bore, 50 mm L Stroke, 483 Advance/415 N Return Max Force, Double Acting Cylinder Action, Through-Hole Mount
Festo 536275 ADN Basic Version Standard Compact Cylinder, 32 mm Cylinder Bore, 50 mm L Stroke, 483 Advance/415 N Return Max Force, Double Acting Cylinder Action, Through-Hole Mount
-
BrandFesto
-
Manufacturer Part Number536275
-
CountryUSA
-
Temperature Rating-20 to 80 deg C
-
FinishSmooth Anodized
-
Port SizeG1/8
-
MaterialWrought Aluminum Alloy Barrel/High Alloy Steel Piston Rod
-
Pressure Rating0.6 to 10 bar
-
Maximum Force483 Advance/415 N Return
-
Maximum Load60 g Moving Load with 0 mm Stroke/9 g Additional Load Per 10 mm Stroke
-
TypeBasic Version
-
Rod DiameterM10
-
Rod Thread SizeM10 x 1.25
-
Mounting TypeThrough-Hole
-
SeriesADN
-
Cushion TypeP
-
Cylinder ActionDouble Acting
-
Cylinder Bore Size32 mm
-
Dimensions101.2 mm L x 47 mm W x 47 mm H
-
Stroke Length50 mm
- Up to 50% less installation space than comparable standards based cylinders to ISO 15552
- Wide range of variants for customized applications
- A: Male thread
- P: Flexible cushioning rings/plates at both ends
- A: Position sensing via proximity sensor
-
Alternative Part NumberADN-32-50-A-P-A
-
UNSPSC24111800
-
Standards/ApprovalsISO 21287 and RoHS Compliant
-
