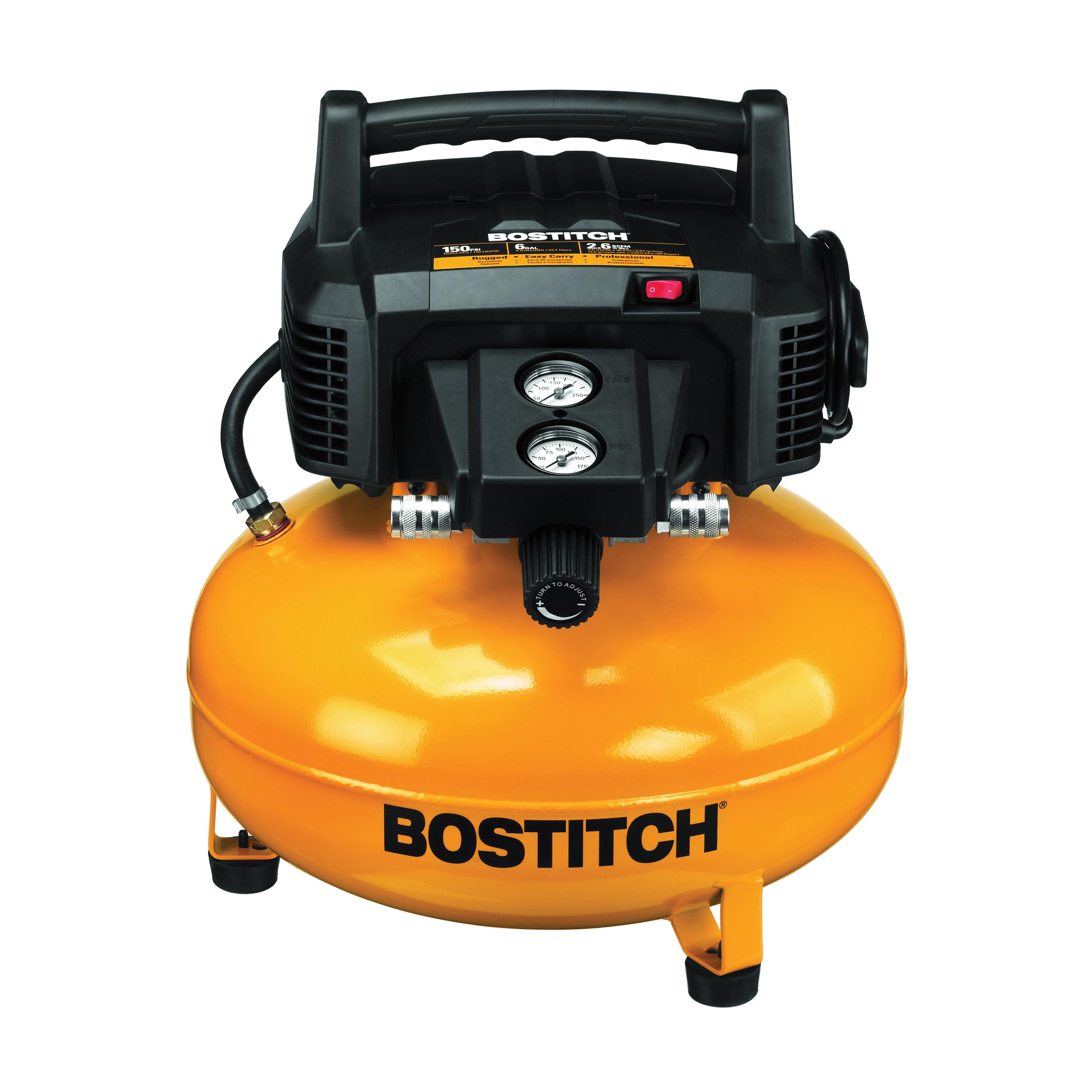

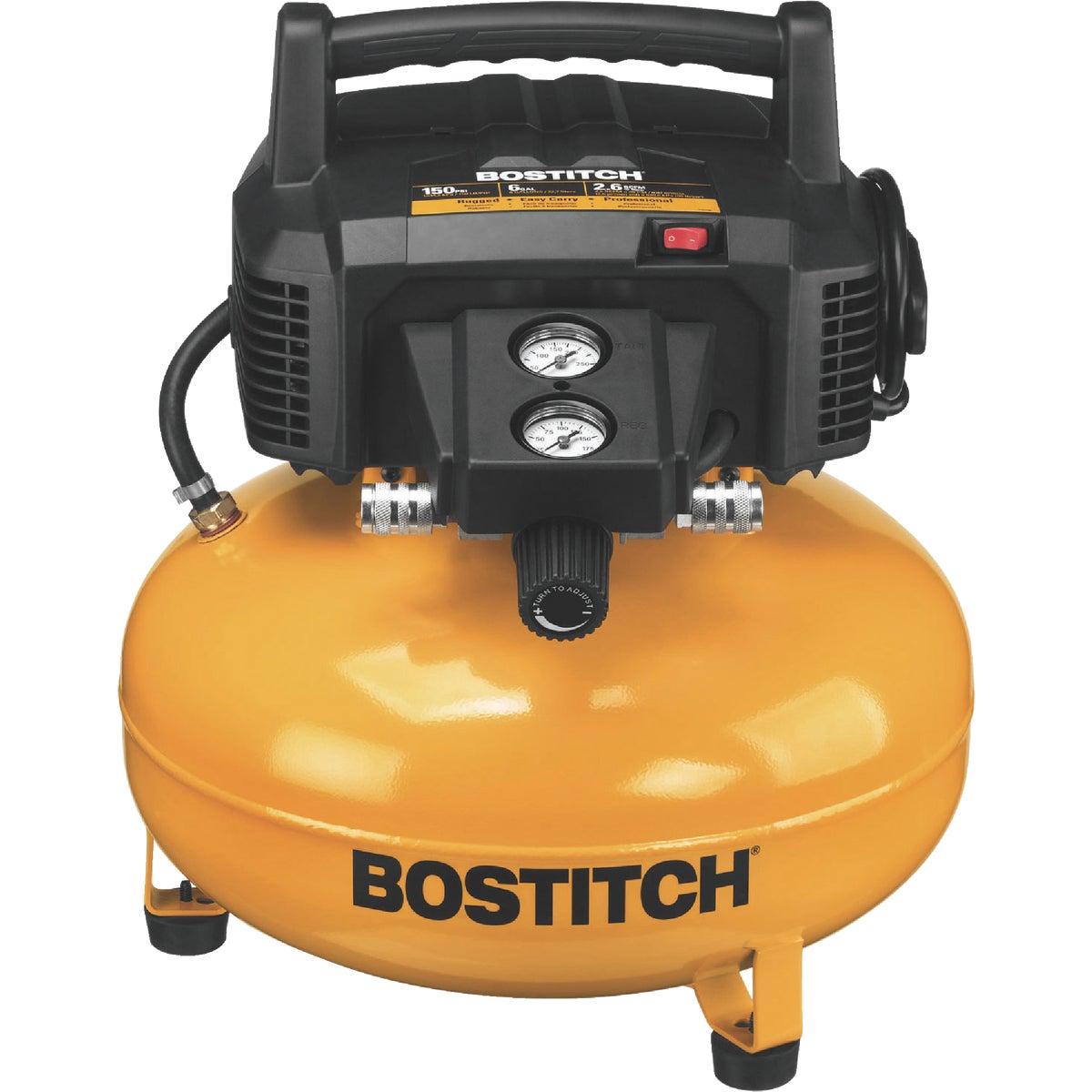

Bostitch® BTFP02012 Oil Free Portable Electric Air Compressor, 3.7 scfm at 40 psi Flow Rate, 0.8 hp, 150 psi Pressure, 6 gal Tank Vertical/Pancake Tank
The Bostitch® BTFP02012 6 gal pancake compressor features a 150 max PSI 6 gal tank (22.7 L) and 2.6 scfm delivered at 90 psi pump winch enable long tool run time with quick recovery. It offers along life oil free, maintenance free pump for convenient use, along with a Bostitch® high efficiency motor for easy start up in cold weather or extension cord application. This compressor operates at 78.5 dBA operational noise level for a quiet work environment and the 29 lb weight and narrow tank diameter make unit easy to carry/store. The Bostitch® high flow regulator and couplers are designed to maximize air tool performance with two universal couplers to easily support two users. The couplers are inflator to standpipe, to prevent twisting and the console cover is removable to allow easy repair of controls. It also offers a convenient cord wrap for easy storage.
-
BrandBostitch®
-
UPC077914061144
-
Manufacturer Part NumberBTFP02012
-
CountryUSA
-
MaterialMetal
-
Pressure Rating150 psi
-
Flow Rate3.7 scfm at 40 psi
-
TypeOil Free
-
Voltage Rating120 VAC
-
Amperage Rating10.5 A
-
Horsepower0.8 hp
-
Overall Height19.2 in
-
Overall Length17 in
-
Overall Width16.8 in
-
Tank Capacity6 gal
-
Tank TypeVertical/Pancake
- 78.5 dBA operational noise level for a quiet work environment
- 29 lb weight makes unit easy to carry and store
- Long life oil-free, maintenance-free pump for convenient use
- 150 psi max 6 gal tank and 2.6 scfm delivered at 90 psi pump enable long tool run time with quick recovery
- Bostitch® high efficiency motor for easy start up in cold weather or extension cord application 14 ga or larger, 50 ft or less
- Bostitch® high flow regulator and couplers to maximize air tool performance
- Two universal couplers to easily support two users
| Cross-Reference Number |
|---|
| 301376 |
-
UNSPSC40151601
-
Package Description1/PK
-
Warranty1 Year Limited
-
Owners/User Manual
