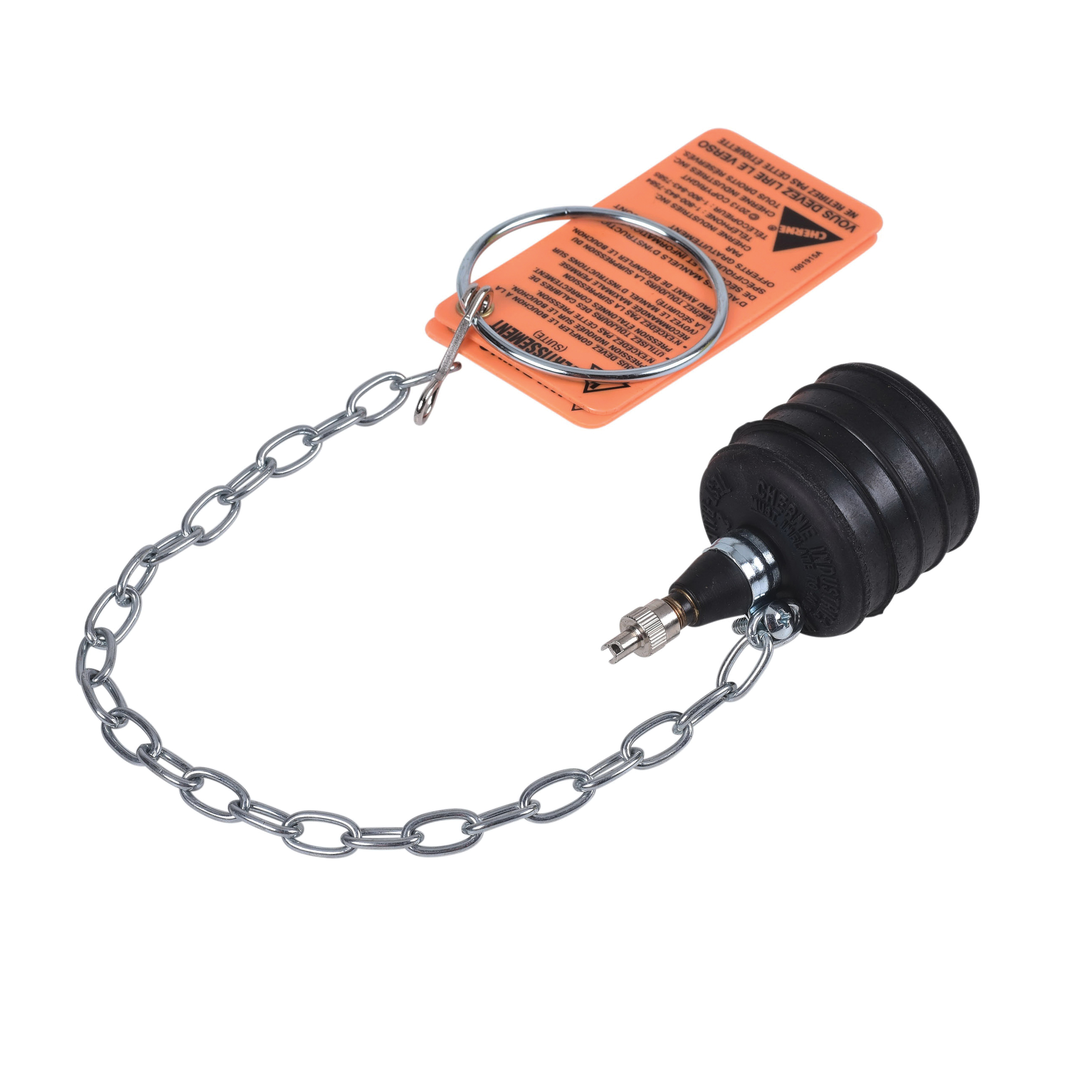

Cherne® Test-Ball® 270024 Pneumatic Pipe Plug, 2 in Pipe, 13 psi Working, Natural Rubber
Cherne® Single-Size Test-Ball® Plugs are expandable rubber test plugs designed to test drain, vent and waste systems in every type of pipe. Utilizing a standard tire air fitting for easy connections, its inflatable design can be inserted through a test tee to seal out-of-round pipe and hard-to-access openings. These plumbing test plugs are available in a variety of nominal sizes to accommodate your DWV testing needs. Cherne Industries is a global leader in pipe plug, blocking and testing.
-
BrandCherne®
-
UPC675115270022
-
Manufacturer Part Number270024
-
CountryUSA|Canada
-
Pipe Size2 in
-
MaterialNatural Rubber
-
TypePneumatic
-
Working Pressure13 psi
-
Dimensions3.34 in L x 1.78 in D
- 2 in nominal size
- Tests DWV systems at pressures up to 13 PSI/30 ft
- Natural rubber body provides excellent expansion
- Inflatable design can be inserted through a test tee to seal out-of-round pipe and hard-to-access openings
- Utilizes a standard tire air fitting for easy connections

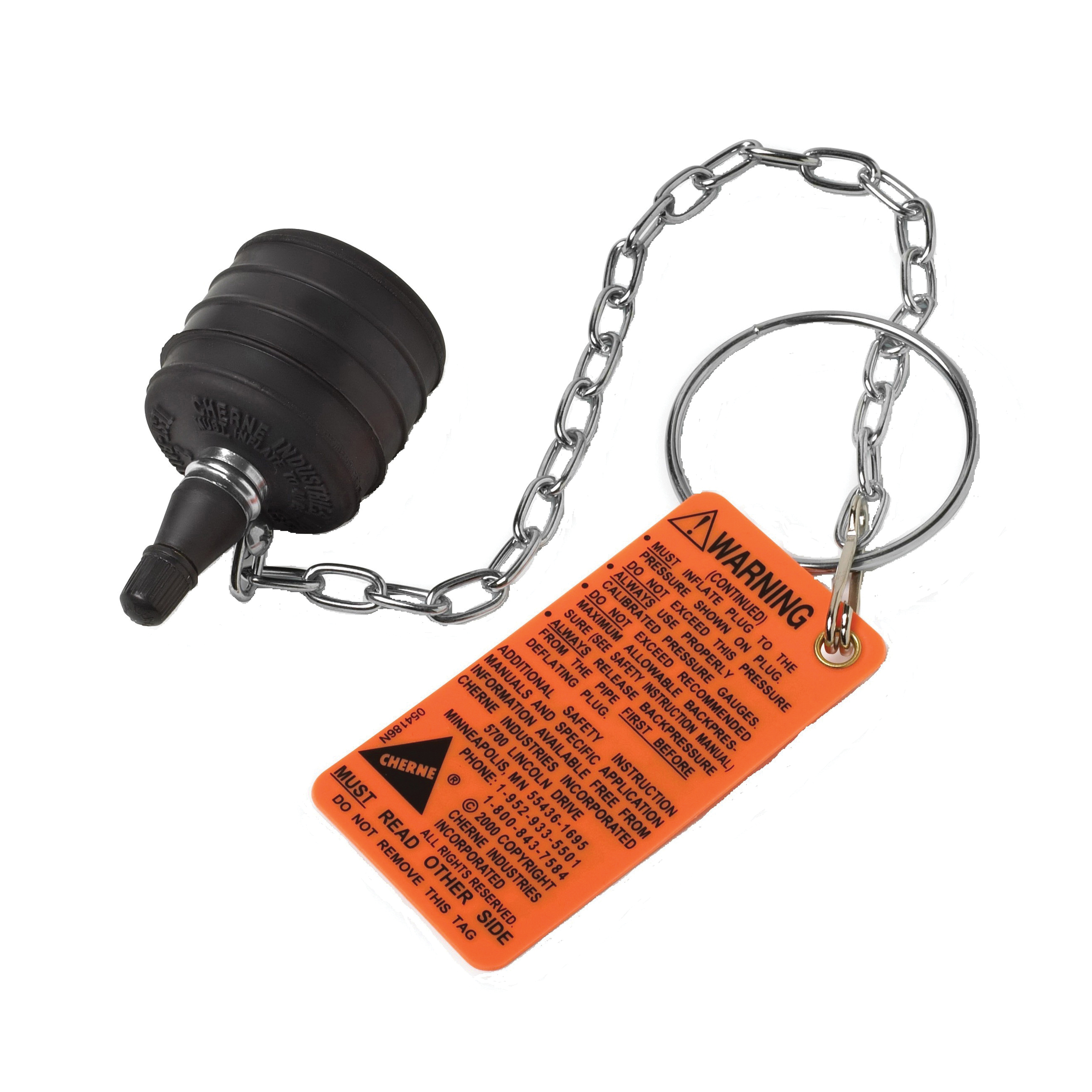

- Ring and chain assembly helps prevent the plug from being drawn into DWV systems during tests
- Zinc plated steel chain and ring handle acts as an anchor to prevent plug from sliding down a line
- Fits easily through test tees, sanitary tees, floor drains and other tight situations
- Broader expansion range than mechanical plugs
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | C270024 |
-
UNSPSC40141700
-

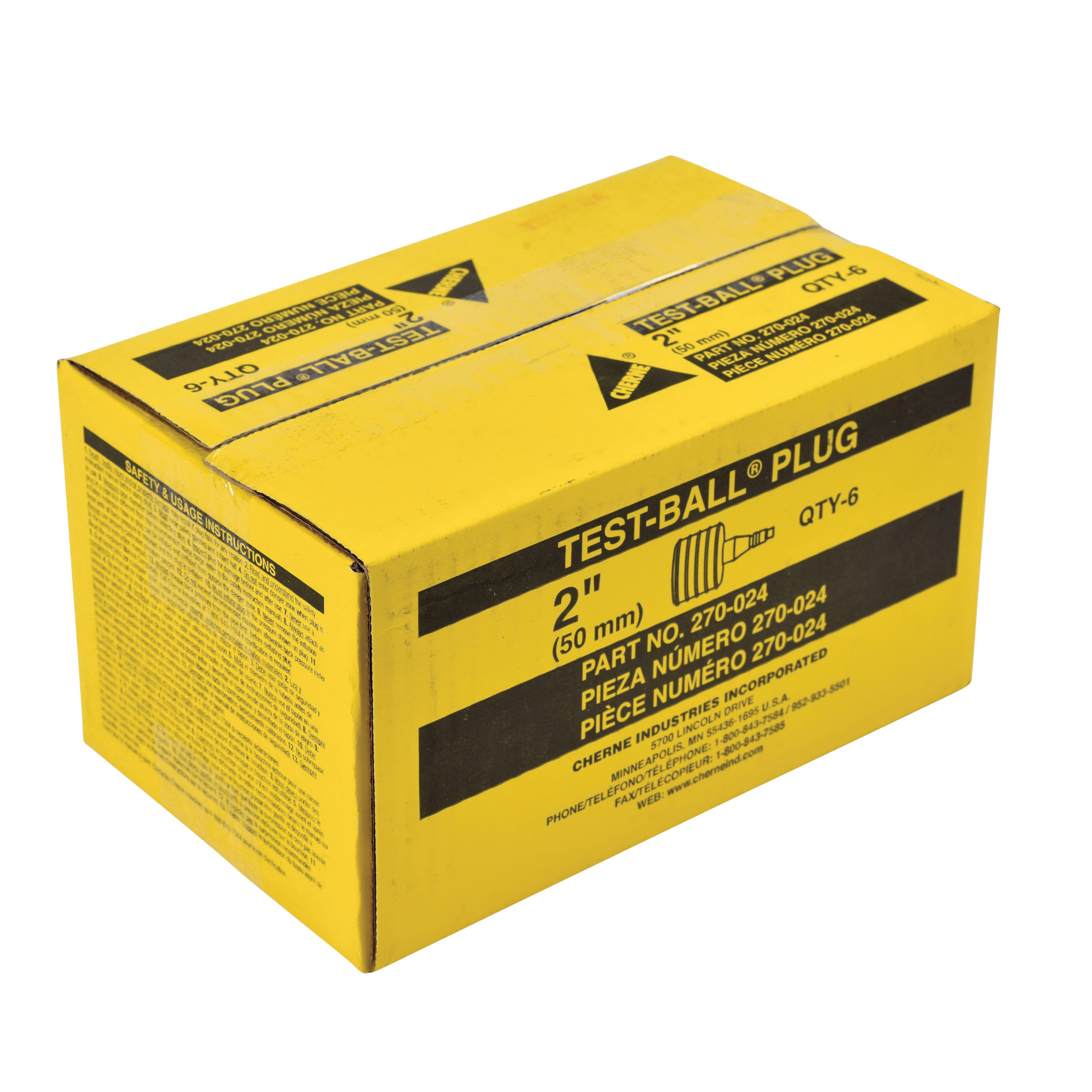

Package DescriptionBOX
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
