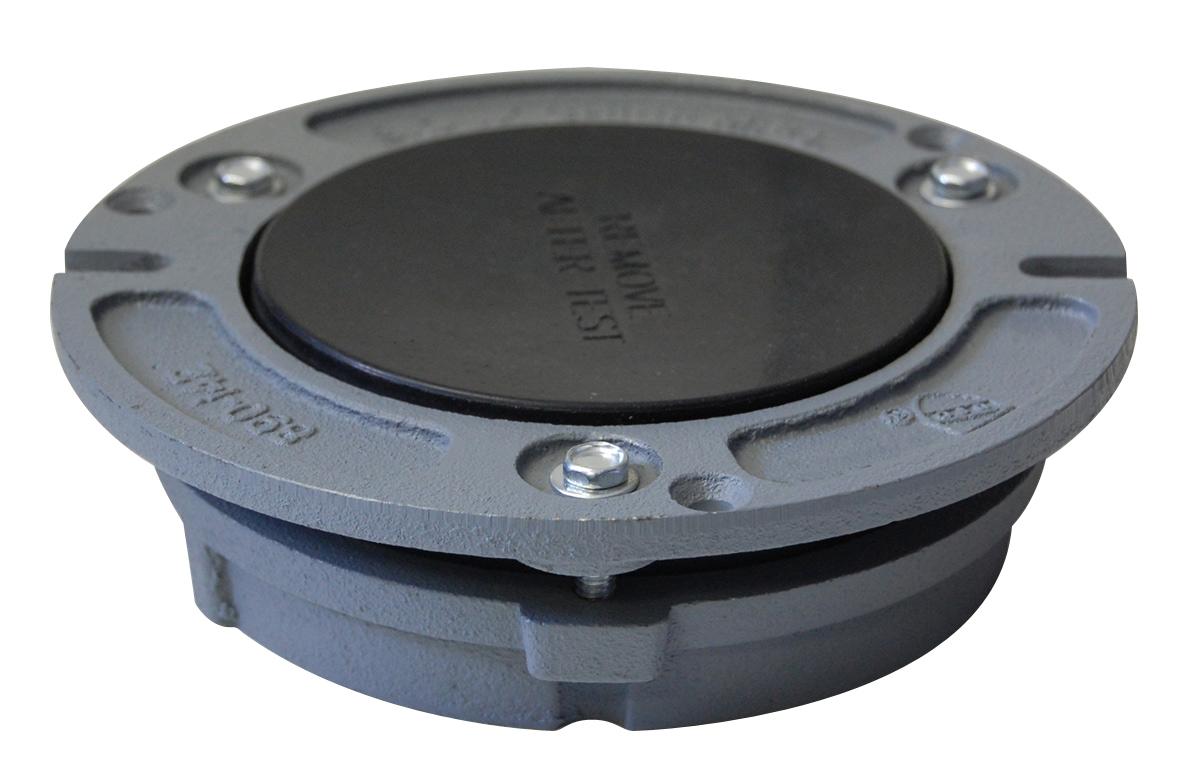

Sioux Chief 890-I42 Closet Flange, 4-3/8 in ID x 7 in OD, Cast Iron, Import
Installed closet flanges shall be Sioux Chief 890 Series cast iron closet flange. Closet flange shall have three screw holes for securing to floor, and two closet bolt slots. Internal neoprene compression gasket shall create seal when lock ring is tightened via three stainless steel bolts. Flange shall have an integral neoprene test cap and be UPC listed.
-
BrandSioux Chief
-
UPC739236303622
-
Manufacturer Part Number890-I42
-
CountryUSA|Canada
-
MaterialCast Iron
-
Series890
-
Inside Diameter4-3/8 in
-
Domestic/ImportImport
-
Outside Diameter7 in
- Fits over 4 in cast iron pipe - Perfect for retrofit or remodel applications
- Integral test cap removes with utility knife after test
- Two-piece cast iron body with compression gasket connection
- Integral neoprene cover/cap removes with utility knife after test
- Cast iron flange top/compression locks ring
- Neoprene gasket/test cap
- Stainless steel locks ring bolt
- 5 in screw center, 4-3/8 in test cap dia, 2 in overall H
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | S890I42 |
-
UNSPSC40174802
-
Package DescriptionEACH
-
Standards/ApprovalsUPC Listed
-
Specification Sheet
-
Owners/User Manual
