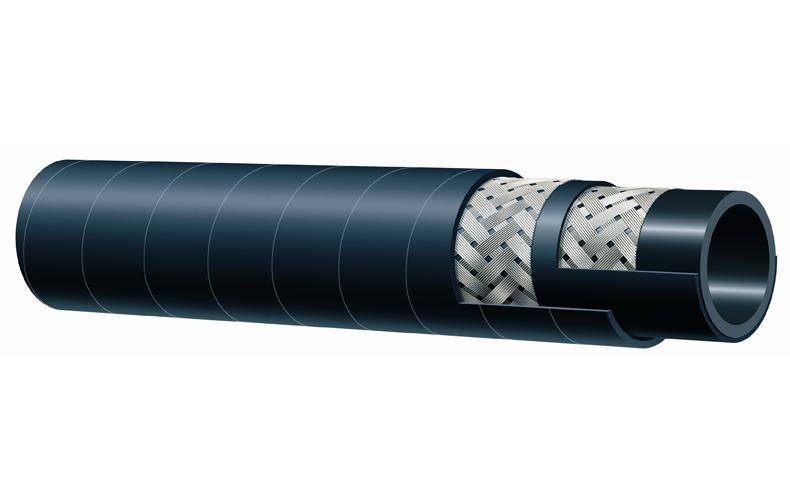

Spiraduct 3/4" STEAM HOSE SPI T-340-AA-075
GENERAL APPLICATIONSSaturated steam applications up to 270 PSI and 410°FThawing and de-icing of outdoor pipes and other equipment during cold temperaturesHigh pressure industrial equipment cleaning at refineries, processing plants and shipyardsCONSTRUCTIONTube — Black, conductive EPDM.Reinforcement — Single high tensile steel wire braid (1/2" Size), Two high tensile steel wire braids (3/4" to 3"). Cover — Red or black pin-pricked EPDM.SERVICE TEMPERATURE RANGE-40°F (-40°C) to +410°F (+2 1 0°C)BRANDINGALFAGOMMA ITALY T3 4 0 18 BAR (2 7 0 PSI) STEAM - DRAIN AFTER USEFEATURES AND ADVANTAGESHighest Pressure Capabilities — Handles pressures up to 270 PSI, higher than other steam hoses which range up to 250.Pin Pricked Cover — Vents trapped vapors to help prevent "popcorning."Heat Resistant — Specially formulated, heat resistant EPDM tube and cover. Capable of transferring saturated steam up to +410°FConductive Tube — Helps dissipate potential charge to ground, reducing the risks of shocks.Highly Durable Cover — Heat, weathering, abrasion and ozone resistant cover designed to perform in highly demanding, steam hose applications.
-
BrandALFAGOMMA
-
UPC822353166352
-
Manufacturer Part NumberT340AA075X50
-
CountryUSA
-
Temperature Rating-40 to 175 deg F
-
MaterialEPDM
-
ColorBlack
-
Nominal Size1/2 in
-
SeriesT340AA
-
Working Pressure270 psi
-
Domestic/ImportImport
-
Length50 ft
- Highest Pressure Capabilities
- Handles pressures up to 270 PSI, higher than other steam hoses which range up to 250
- Pin Pricked Cover
- Vents trapped vapors to help prevent
- Conductive Tube
- Helps dissipate potential charge to ground, reducing the risks of shocks
- Highly Durable Cover
- Heat, weathering, abrasion and ozone resistant cover designed to perform in highly demanding, steam hose applications
-
Package DescriptionEACH
-
Specification Sheet
