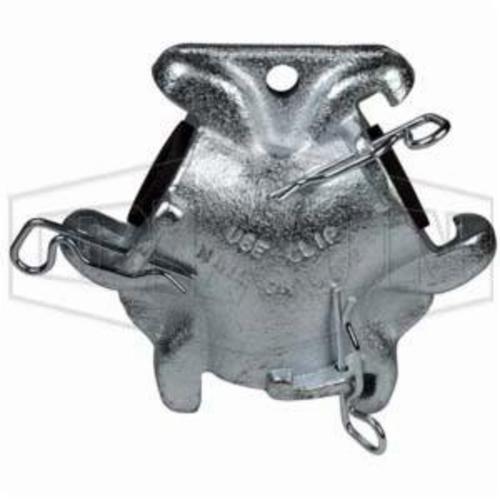

Dixon® AM10 Air King™ Triple Connection Coupling, Iron, Domestic
Dixon® AM10 Air King™ Triple Connection Coupling, Iron, Domestic
-
BrandDixon®
-
Manufacturer Part NumberAM10
-
CountryUSA
-
MaterialIron
-
Pressure Rating150 psi
-
TypeTriple Connection
-
SeriesAir King™
-
Dimensions4-9/32 in L x 3-3/4 in H
-
Domestic/ImportDomestic
- Air king meets pressure requirements as specified in A-A-59553 commercial item description superseding mil Spec.WWC-633D
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Only one air king safety clip or wire type retainer is required for each air king universal coupling
- Air king is for air and water service only
- Supplied with AWR4 rubber washer
- Rubber seal
- 150 psi at 70 deg f pressure
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- Pressure rating given at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | DAM10 |
| Ferguson | DAM10 |
| Ferguson | DAM10 |
-
UNSPSC40141734
-
Package Description25/BX
-
