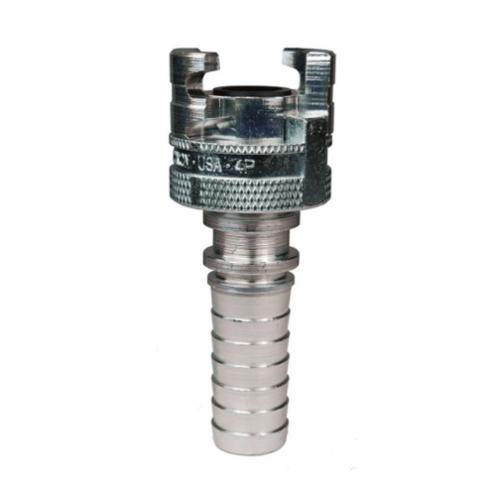

Dixon® 4PS6 Dual-Lock™ P Series Interchange Thor Interchange Coupler, 1/2 x 3/4 in Nominal, Hose Barb x Coupler End Style, Steel, Trivalent Chrome
Dixon® 4PS6 Dual-Lock™ P Series Interchange Thor Interchange Coupler, 1/2 x 3/4 in Nominal, Hose Barb x Coupler End Style, Steel, Trivalent Chrome
-
BrandDixon®
-
Manufacturer Part Number4PS6
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
FinishTrivalent Chrome
-
MaterialSteel
-
Pressure Rating300 psi
-
TypeInterchange
-
Nominal Size1/2 x 3/4 in
-
SeriesDual-Lock™ P Series
-
Dimensions1.55 in OD
-
Length3.95 in
-
End StyleHose Barb x Coupler
- Machined components are manufactured using solid bar stock
- Phosphor bronze retaining ring and spring maximize corrosion resistance and extend service life
- Nitrile (Buna-N) seals are standard
- Interchanges with Thor PHC-Series, National series 'A' and Dixon dual-lock
- Zinc cast sleeve
- 2600 psi burst
-
UNSPSC40183100
-
Package Description25/BX
-
Standards/ApprovalsRoHS Compliant
-
