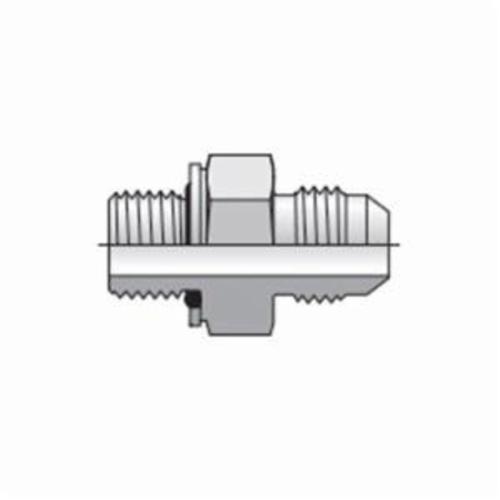

Parker 1"MALE STUD CONNECTOR PAR 16-F-4-OM-XS
Parker's 37 deg flare JIC tube fittings and adapters, Triple-Lok®, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.
-
BrandParker®
-
Manufacturer Part Number16F4OMXS
-
CountryUSA
-
FinishChromium-6 Free
-
MaterialSteel
-
Fitting/Connector TypeAdapter
-
Pressure Rating4000 psi
-
TypeStraight
-
Nominal Size1 in x 1-11
-
Hex Size46 mm
-
SeriesF4OMX Triple-Lok®
-
Length53.6 mm
-
End Style37 deg Male JIC Flare x Male BSPP
- Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance
- Vast selection of port end options, including SAE straight thread O-ring boss (ORB), NPTF, BSPP-ED, BSPP O-ring retaining ring (ORR), BSPP, BSPT, ISO 6149, metric O-ring retaining ring (ORR) and metric-ED
- Parker's robust port stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly mistake-proof
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hrs without red rust, lasting up to 1000 as found by an independent test facility
- Stainless steel nuts have a coating to prevent galling
- 90 durometer nitrile O-ring
- 1-5/16-12 UN/UNF-2A tube end
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 823PH8 |
-
UNSPSC40183109
-
Package Description10/PC
-
Standards/ApprovalsSAE J514
